Outdoor Unit - RK(X)S20-35G2V1B, ARXS20-35G2V1B SiBE04-808_B

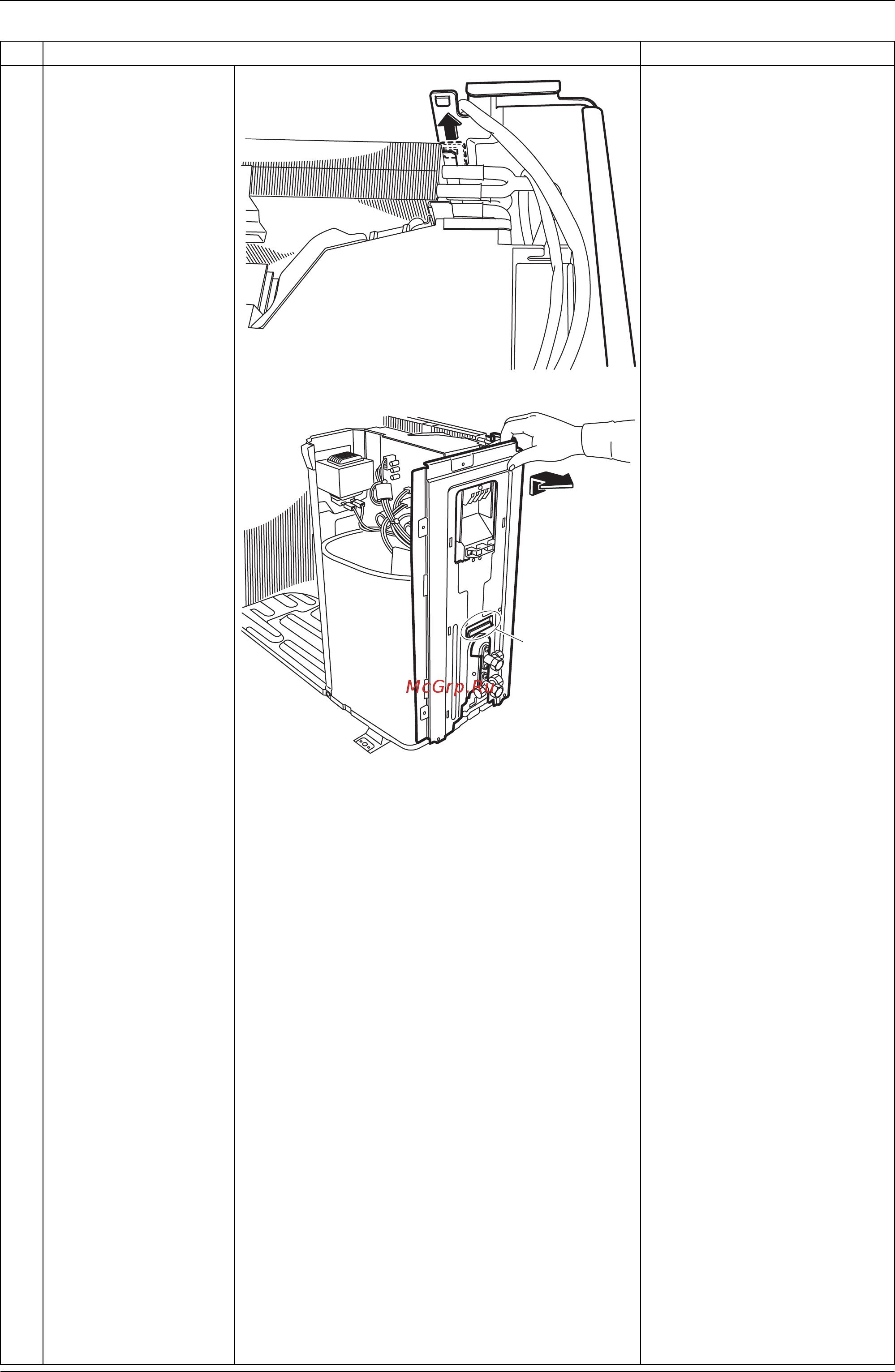

193 Removal Procedure
6
Unfasten the hook on
the rear side.
When reassembling, make
sure to fit the hook.
7
Lift up the right side
panel and remove it.
When reassembling, make
sure to fit the hook.
Step
Procedure Points
(R7212)
(R7213)
Hook
