Daikin FTXS35G2V1B [268/319] Removal of thermistors
![Daikin FTXS20G2V1B [268/319] Removal of thermistors](/views2/1761734/page268/bg10c.png)
Outdoor Unit - RK(X)S42G2V1B, ARXS42G2V1B SiBE04-808_B
257 Removal Procedure

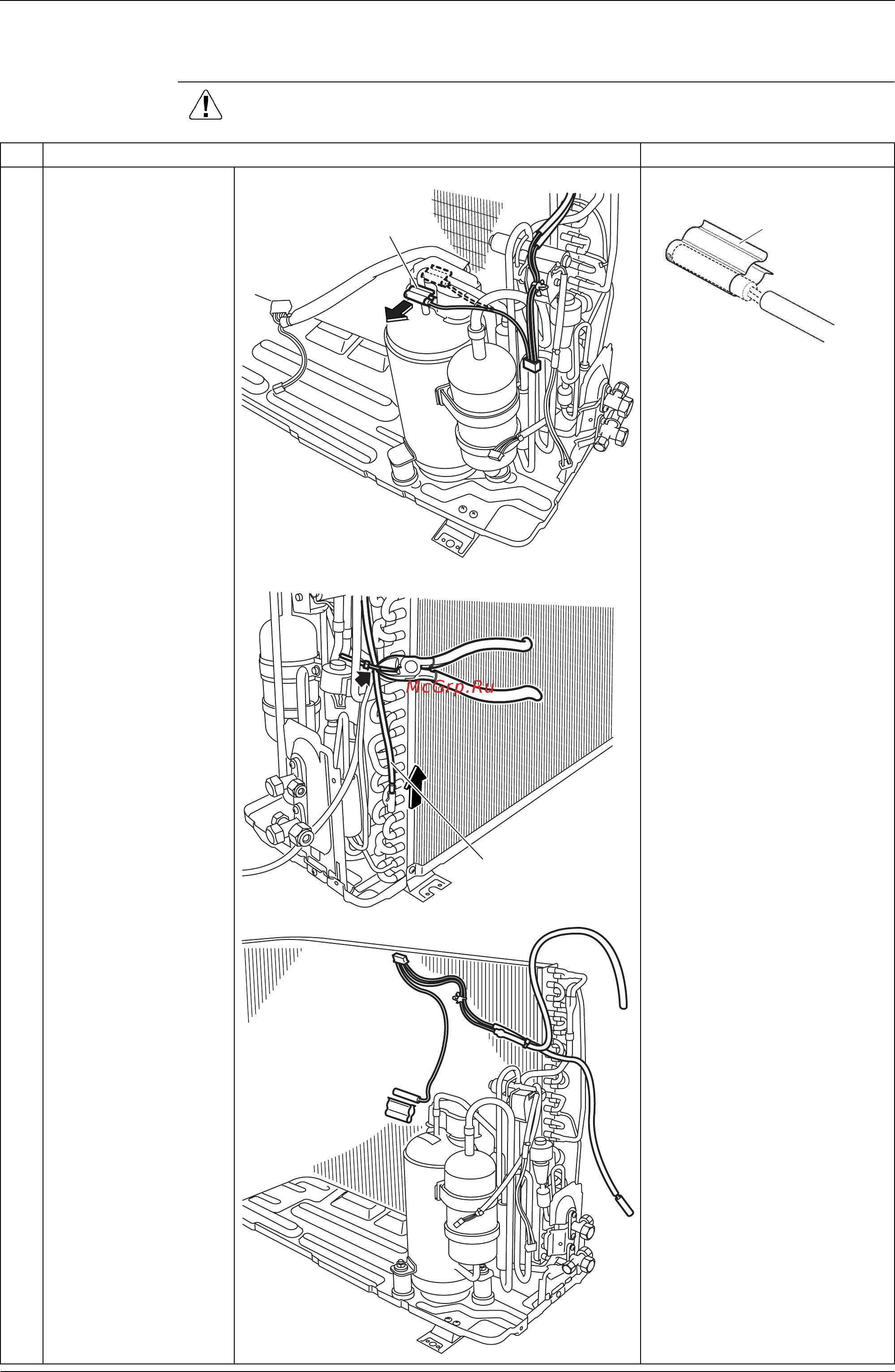

4.6 Removal of Thermistors
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Release the discharge
pipe thermistor.
Be careful not to lose the clip
for the thermistor.
2
Cut the clamp and pull
out the outdoor heat
exchanger thermistor.
3
The thermistors for
outdoor temperature /
discharge pipe /
outdoor heat exchanger
are united as one
assembly.
4
The figure shows the
arrangement of the
thermistors.
(R8192)
Discharge pipe thermistor
(R12279)
Clip
(R8193)
Outdoor heat
exchanger thermistor
(R8194)
