SiBE04-808_B Outdoor Unit - RK(X)S42G2V1B, ARXS42G2V1B
Removal Procedure 240
4. Outdoor Unit - RK(X)S42G2V1B, ARXS42G2V1B

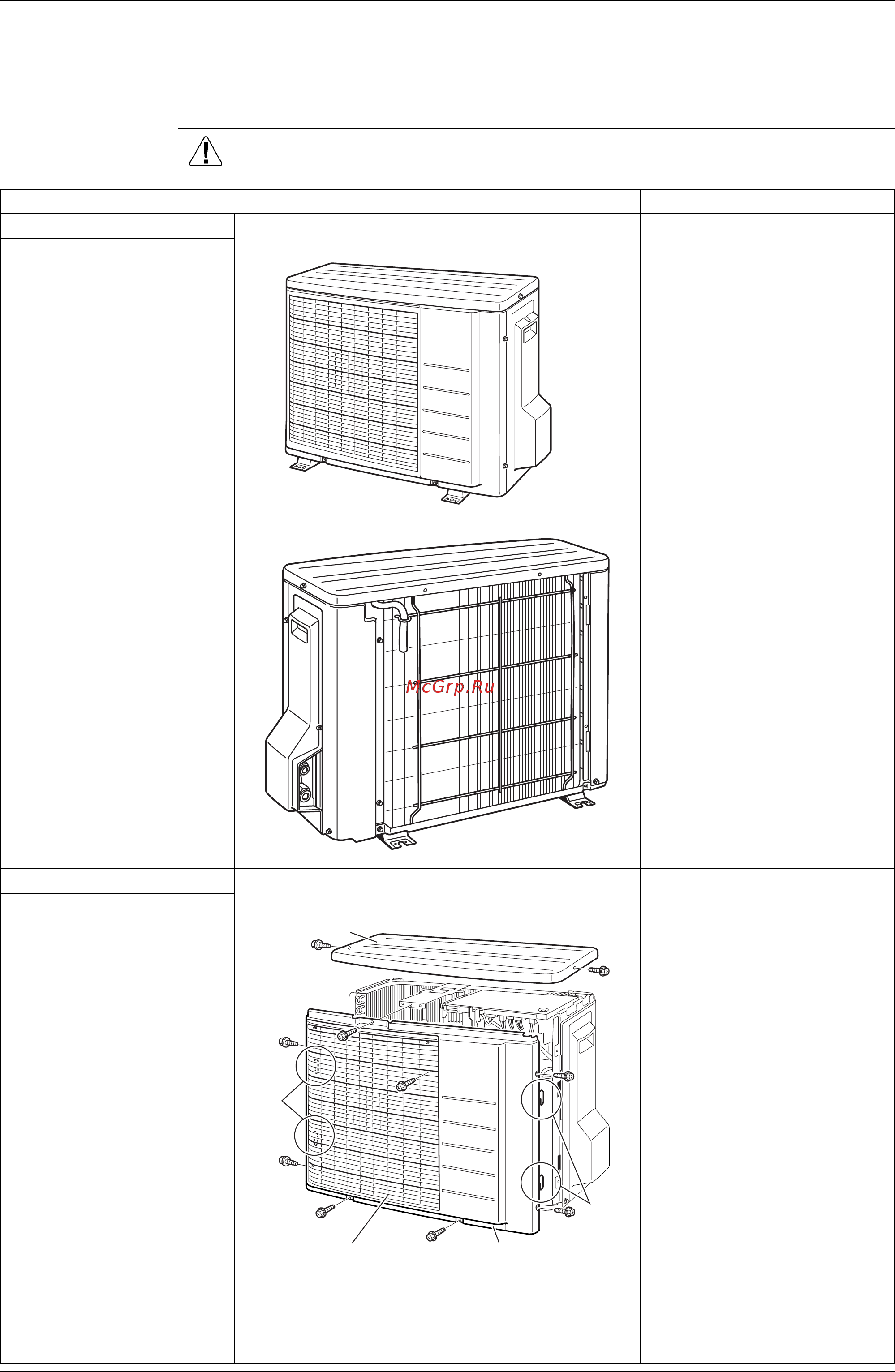

4.1 Removal of Outer Panels
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Appearance features
2. Remove the panels.
1
Remove the 2 screws
to remove the top
panel, and 8 screws to
remove the front panel.
The front panel has 4 hooks.
DAIKIN
INVERTER
(R7186)
(R12281)
(R9363)
Top panel
Hooks
Hooks
Discharge grille
Front panel
