Outdoor Unit - RK(X)S20-35G2V1B, ARXS20-35G2V1B SiBE04-808_B
187 Removal Procedure
5

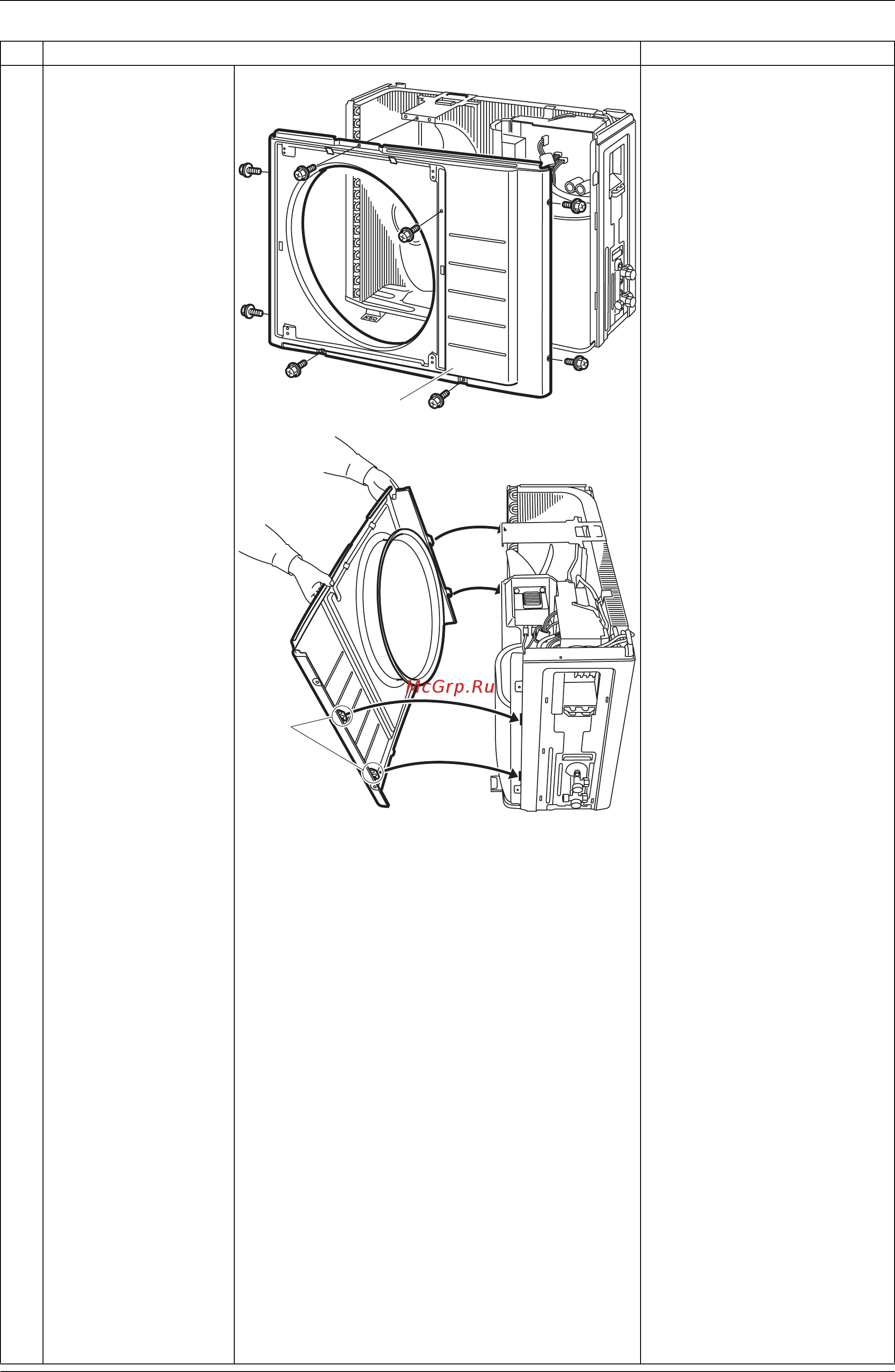

Remove the 8 screws
of the front panel.
6
Unfasten the hooks.
Pull and remove the
front panel.
The front panel has 4 hooks.
Step
Procedure Points
DAIKIN
INVERTER
(R7194)
Front panel
(R7195)
Hooks
