![Daikin FTXS35G2V1B [287/319] Lift and remove the electrical box](/img/pdf.png)
Daikin FTXS35G2V1B [287/319] Lift and remove the electrical box
![Daikin FTXS42G2V1B [287/319] Lift and remove the electrical box](/views2/1761734/page287/bg11f.png)
SiBE04-808_B Outdoor Unit - RK(X)S50G2V1B, ARXS50G2V1B
Removal Procedure 276
13

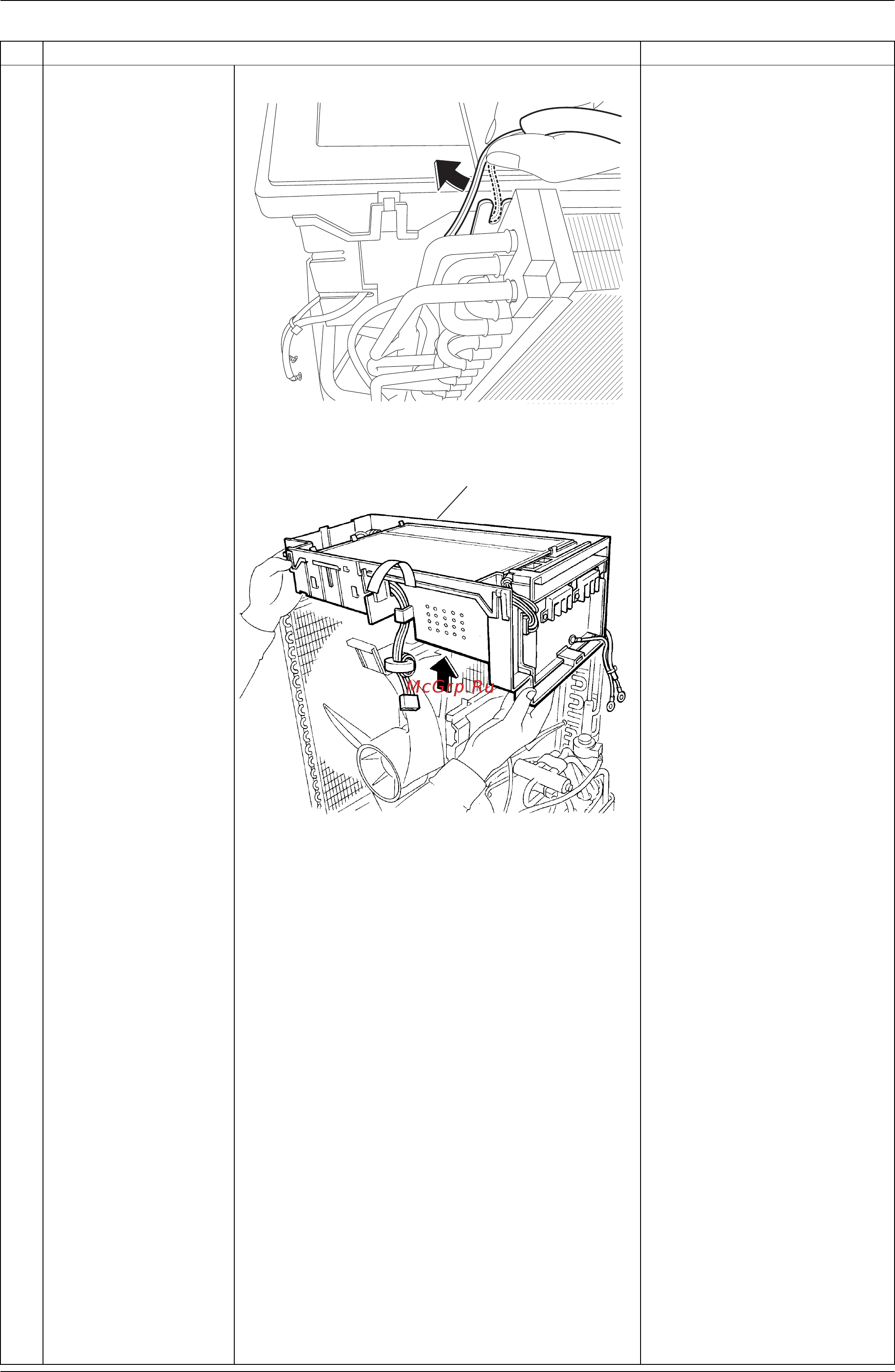

Release the harness of
the outdoor
temperature thermistor
from the hook.
14
Lift and remove the
electrical box.
Step
Procedure Points
(R9403)
(R5279)
Electrical box
