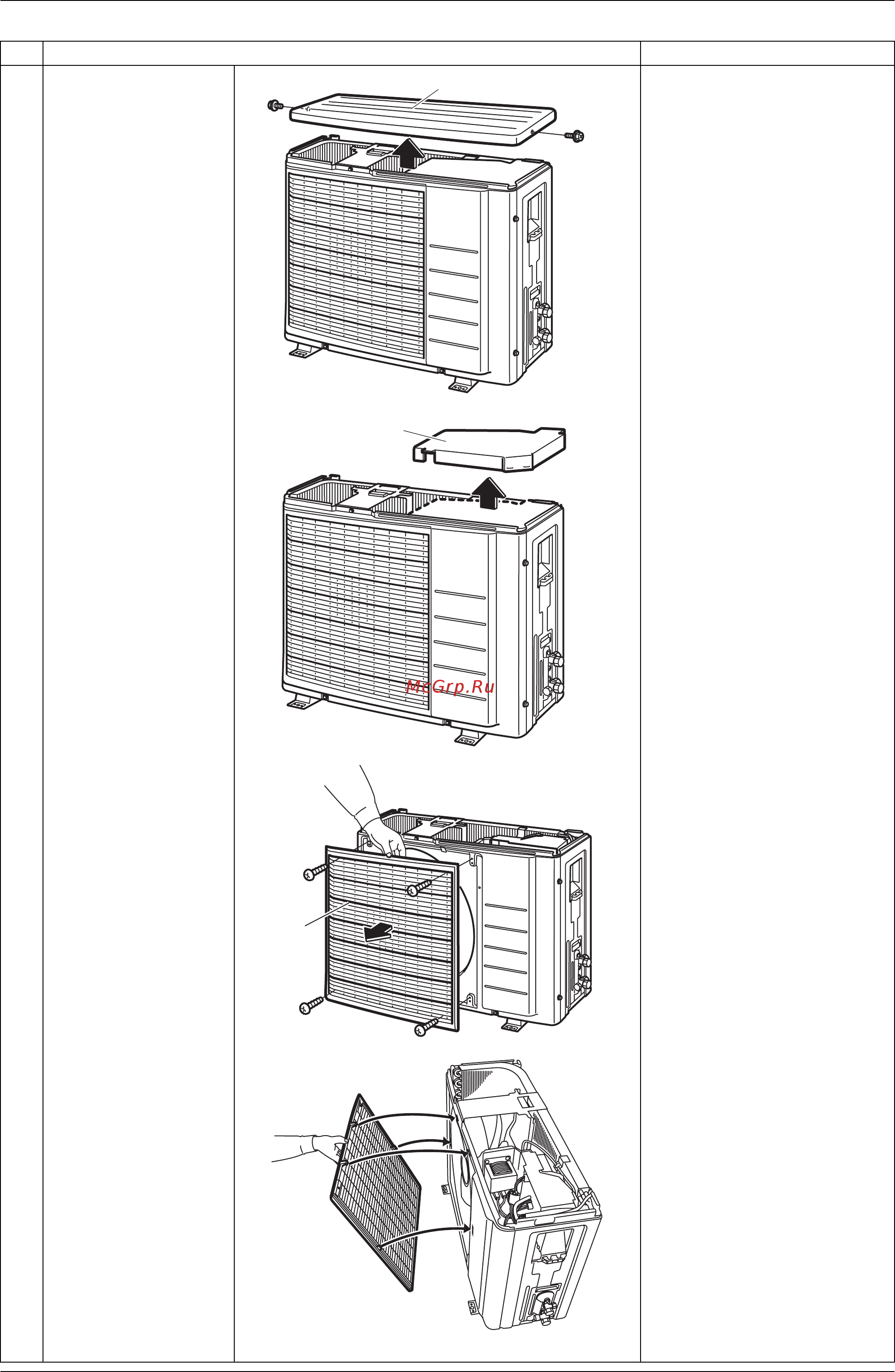

SiBE04-808_B Outdoor Unit - RK(X)S20-35G2V1B9, ARXS20-35G3V1B
Removal Procedure 212
2
Remove the 2 screws
and lift the top panel.
3
Remove the drip proof
plate.
4
Remove the 4 screws
and remove the
discharge grille.
The discharge grille has 4
hooks.
Step
Procedure Points
DAIKIN
INVERTER
Top panel
(R7190)
DAIKIN
INVERTER
(R7191)
Drip proof plate
DAIKIN
INVERTER
(R7192)
Discharge
grille
(R7193)
