SiBE04-808_B FTXS20/25/35/42/50G2V1B
Operation Manual 80
26

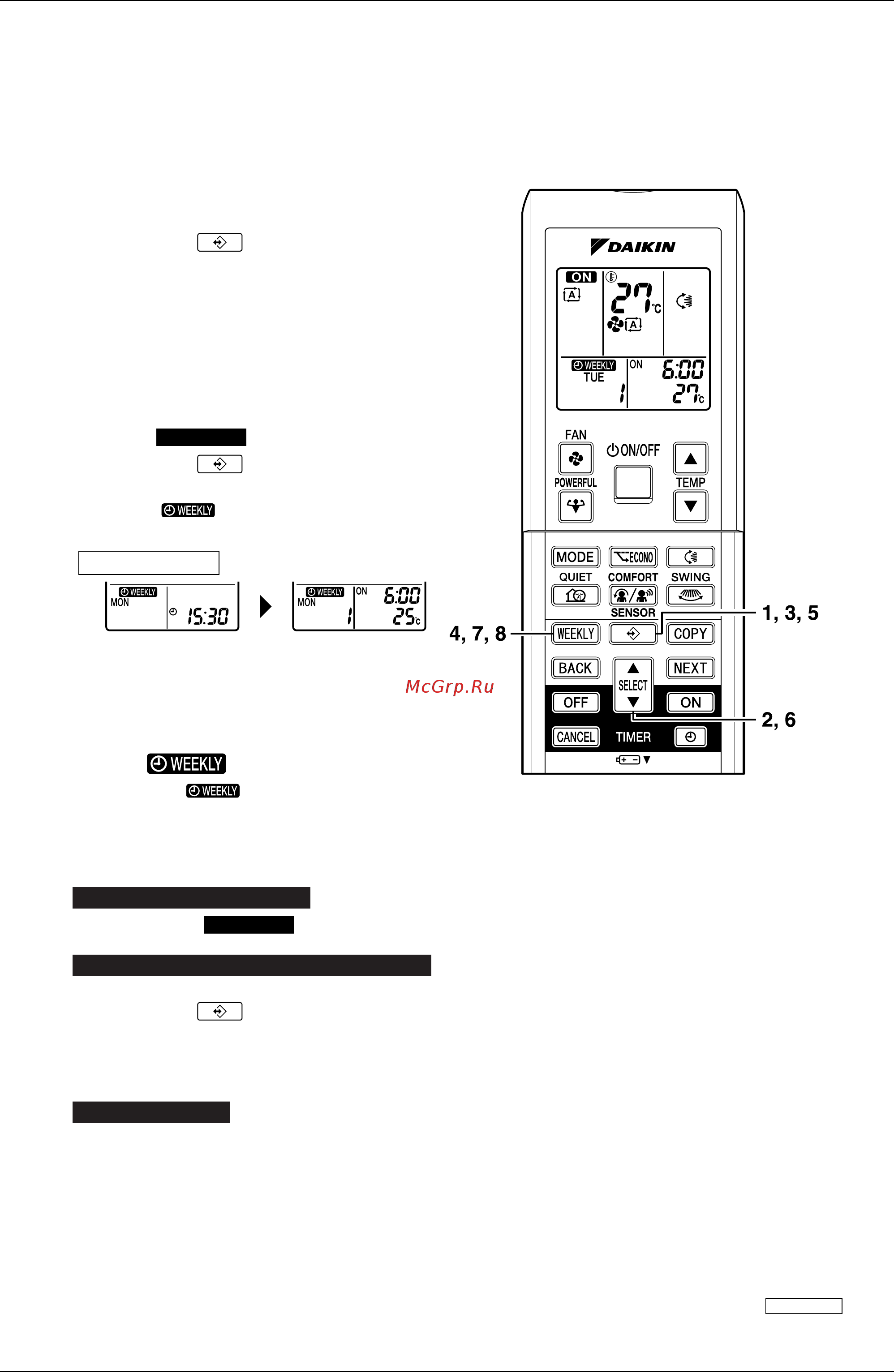

WEEKLY TIMER Operation
Confirming a reservation
• The reservation can be confirmed.
1.
Press “ button”.
•
2.
•
•
3.
• The TIMER lamp lights up.
4.
Press “WEEKLY button” while
“ ” is displayed on the LCD.
• The “ ” will disappear from the LCD.
• The TIMER lamp goes off.
• To reactivate the WEEKLY TIMER operation, press the “WEEKLY button” again.
• If a reservation deactivated with “WEEKLY button” is activated once again, the last reservation mode will be used.
To delete reservations
•
When selecting desired mode at STEP 4 in setting mode, select “blank”. The reservation will be deleted.
• This function can be used for deleting reservations for each day of the week.
5.
Press “ button”.
6.
Select the day of the week to be canceled with the “SELECT button”.
7.
Hold the “WEEKLY button” for 5 seconds.
• The reservation of the selected day of the week will be deleted.
8.
Hold “WEEKLY button” for 5 seconds while normal display.
• Be sure to direct the remote control toward the main unit and check for a receiving tone.
• This operation is not effective while WEEKLY TIMER is being set.
• All reservations will be deleted.
The individual reservation
The reservations for each day of the week
All reservations
Setting Displays
Normal display Confirmation display
The day of the week and the reservation number of
the current day will be displayed.
Press “SELECT button” to select the
day of the week and the reservation
number to be confirmed.
Pressing the “SELECT button” displays the
reservation details.
To change the confirmed reserved settings, select the
reservation number and press “NEXT button”.
The mode is switched to setting mode. Go to
Setting mode STEP 4. (page 23.)
Press “ button” to exit
confirming mode.
• “ ” is displayed on the LCD and WEEKLY
TIMER operation is activated.
To deactivate WEEKLY
TIMER operation
Refer to Setting mode . (page 23.)
3P207037-1D
