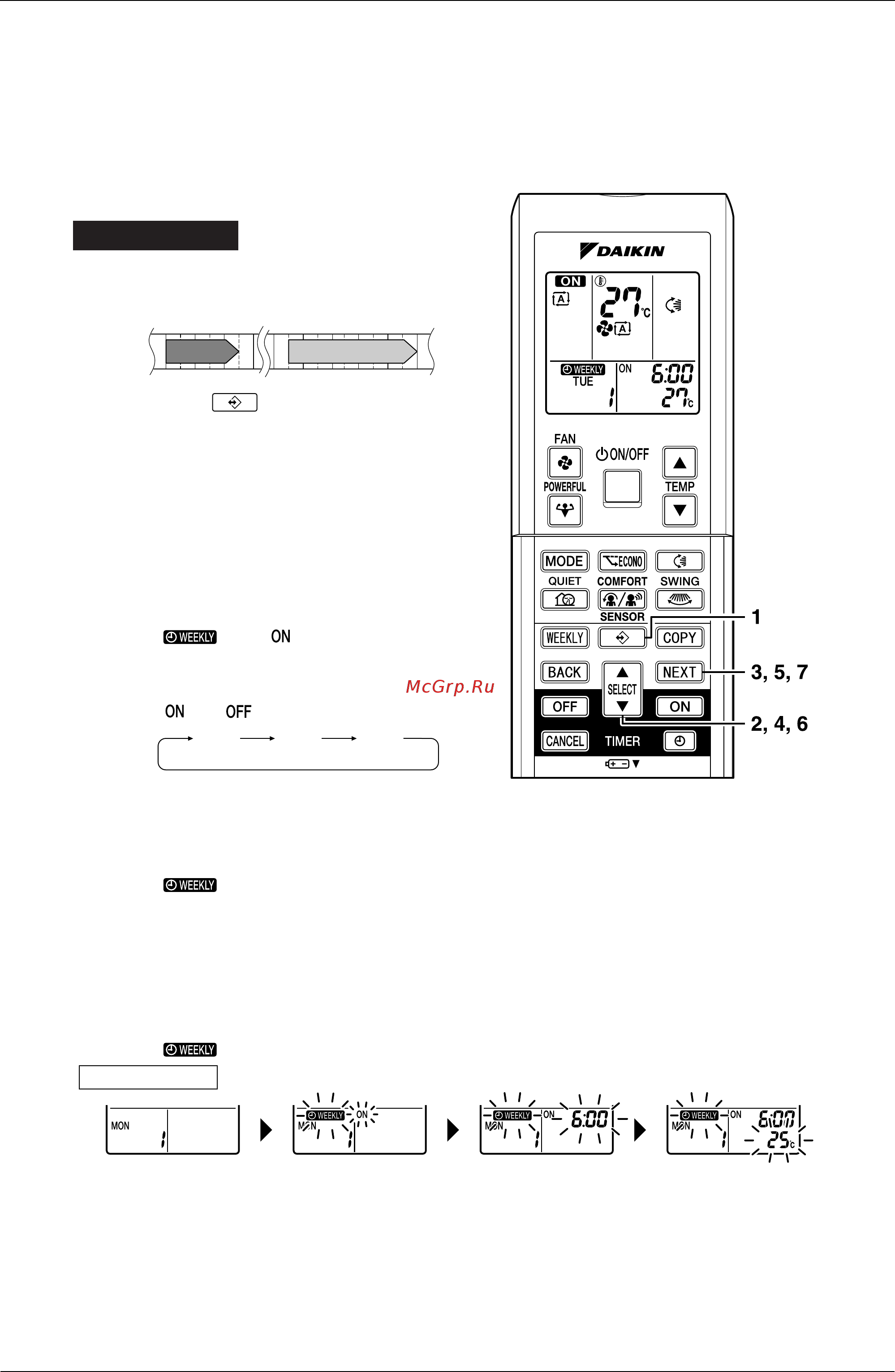

To use WEEKLY TIMER operation
•
1. Press “ button”.
•
• 1 to 4 settings can be made per day.
2.
•
3. Press “NEXT button”.
•
The day of the week and reservation number will be set.
• “ ” and “ ” blink.
4.
Press “SELECT button” to select the desired mode.
•
• In case the reservation has already been set, selecting “blank” deletes the reservation.
• Go to STEP 9 if “blank” is selected.
5. Press “NEXT button”.
• The ON/OFF TIMER mode will be set.
• “ ” and the time blink.
6. Press “SELECT button” to select the desired time.
• The time can be set between 0:00 and 23:50 in 10 minute intervals.
• To return to the ON/OFF TIMER mode setting, press “BACK button”.
• Go to STEP 9 when setting the OFF TIMER.
7. Press “NEXT button”.
• The time will be set.
• “ ” and the temperature blink.
Setting mode
6:00 8:30 17:30 22:00
25˚C 27˚C
Program 1 Program 2 Program 3 Program 4
ON OFF ON OFF
[Monday]
ON OFF Blank
ON TIMER OFF TIMER blank
Day and number settings
ON/OFF settings Time settings Temperature settings
Setting Displays
Make sure the day of the week and time are set.
If not, set the day of the week and time.
The day of the week and the reservation
number of the current day will be displayed
.
Press the “SELECT button” to select the desired
day of the week and reservation number.
Pressing the “SELECT button” changes the
reservation number and the day of the week.
Pressing the “SELECT button” changes
“ ” or “ ” setting in sequence.
