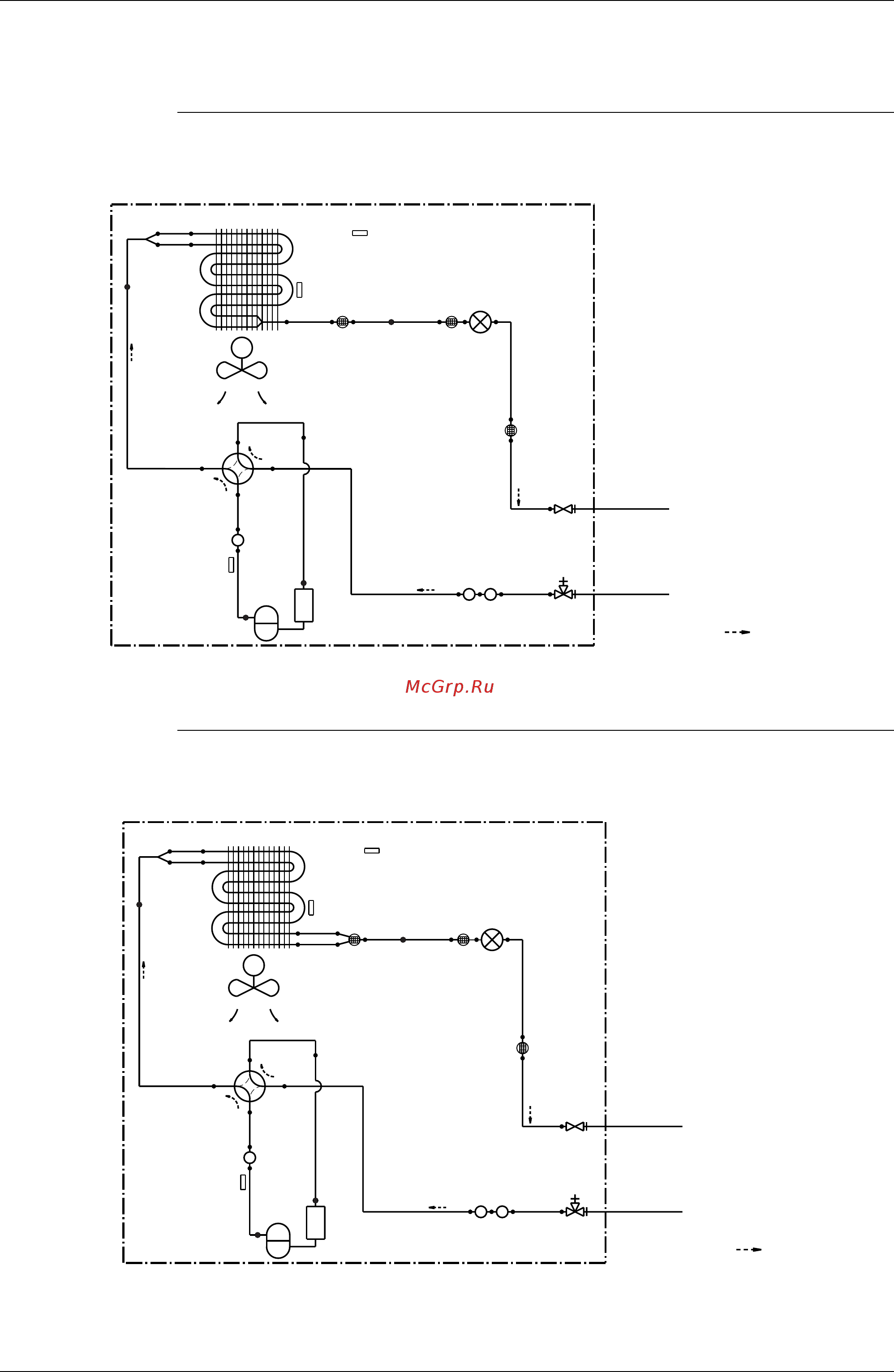

SiBE04-808_B Piping Diagrams
Appendix 300
1.2 Outdoor Unit
1.2.1 Cooling Only
RKS20G2V1B, RKS20G2V1B9
RKS25/35G2V1B, RKS25/35G2V1B9
9.5CuT
7.0CuT
(6.4CuT)
9.5CuT
6.4CuT
7.0CuT
ACCUMULATOR
FIELD PIPING
9.5CuT
7.9CuT
(9.5CuT)
MUFFLERMUFFLER
9.5CuT
7.0CuT
HEAT EXCHANGER
6.4CuT
M
COOLING
OUTDOOR UNIT
MUFFLER
COMPRESSOR
9.5CuT
PROPELLER FAN
FIELD PIPING
6.4CuT
REFRIGERANT FLOW
7.9CuT
9.5CuT
φ.4.0×ID. 2.0CuT
OUTDOOR TEMPERATURE
THERMISTOR
HEAT EXCHANGER
THERMISTOR
MUFFLER
WITH
FILTER
MUFFLER
WITH
FILTER
MUFFLER
WITH
FILTER
MOTOR OPERATED
VALVE
LIQUID STOP
VALVE
GAS STOP
VALVE
FOUR WAY
VALVE
NORMALLY:OFF
DISCHARGE PIPE
THERMISTOR
3D059588A
9.5CuT
MUFFLER
COMPRESSOR
7.0CuT
9.5CuT
9.5CuT
HEAT EXCHANGER
REFRIGERANT FLOW
4.8CuT
(6.4CuT)
(9.5CuT)
PROPELLER FAN
M
FIELD PIPING
ACCUMULATOR
9.5CuT
6.4CuT
7.9CuT
6.4CuT
6.4CuT
FIELD PIPING
MUFFLER
7.0CuT
4.8CuT
OUTDOOR UNIT
COOLING
MUFFLER
9.5CuT
9.5CuT
7.9CuT
φ.4.0×ID. 2.0CuT
OUTDOOR TEMPERATURE
THERMISTOR
HEAT EXCHANGER
THERMISTOR
MOTOR OPERATED
VALVE
MUFFLER
WITH
FILTER
MUFFLER
WITH
FILTER
MUFFLER
WITH
FILTER
LIQUID STOP
VALVE
GAS STOP
VALVE
FOUR WAY
VALVE
NORMALLY:OFF
DISCHARGE PIPE
THERMISTOR
3D059589B
