FTXS20/25/35/42/50G2V1B SiBE04-808_B
79 Operation Manual
25
•
1. Press “ button”.
2.
3.
•
4.

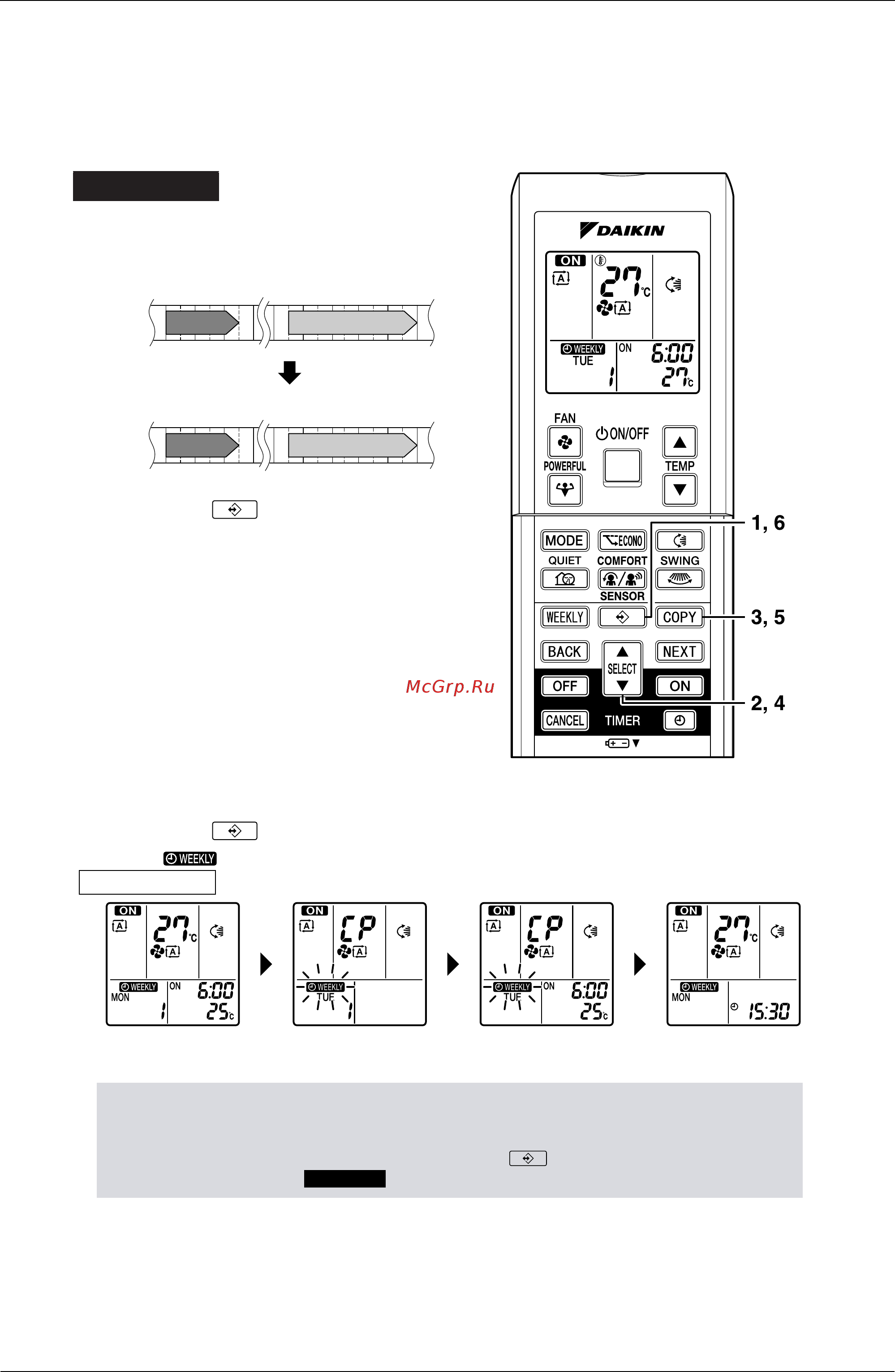

5. Press “COPY button”.
•
• To continue copying the settings to other days of the week, repeat STEP 4 and STEP 5.
6. Press “ button” to complete the setting.
• “ ” is displayed on the LCD and WEEKLY TIMER operation is activated.
NOTE
Copy mode
COPY MODE
•
6:00 8:30 17:30 22:00
25˚C 27˚C
6:00 8:30 17:30 22:00
25˚C 27˚C
Program 1 Program 2 Program 3 Program 4
ON OFF ON OFF
[Monday]
COPY
Program 1 Program 2 Program 3 Program 4
ON OFF ON OFF
Setting Displays
Confirmation display Copy display Paste display Normal display
A reservation made once can be copied
another day of the week. The whole reservation
of the selected day of the week will be copied
.
[Tuesday]
to
[Friday]
Press “SELECT button” to confirm
the day of the week to be copied
.
Press “COPY button” to
activate copy mode.
The whole reservation of the selected
day of the week will be copied.
Press “SELECT button” to select
the destination day of the week
.
The reservation will be copied to the
selected day of the week. The whole reservation of the selected day of the week will be copied.
The entire reservation of the source day of the week is copied in the copy mode. In
the case of making a reservation change for any day of the week individually after
copying the content of weekly reservations, press “ button” and change the
settings in the steps of
Setting mode . (page 23.)
