Outdoor Unit - RK(X)S20-35G2V1B, ARXS20-35G2V1B SiBE04-808_B
205 Removal Procedure
2.6 Removal of Sound Blanket
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Untie the string and
open the sound blanket
(outer).
Preparation
Remove the outer panels
according to the “Removal of
Outer Panels / Fan Motor”.
Remove the electrical box
according to the "Removal of
Electrical Box".

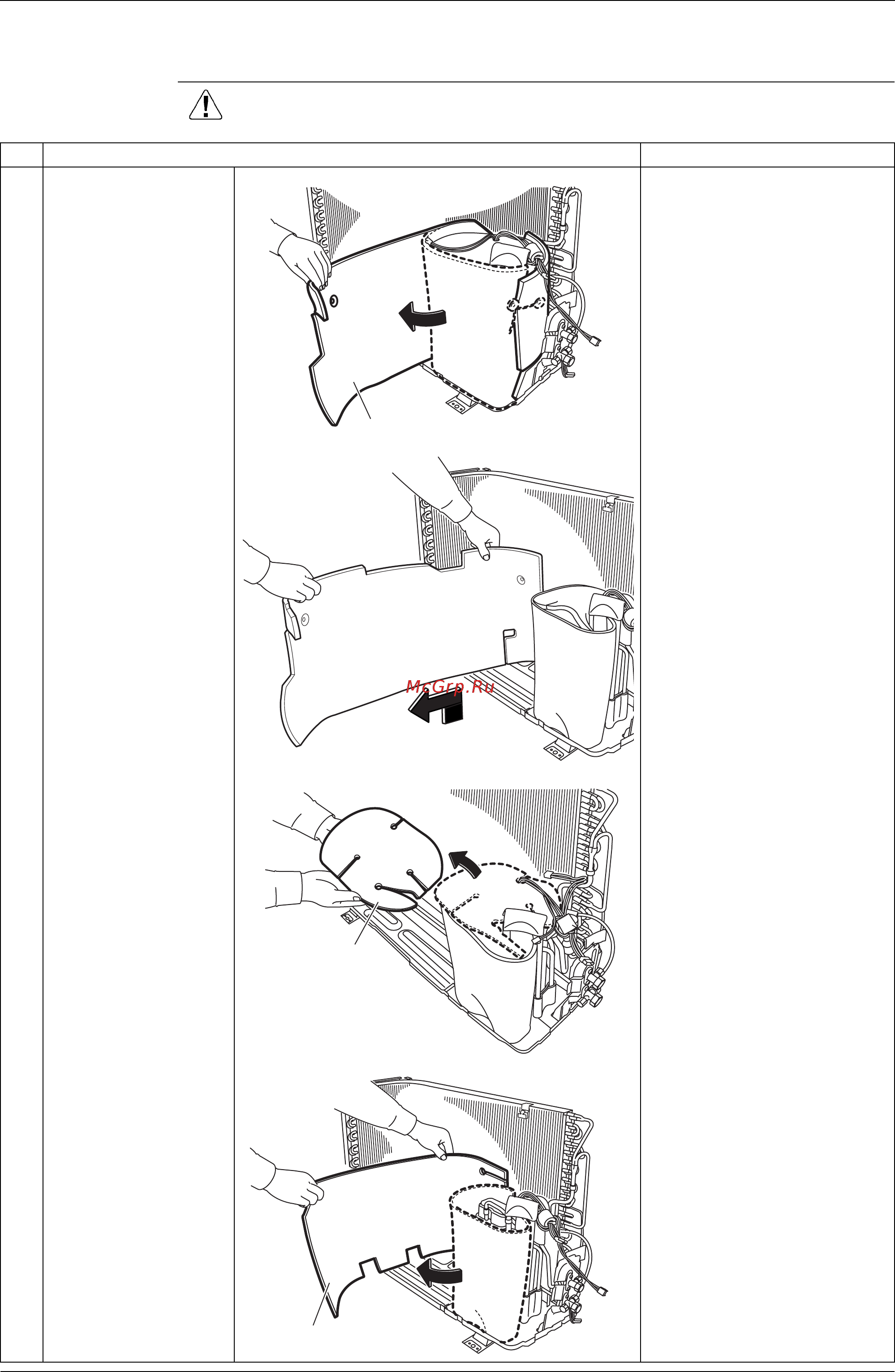

2
Lift and remove the
sound blanket (outer).
Since the piping ports are
torn easily, remove the
sound blanket carefully.
3
Remove the sound
blanket (top).
4
Pull the sound blanket
(inner) out.
(R7229)
Sound blanket (outer)
(R12212)
(R7231)
Sound blanket
(top)
Sound blanket (inner)
(R12271)
