GW-10
BACK DOOR WINDOW GLASS
BACK DOOR WINDOW GLASS
PFP:90300
Removal and Installation
BIS000MR
REMOVAL
1. Remove back door finisher inner. Refer to EI-22, "BACK DOOR TRIM" .
2. Remove rear wiper arm. Refer to WW-69, "
Removal and Installation of Rear Wiper Arm, Adjustment of
Wiper Arm Stop Location"
3. Apply protective tape around windshield glass to protect the painted surface from damage.

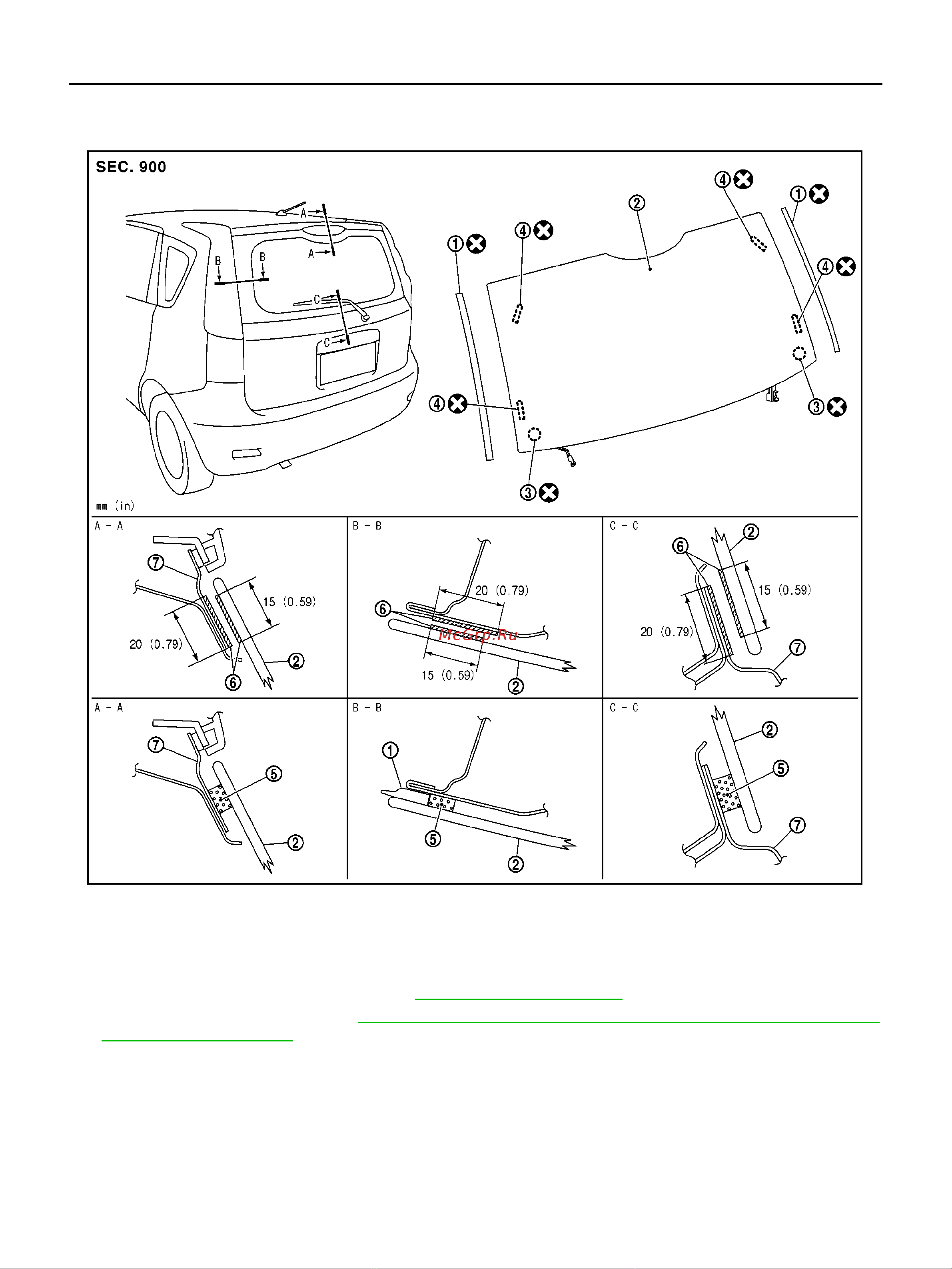

1. Back door window molding 2. Back door window glass 3. Clip
4. Spacer 5. Sealant 6. Primer
7. Back door outer panel
MIIB1432E
