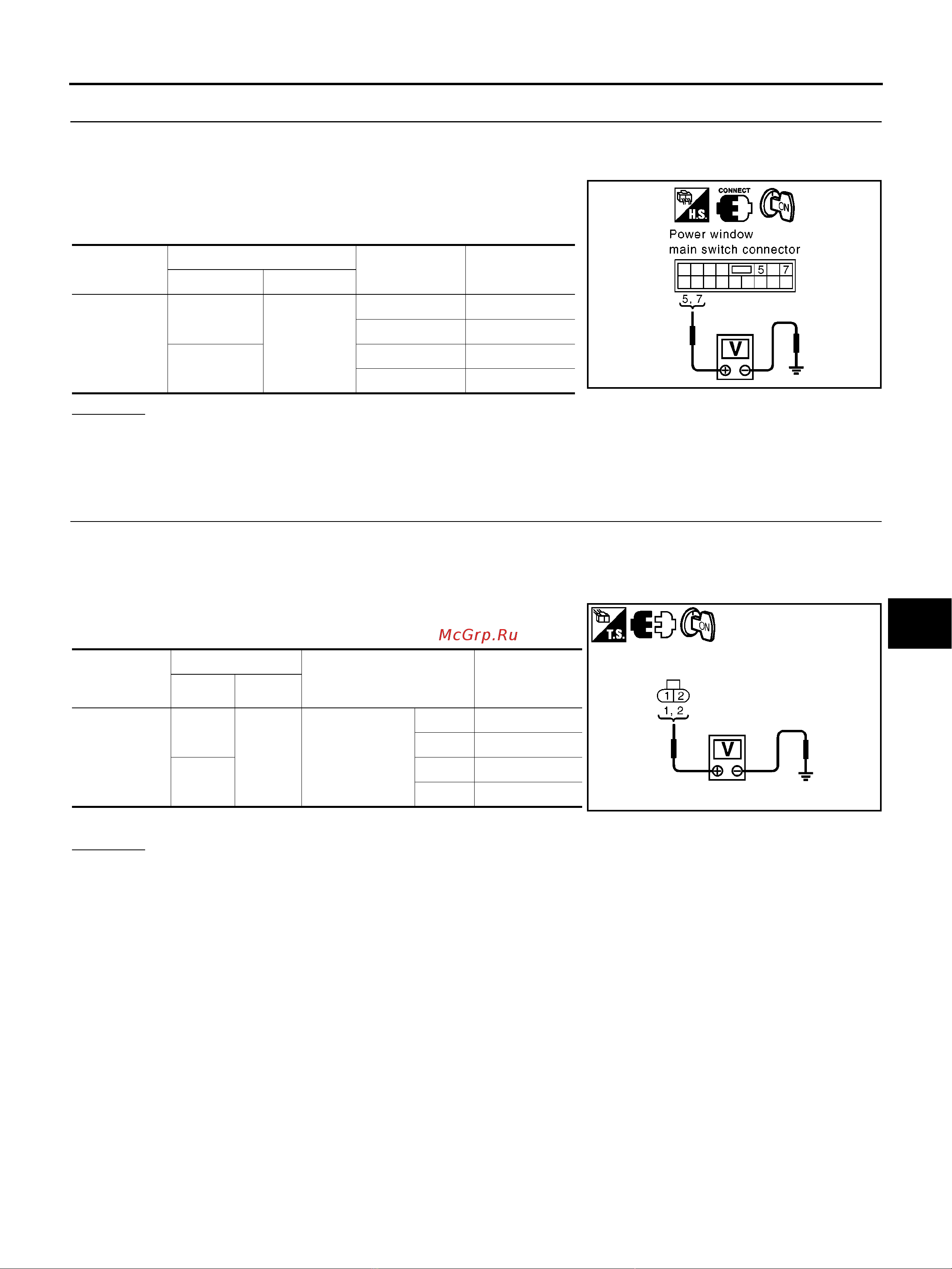

POWER WINDOW SYSTEM
GW-71
C
D
E
F
G
H
J
K
L
M
A
B
GW
7. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Connect power window main switch connector.
2. Turn ignition switch ON.
3. Check voltage between power window main switch connector
and ground when operating rear RH switch in power window
main switch.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace power window main switch.
Check Rear Power Window Motor LH Circuit
BIS000UV
1. CHECK POWER WINDOW SWITCH OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect rear power window motor LH connector.
3. Turn ignition switch ON.
4. Check voltage between rear power window motor LH connector
and ground.
*: Power window main switch or rear power window switch LH.
OK or NG
OK >> Replace rear power window motor LH.
NG >> GO TO 2.
Connector
Terminals (Wire color)
Switch
condition
Voltage [V]
(Approx.)
(+) (-)
D8
5
Ground
UP 0
DOWN Battery voltage
7
UP Battery voltage
DOWN 0
PIIA4189E
Rear power
window motor
LH connector
Terminal
Condition
Voltage [V]
(Approx.)
(+) (–)
D44
1
Ground Switch*
UP 0
DOWN Battery voltage
2
UP Battery voltage
DOWN 0
MIIB1404E
