GW-30
REAR WINDOW DEFOGGER

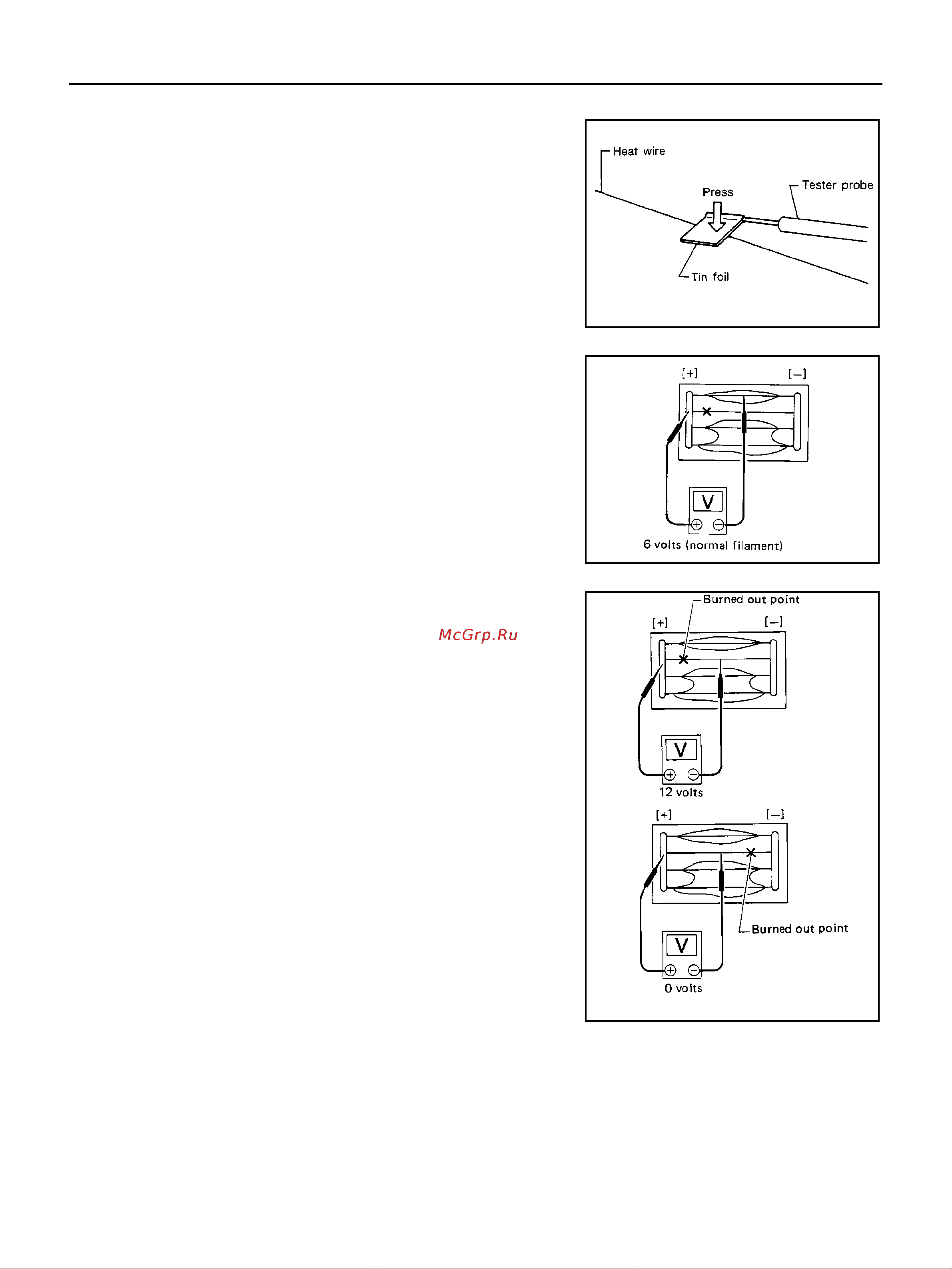

Filament Check
BIS000NB
1. When measuring voltage, wrap tin foil around the top of the neg-
ativeprobe.Thenpressthefoilagainstthewirewithyourfinger.
2. Attach probe circuit tester (in Volt range) to middle portion of
each filament.
3. If a filament is burned out, circuit tester registers 0 or battery
voltage.
4. To locate burned out point, move probe to left and right along fil-
ament. Test needle will swing abruptly when probe passes the
point.
SEL122R
SEL263
SEL265
