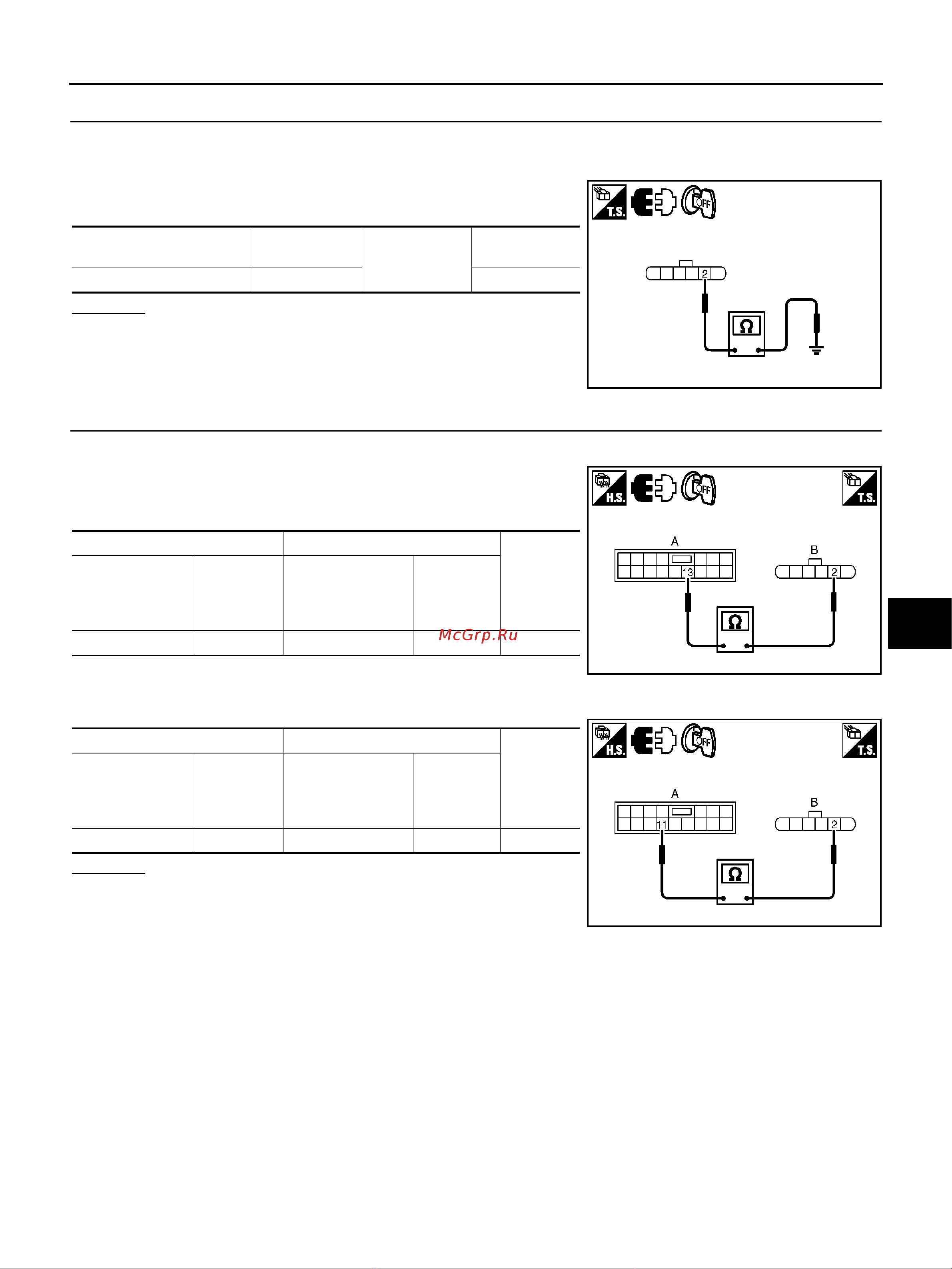

![Nissan Note [77/104] Power window system](/views2/1789819/page77/bg4d.png)
POWER WINDOW SYSTEM
GW-77
C
D
E
F
G
H
J
K
L
M
A
B
GW
5. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front power window motor (driver side) connector.
3. Check continuity between front power window motor (driver
side) connector and ground.
OK or NG
OK >> Replace front power window motor (driver side).
NG >> GO TO 6.
6. CHECK HARNESS CONTINUITY 2
1. Disconnect power window main switch connector.
2. Check continuity between power window main switch connector
and front power window motor (driver side) connector.
[LHD models]
[RHD models]
OK or NG
OK >> Replace power window main switch.
NG >> Repair or replace harness.
Front power window motor
(driver side) connector
Terminal
Ground
Continuity
D4 2 Yes
MIIB1409E
AB
Continuity
Power window
main switch
connector
Terminal
Front power
window motor
(driver side)
connector
Terminal
D8 13 D4 2 Yes
AB
Continuity
Power window
main switch
connector
Terminal
Front power
window motor
(driver side)
connector
Terminal
D8 11 D4 2 Yes
MIIB1410E
MIIB1413E
