Nissan Note [86/104] Power window system

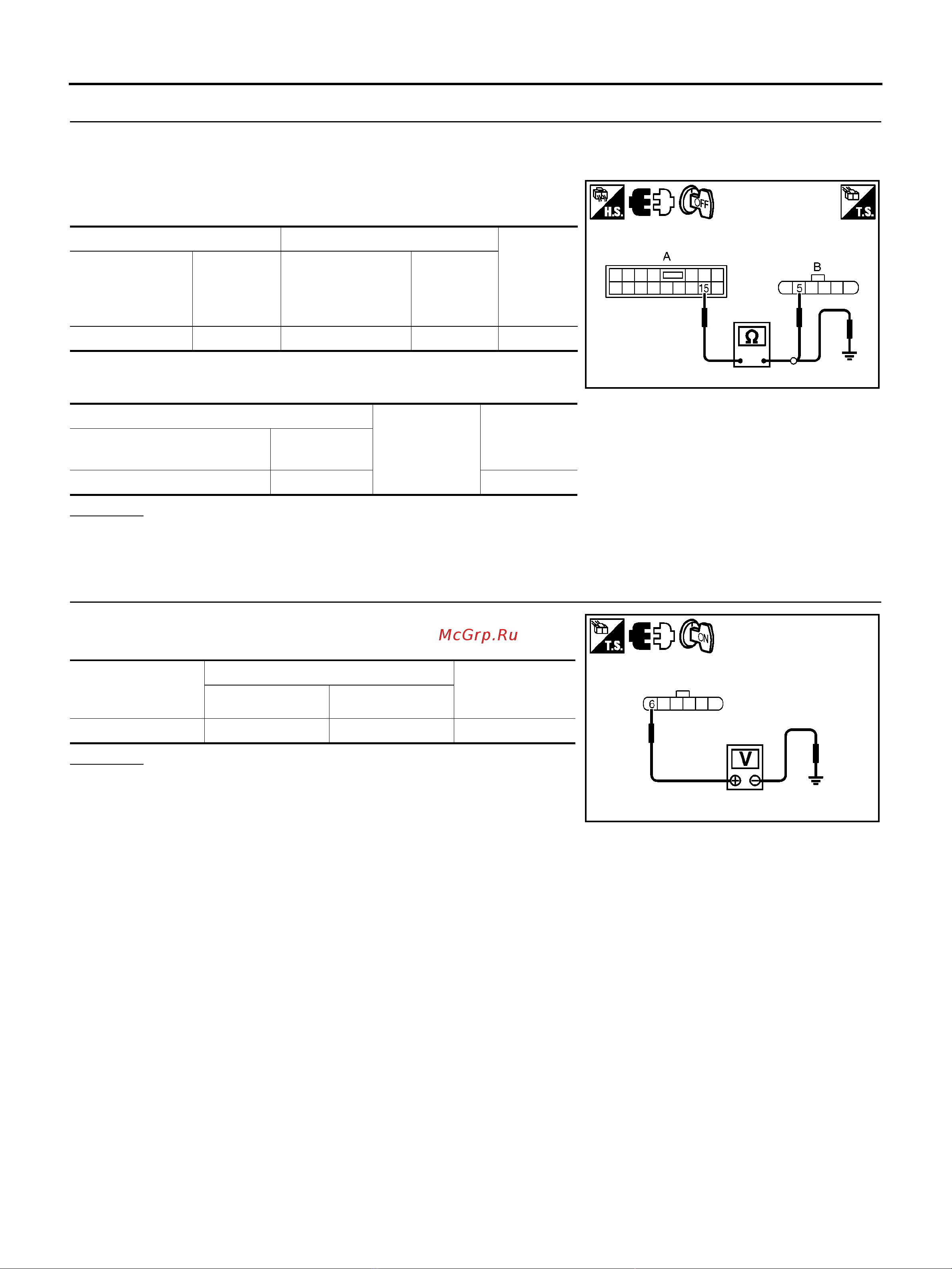

![Nissan Note [86/104] Power window system](/views2/1789819/page86/bg56.png)
GW-86
POWER WINDOW SYSTEM
3. CHECK HARNESS CONTINUITY 1
1. Turn ignition switch OFF.
2. Disconnect power window main switch.
3. Check continuity between power window main switch connector
and front power window motor (driver side) connector.
4. Check continuity between power window main switch connector
and ground.
OK or NG
OK >> Replace power window main switch.
NG >> Repair or replace harness.
4. CHECK POWER WINDOW MAIN SWITCH OUTPUT VOLTAGE
1. Check voltage between front power window motor (driver side)
connector and round.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
AB
Continuity
Power window
main switch
connector
Terminal
Front power
window motor
(driver side)
connector
Terminal
D8 15 D4 5 Yes
A
Ground
Continuity
Power window main switch
connector
Terminal
D8 15 No
MIIB1424E
Front power window
motor (driver side)
connector
Terminal
Voltage [V]
(Approx.)
(+) (–)
D4 6 Ground 5
MIIB1419E
