WINDSHIELD GLASS
GW-5
C
D
E
F
G
H
J
K
L
M
A
B
GW
WINDSHIELD GLASS PFP:72712
Removal and Installation
BIS000MP
REMOVAL
1. Remove inside mirror. Refer to GW-104, "INSIDE MIRROR"
2. Remove front pillar garnish. Refer to EI-26, "BODY SIDE TRIM"
3. Remove headlining. Refer to EI-30, "HEADLINER" .
4. Remove front wiper arm. Refer to WW-42, "
Removal and Installation of Front Wiper Arms, Adjustment of
Wiper Arms Stop Location"

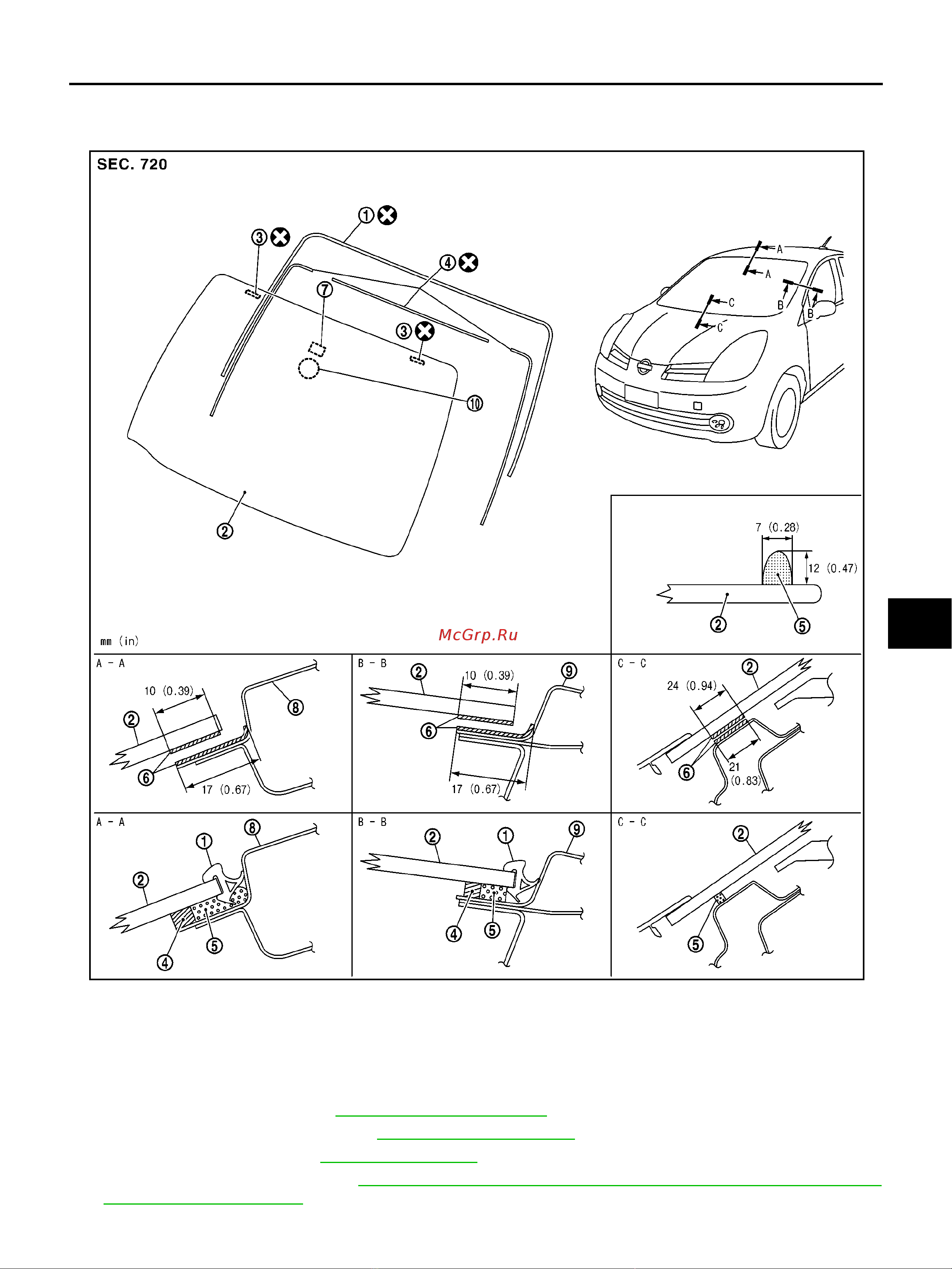

1. Windshield molding 2. Windshield glass 3. Clip
4. Dam sealant 5. Sealant 6. Primer
7. Mirror base 8. Roof side outer panel 9. Body side outer panel
10. Rain sensor base
MIIB1430E
