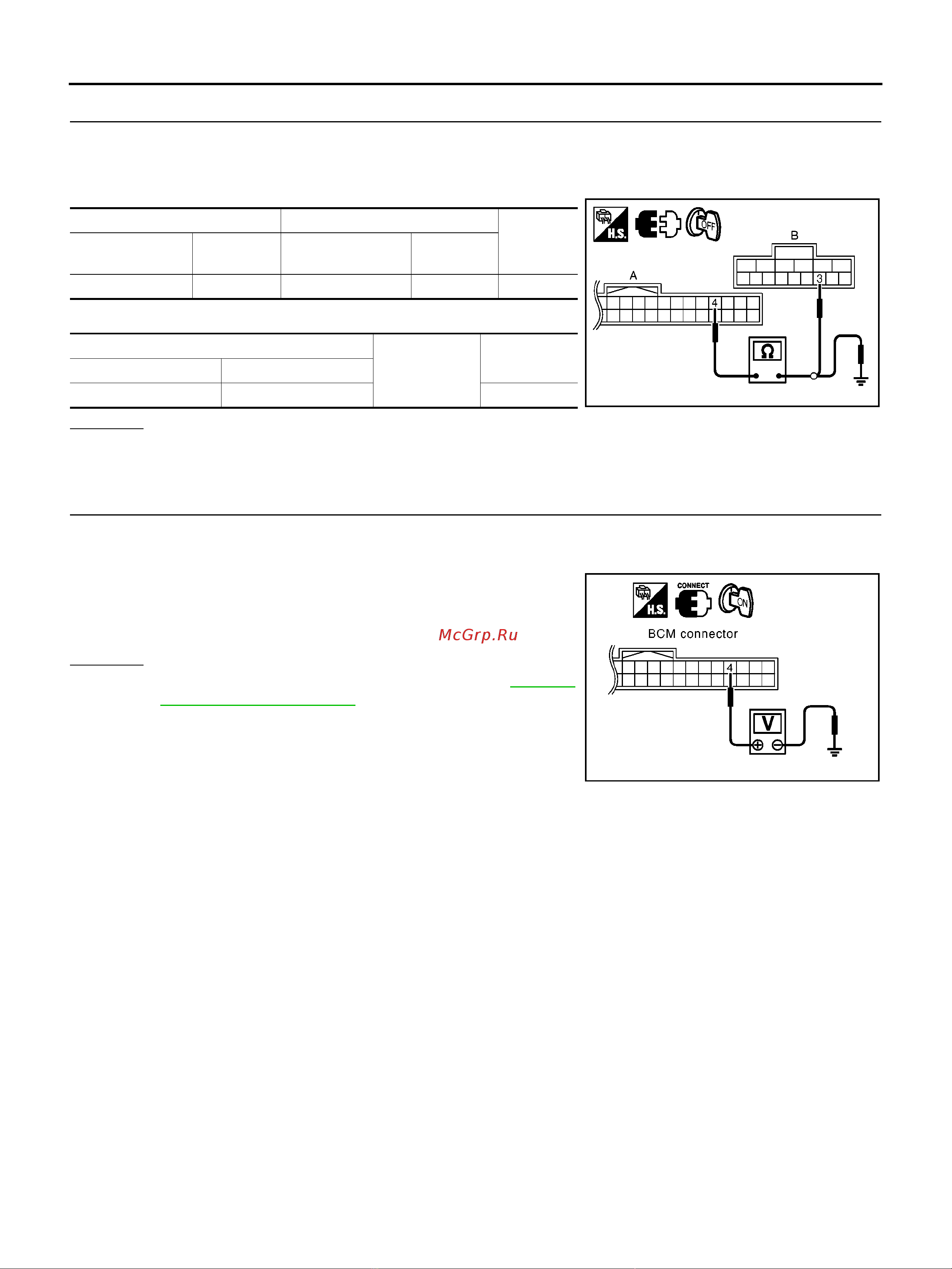

GW-24
REAR WINDOW DEFOGGER
2. CHECK REAR WINDOW DEFOGGER SWITCH CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect BCM and heater control panel connector.
3. Check continuity between BCM connector and heater control panel connector.
4. Check continuity between BCM connector and ground
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between BCM and heater control panel.
3. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Turn ignition switch ON.
3. Check voltage between BCM connector M57 terminal 4 and
ground.
OK or NG
OK >> Replace heater control panel. Refer to MTC-62,
"Removal and Installation" .
NG >> Replace BCM.
AB
Continuity
BCM connector Terminal
Heater control
panel connector
Terminal
M57 4 M62 3 Yes
A
Ground
Continuity
BCM connector Terminal
M57 4 No
MIIB1363E
4 – Ground :Approx. 5
MIIB0094E
