DOOR MIRROR
GW-101
C
D
E
F
G
H
J
K
L
M
A
B
GW
Removal and Installation
BIS000O5
CAUTION:
Be careful not to damage mirror body.
REMOVAL
1. Remove front door finisher. Refer to EI-20, "DOOR FINISHER" .
2. Remove corner cover.
3. Disconnect door mirror harness connector. (Electric door mirrors only)
4. Remove door mirror bolts and door mirror assembly.
INSTALLATION
Install in the reverse order of removal.

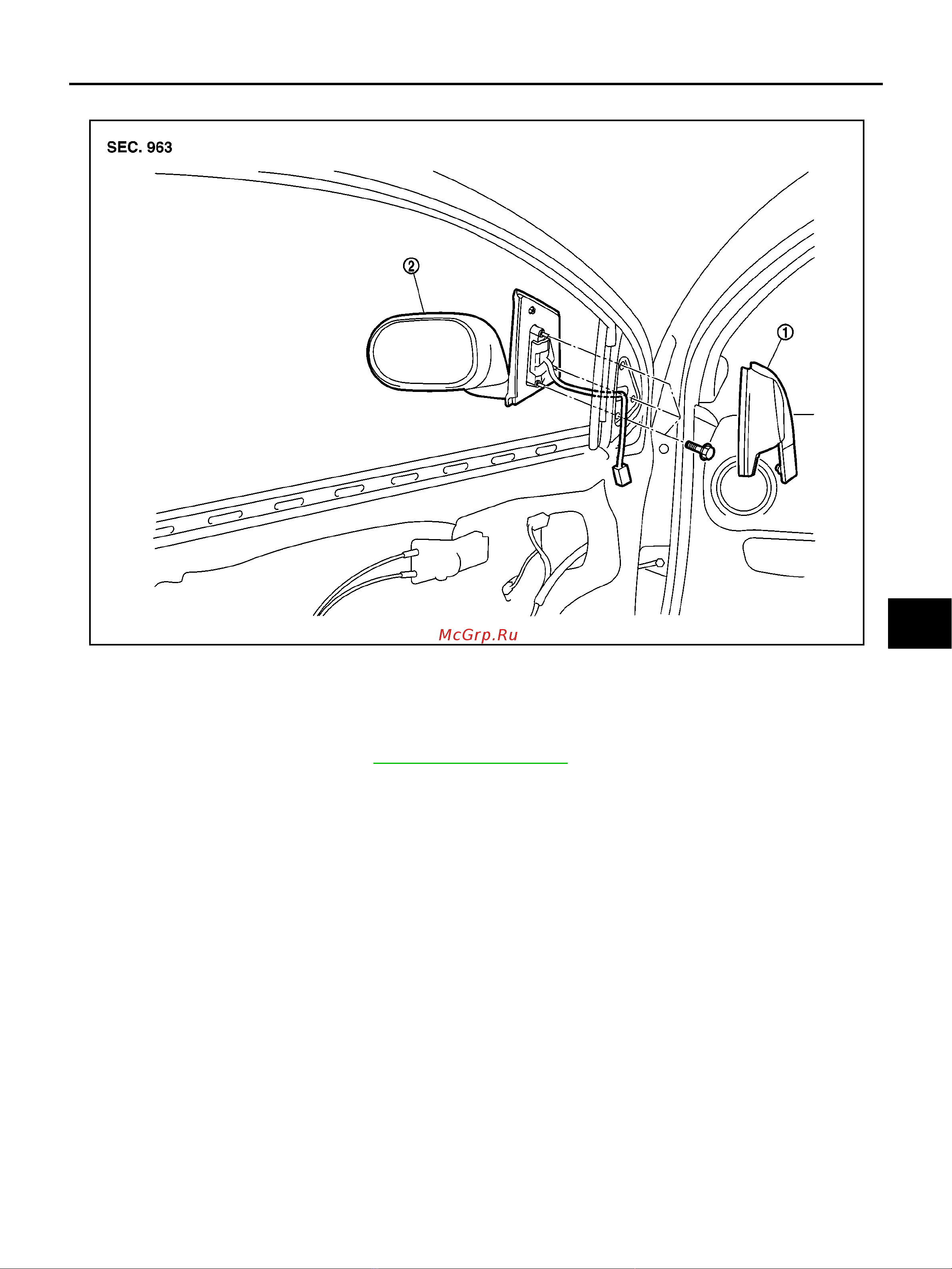

1. Corner cover 2. Door mirror assembly
MIIB1429E
