POWER WINDOW SYSTEM
GW-73
C
D
E
F
G
H
J
K
L
M
A
B
GW

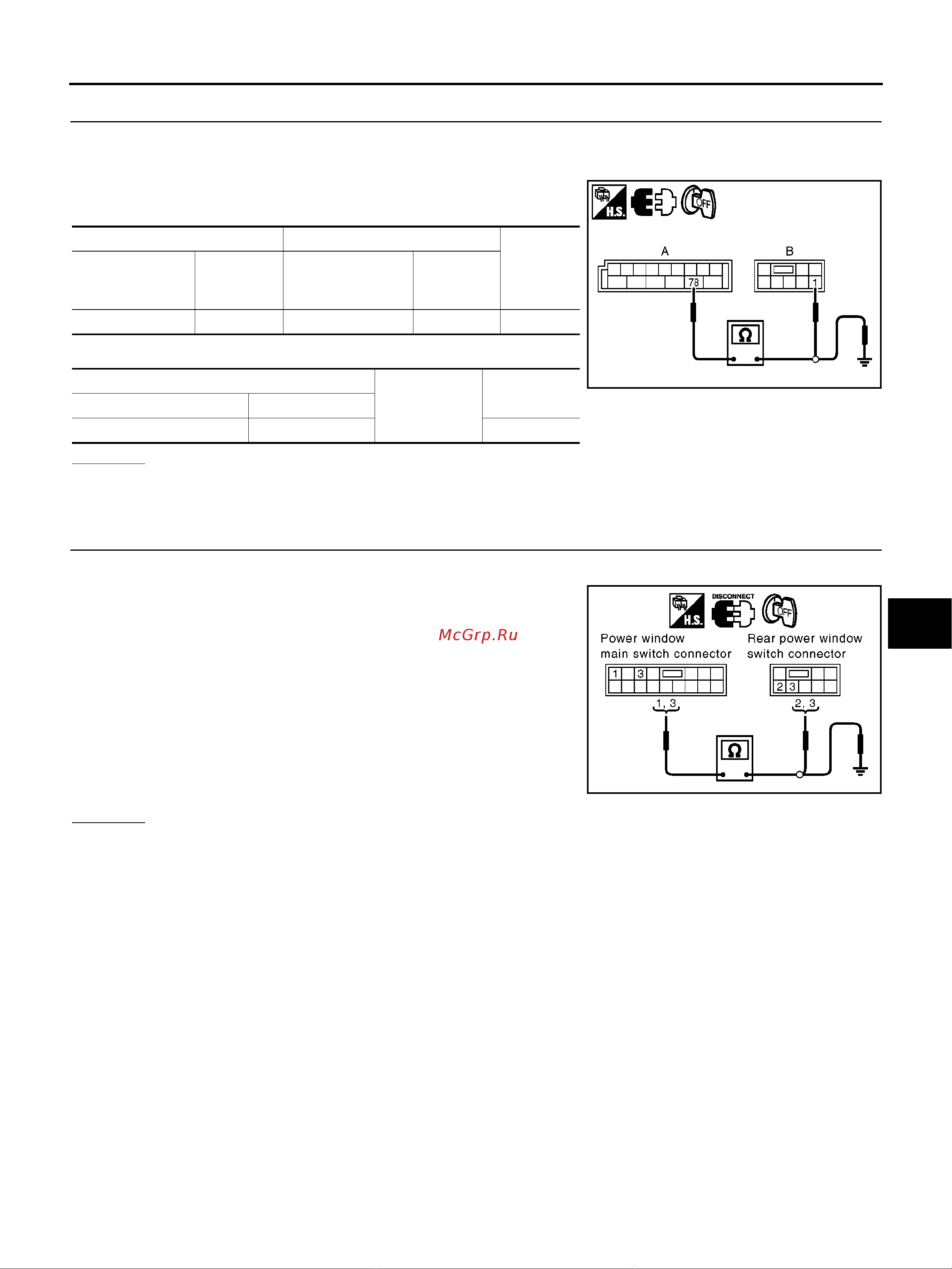

5. CHECK HARNESS CONTINUITY 2
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector and rear power win-
dow switch LH connector.
4. Check continuity between BCM connector and ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Repair or replace harness.
6. CHECK HARNESS CONTINUITY 3
1. Disconnect power window main switch connector.
2. Check continuity between power window main switch connector
D8 terminal 1, 3 and rear power window switch LH connector
D43 terminal 2, 3.
3. Check continuity between power window main switch connector
D8 terminal 1, 3 and ground.
OK or NG
OK >> GO TO 7.
NG >> Repair or replace harness.
AB
Continuity
BCM connector Terminal
Rear power
window switch
LH connector
Terminal
M59 78 D43 1 Yes
A
Ground
Continuity
BCM connector Terminal
M59 78 No
MIIB1399E
1 – 2 : Continuity should exist.
3 – 3 : Continuity should exist.
1 – Ground : Continuity should not exist.
3 – Ground : Continuity should not exist.
PIIB0616E
