GW-8
SIDE WINDOW GLASS
SIDE WINDOW GLASS
PFP:83300
Removal and Installation
BIS000MQ
REMOVAL
1. Remove rear pillar finisher. Refer to EI-26, "BODY SIDE TRIM"
2. Apply a protective tape around the side window glass to protect the painted surface from damage.
Remove side window glass using piano wire or power cutting tool and an inflatable pump bag.
WARNING:
When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent
glass splinters from entering your eyes or cutting your hands.
CAUTION:
● Be careful not to scratch the glass when removing.
● Do not set or stand the glass on its edge. Small chips may develop into cracks.
INSTALLATION
● Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-
nished with it.

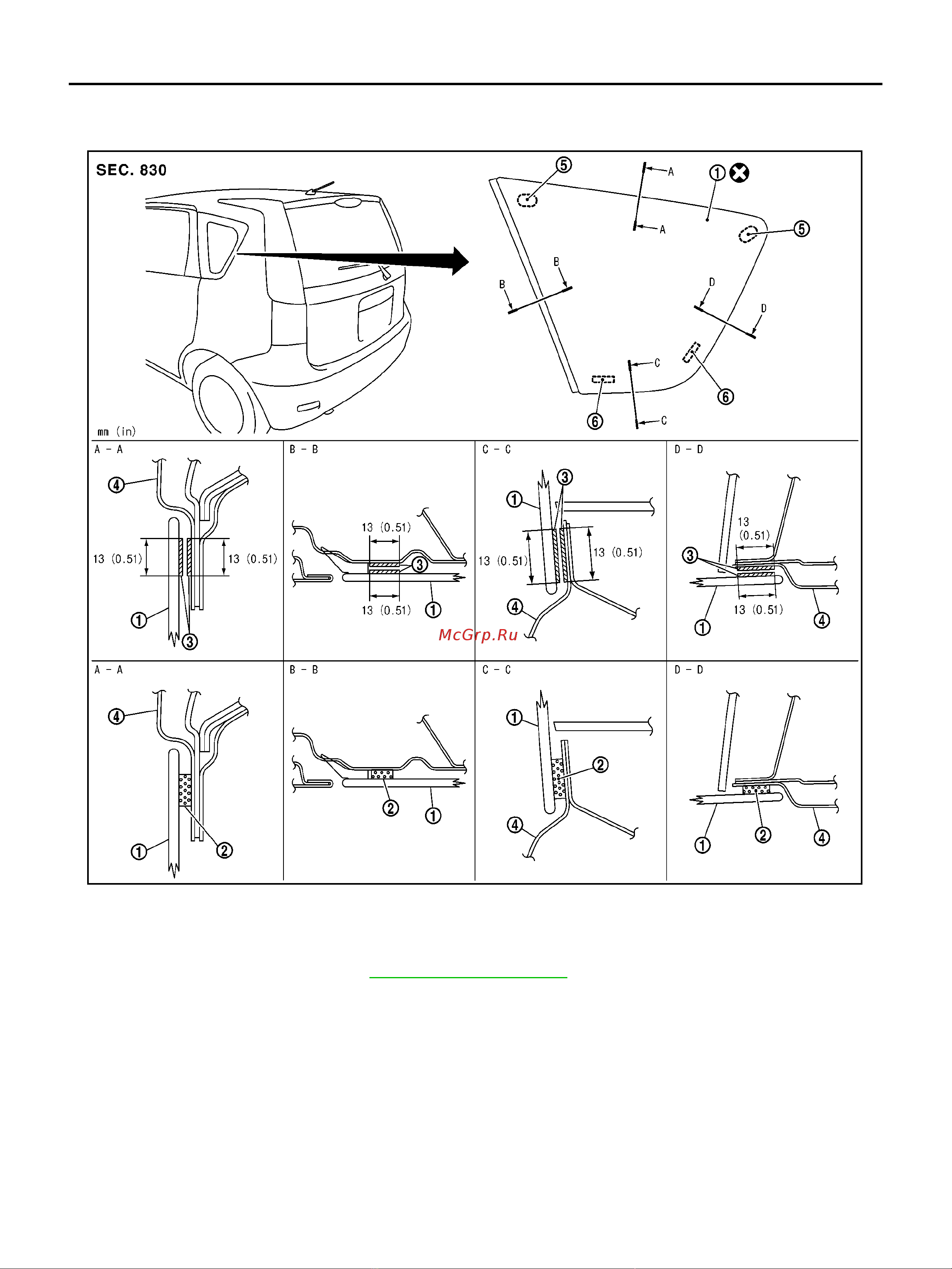

1. Side window glass 2. Sealant 3. Primer
4. Body side outer panel 5. Spacer 6. Clip
MIIB1431E
