GW-90
FRONT DOOR GLASS AND REGULATOR

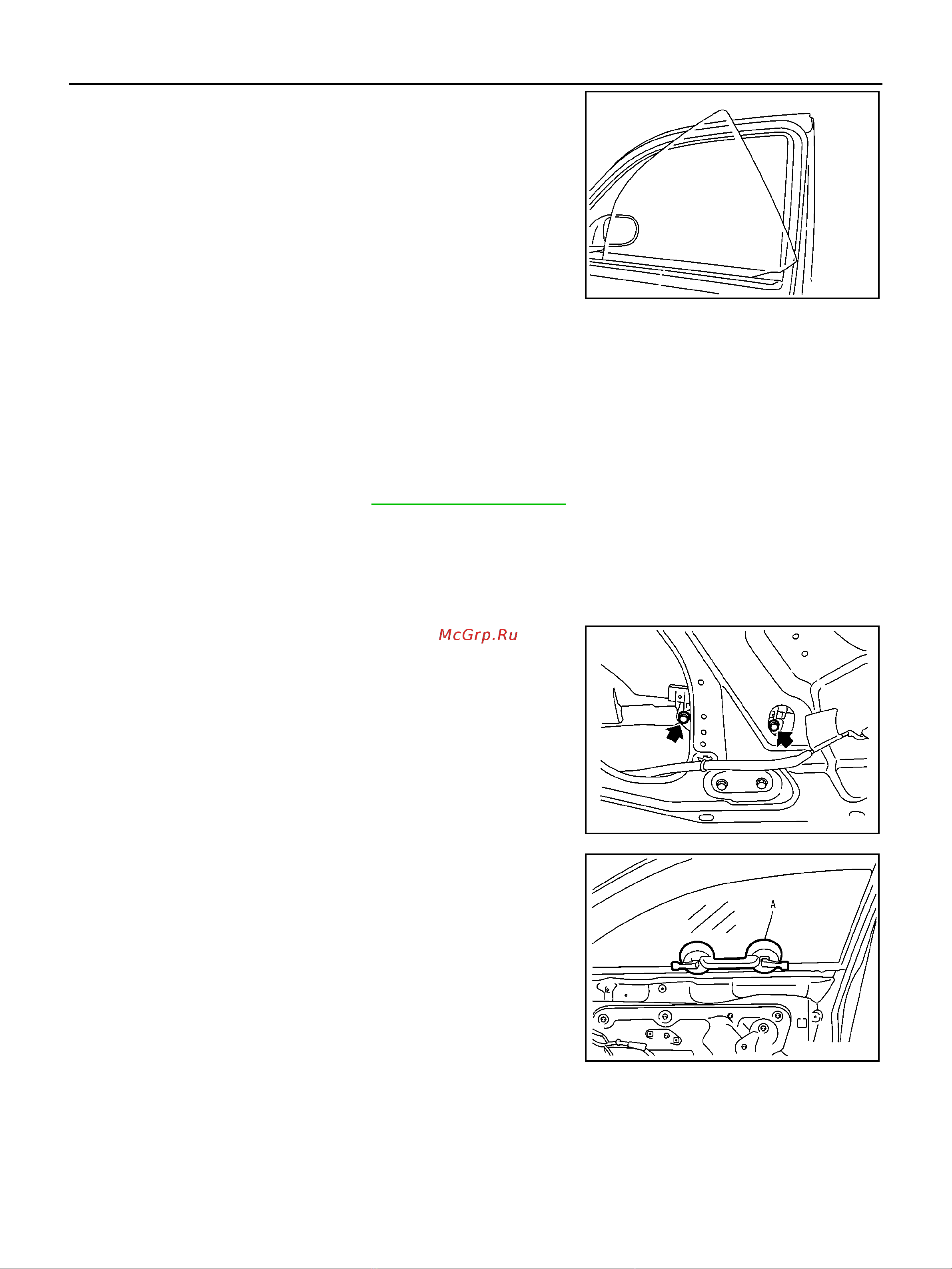

8. While holding door glass, raise glass up from rear edge while
pulling glass out of sash toward the inside of the door.
9. Remove lower sash (rear).
10. Remove door glass run.
11. Remove lower sash (front).
Installation
Install in the reverse order of removal.
REGULATOR ASSENBLY
Removal
1. Remove front door finisher. Refer to EI-20, "DOOR FINISHER" .
2. Remove pull handle bracket.
3. Disconnect front speaker harness connector, and then remove sealing screen.
NOTE:
If sealing screen is reused, cut butyl tape in a way that leaves it on sealing screen.
4. Remove clips, and then remove inner pad.
5. Operate the power window main switch to raise/lower the door
window until the glass mounting bolts can be seen.
6. Remove the glass mounting bolts.
7. RaiseupthedoorglassandholdwithasuctionlifterA.
SIIA1779J
MIIB1434E
PIIB3510J
