FRONT DOOR GLASS AND REGULATOR
GW-89
C
D
E
F
G
H
J
K
L
M
A
B
GW
FRONT DOOR GLASS AND REGULATOR PFP:80300
Removal and Installation
BIS000O1
DOOR GLASS
Removal
1. Remove front door finisher. Refer to EI-20, "DOOR FINISHER" .
2. Remove pull handle bracket.
3. Fully close door glass.
4. Disconnect front speaker harness connector, and then remove sealing screen.
NOTE:
If sealing screen is reused, cut butyl tape in a way that leaves it on sealing screen.
5. Remove clip, and then remove inner pad.
6. While supporting door glass, operate power window switch to
raise/lower door glass until glass bolts can be seen.
7. Remove door glass bolts.

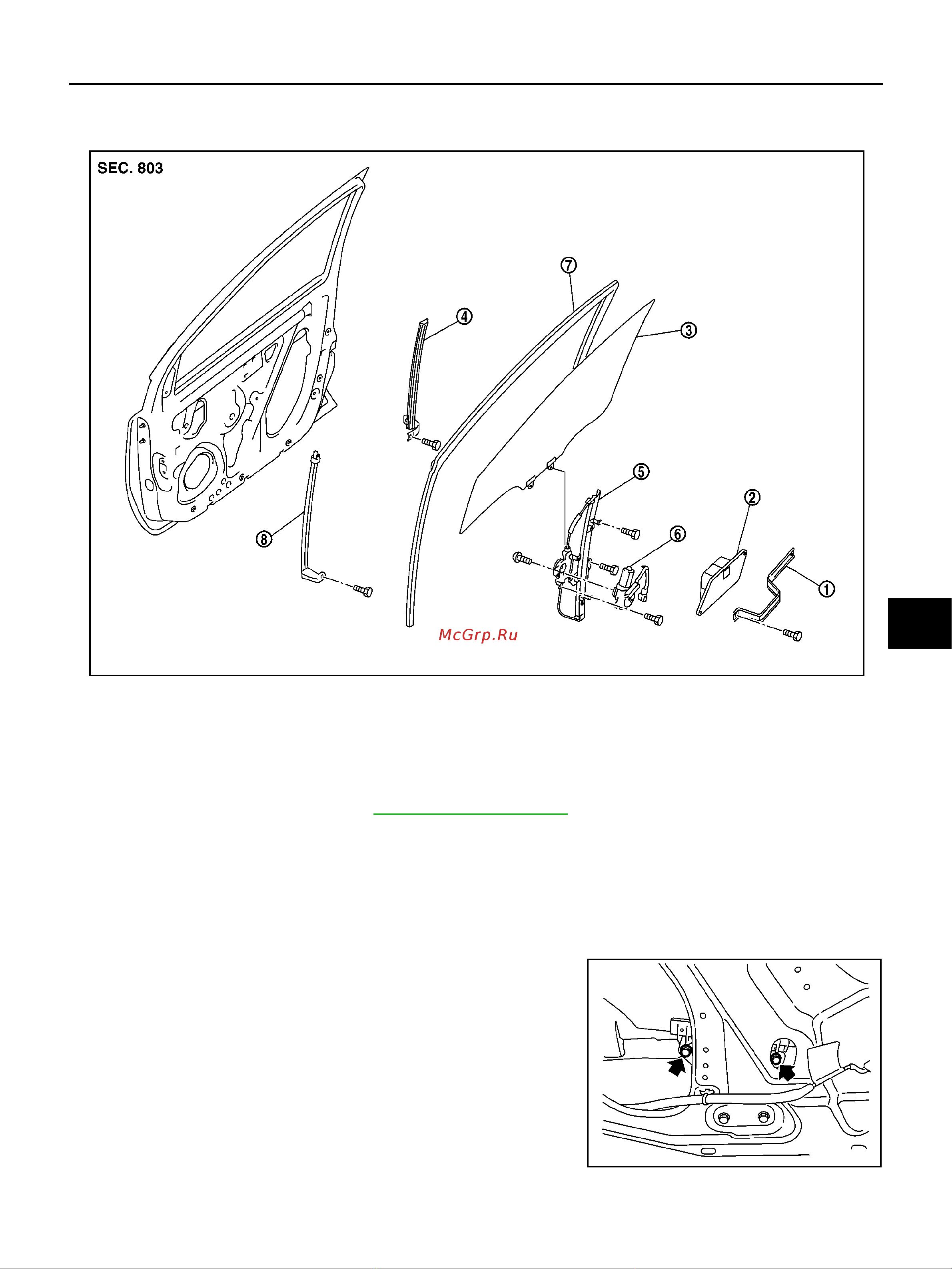

1. Pull handle bracket 2. Inner pad 3. Door glass
4. Lower sash (rear) 5. Regulator assembly 6. Power window motor
7. Door glass run 8. Lower sash (front)
PIIB5343J
MIIB1434E
