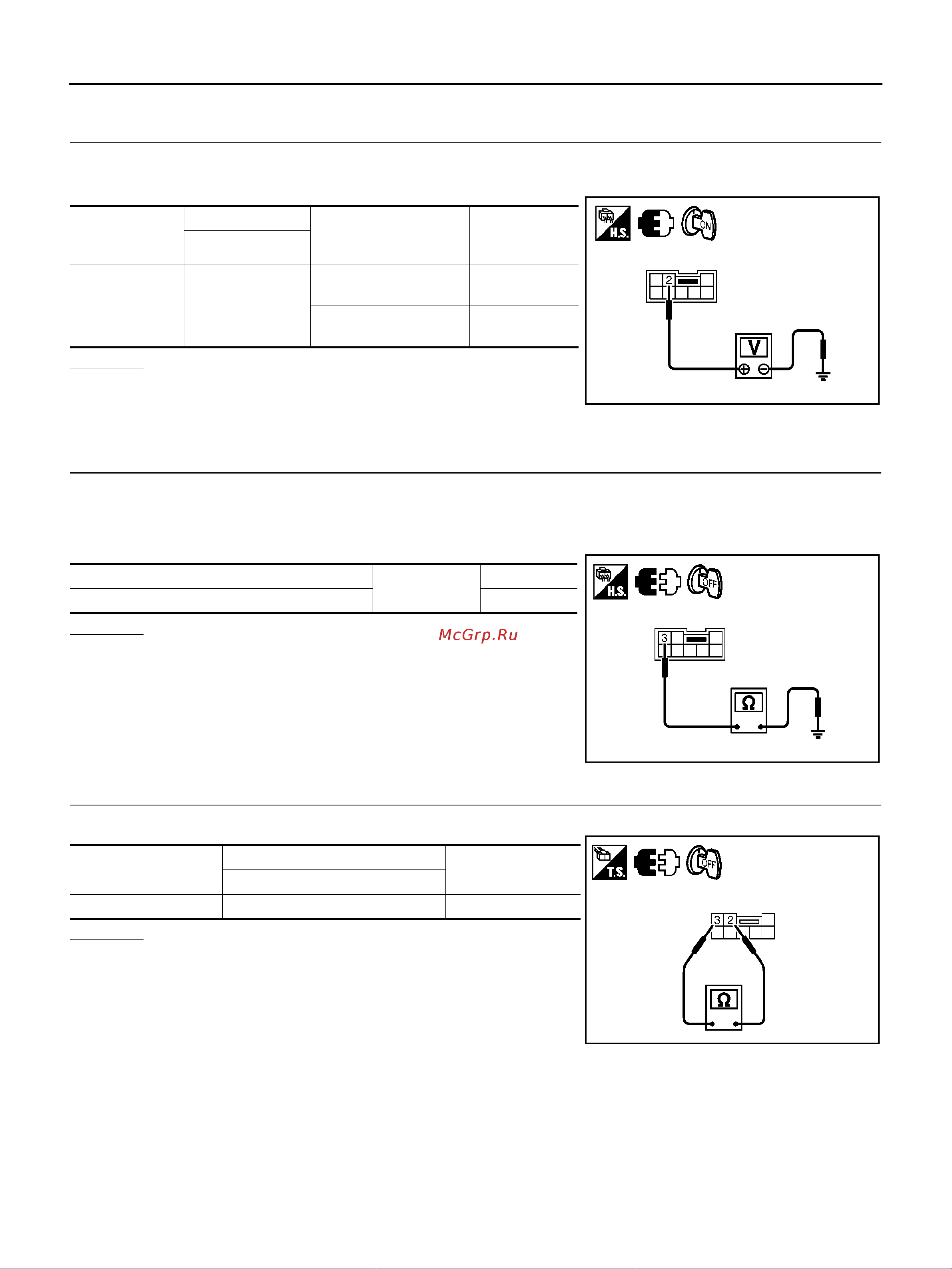

GW-28
REAR WINDOW DEFOGGER
Check Driver Side Door Mirror Defogger Circuit
BIS000N9
1. CHECK DOOR MIRROR DEFOGGER POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between door mirror (driver side) connector and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness between fuse block (J/B) and
door mirror (driver side).
2. CHECK DOOR MIRROR DEFOGGER GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door mirror (driver side) connector.
3. Check continuity between door mirror (driver side) connector and ground.
OK or NG
OK >> GO TO 3
NG >> Repair or replace harness between door mirror (driver
side) and ground.
3. CHECK DOOR MIRROR DEFOGGER
Check continuity between each door mirror connector terminal.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace door mirror (driver side).
Door mirror
(driver side)
connector
Terminal
Condition
Voltage (V)
(Approx.)
(+) (–)
D5 2 Ground
Rear window defogger
switch ON
Battery voltage
Rear window defogger
switch OFF
0
MIIB1364E
Door mirror connector Terminal
Ground
Continuity
D5 (driver side) 3 Yes
MIIB1365E
Door mirror connector
Terminal
Continuity
(+) (–)
D5 (driver side) 2 3 Yes
MIIB1366E
