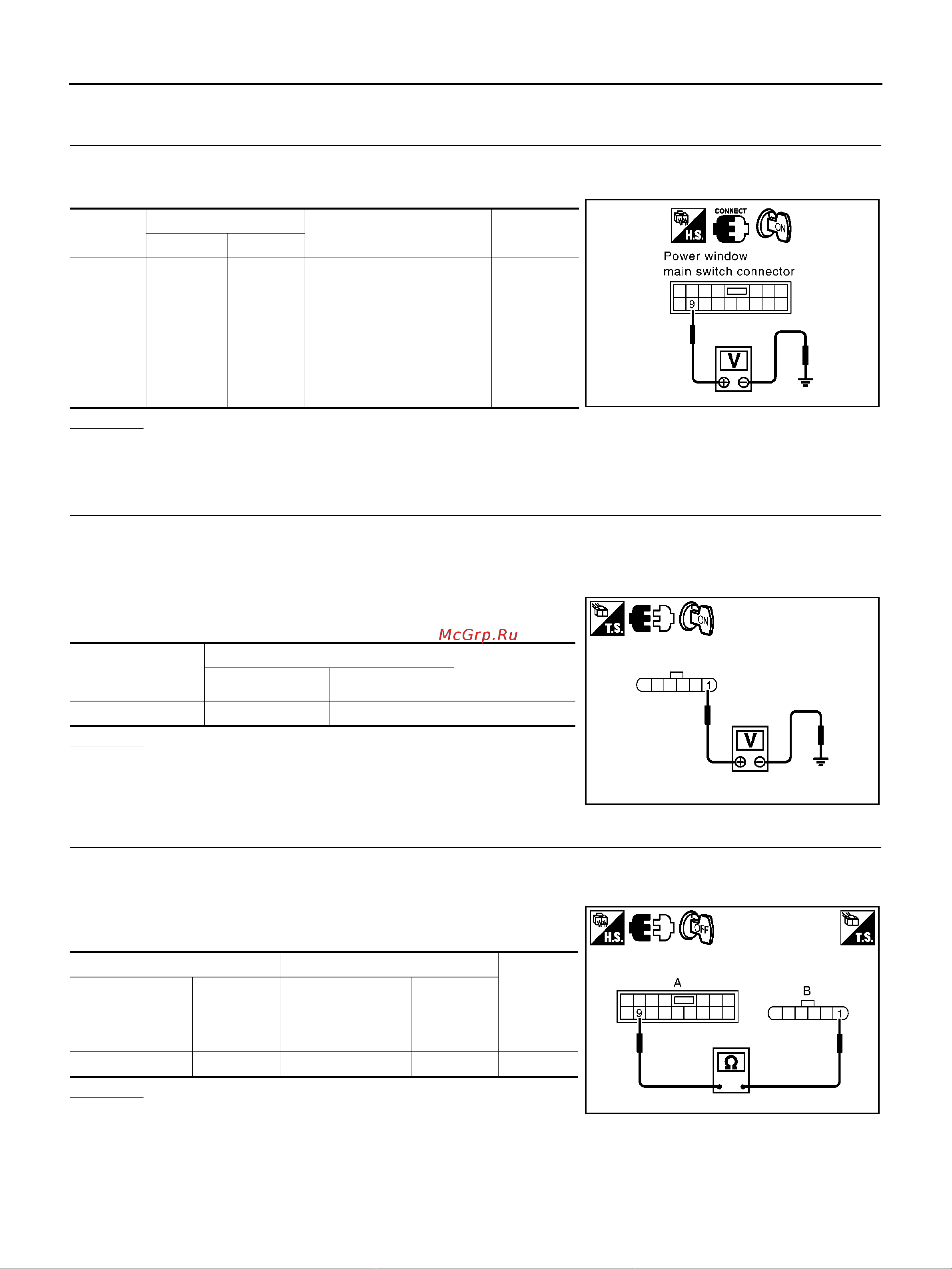

GW-78
POWER WINDOW SYSTEM
WITH RFONT & REAR POWER WINDOW
1. CHECK POWER WINDOW MAIN SWITCH LIMIT SWITCH SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window main switch connector and ground.
OK or NG
OK >> Limit switch circuit is OK.
NG >> GO TO 2.
2. CHECK POWER WINDOW MAIN SWITCH OUTPUT VOLTAGE 1
1. Turn ignition switch OFF.
2. Disconnect front power window motor (driver side) connector.
3. Turn ignition switch ON.
4. Check voltage between front power window motor (driver side)
connector and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK HARNESS CONTINUITY 1
1. Turn ignition switch OFF.
2. Disconnect power window main switch connector.
3. Check continuity between power window main switch connector
and front power window motor (driver side) connector.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
Connector
Terminals (Wire color)
Condition
Voltage [V]
(Approx.)
(+) (-)
D8 9 Ground
Driver side door window is
between fully-open position
and just before fully-closed
position (ON)
0
Driver side door window is
between just before fully-
closed position and fully-
closed position (OFF)
5
PIIA4194E
Front power window
motor (driver side)
connector
Terminal
Voltage [V]
(Approx.)
(+) (–)
D4 1 Ground 5
MIIB1407E
AB
Continuity
Power window
main switch
connector
Ter mina l
Front power
window motor
(driver side)
connector
Terminal
D8 9 D4 1 Yes
MIIB1414E
