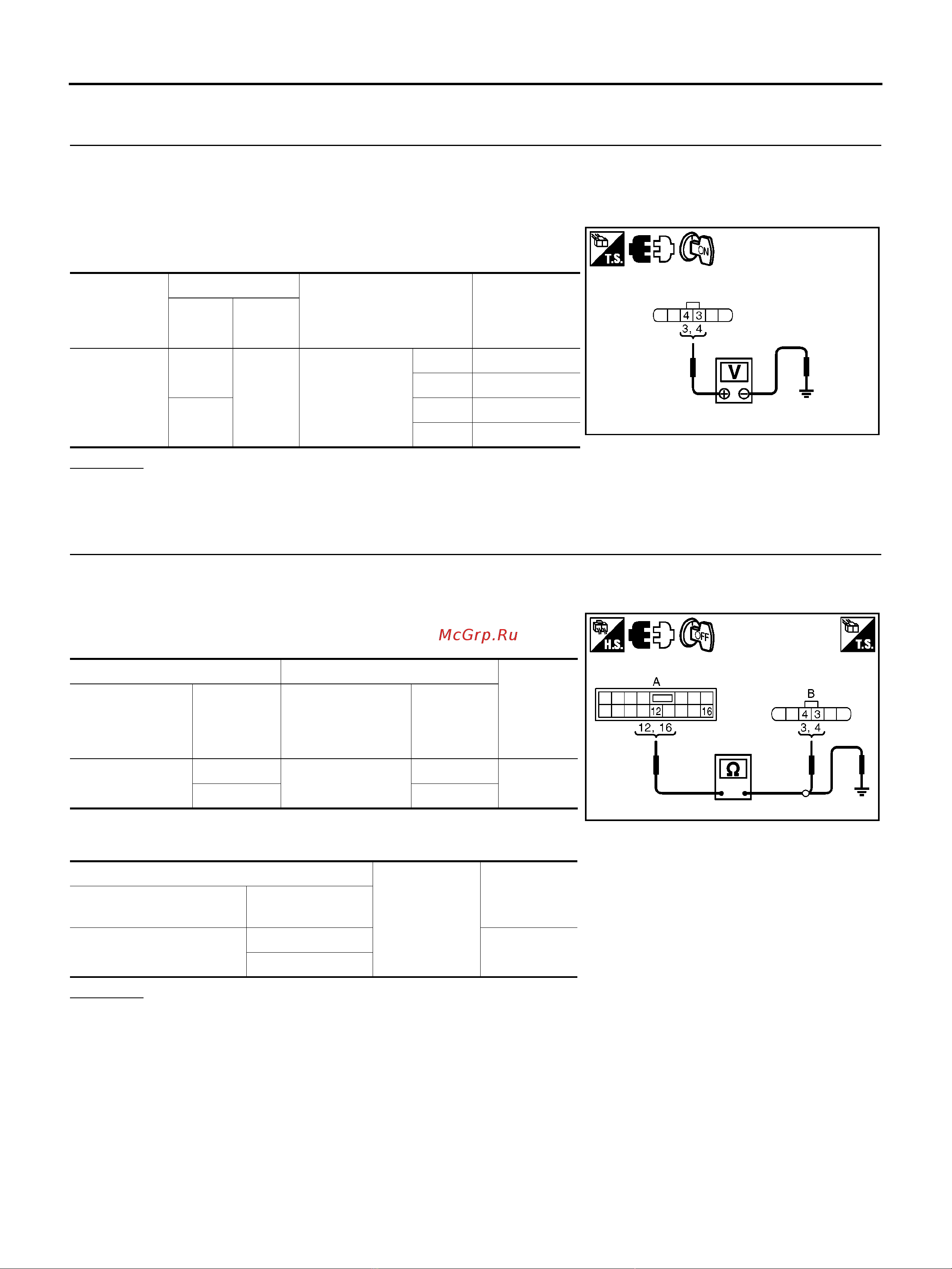

GW-60
POWER WINDOW SYSTEM
WITH FRONT & REAR POWER WINDOW
1. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front power window motor (driver side) connector.
3. Turn ignition switch ON.
4. Check voltage between front power window motor (driver side)
connector and ground.
OK or NG
OK >> Replace front power window motor (driver side).
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect power window main switch connector.
3. Check continuity between power window main switch connector
and front power window motor (driver side) connector.
4. Check continuity between power window main switch connector
and ground.
OK or NG
OK >> Replace power window motor.
NG >> Repair or replace harness between power window main switch and front power window motor
(driver side).
Front power
window motor
(driver side)
connector
Terminal
Condition
Voltage [V]
(Approx.)
(+) (–)
D4
3
Ground
Power window
main switch
UP Battery voltage
DOWN 0
4
UP 0
DOWN Battery voltage
MIIB1395E
AB
Continuity
Power window
main switch
connector
Terminal
Front power
window motor
(driver side)
connector
Terminal
D8
12
D4
4
Yes
16 3
A
Ground
Continuity
Power window main
switch connector
Terminal
D8
12
No
16
MIIB1393E
