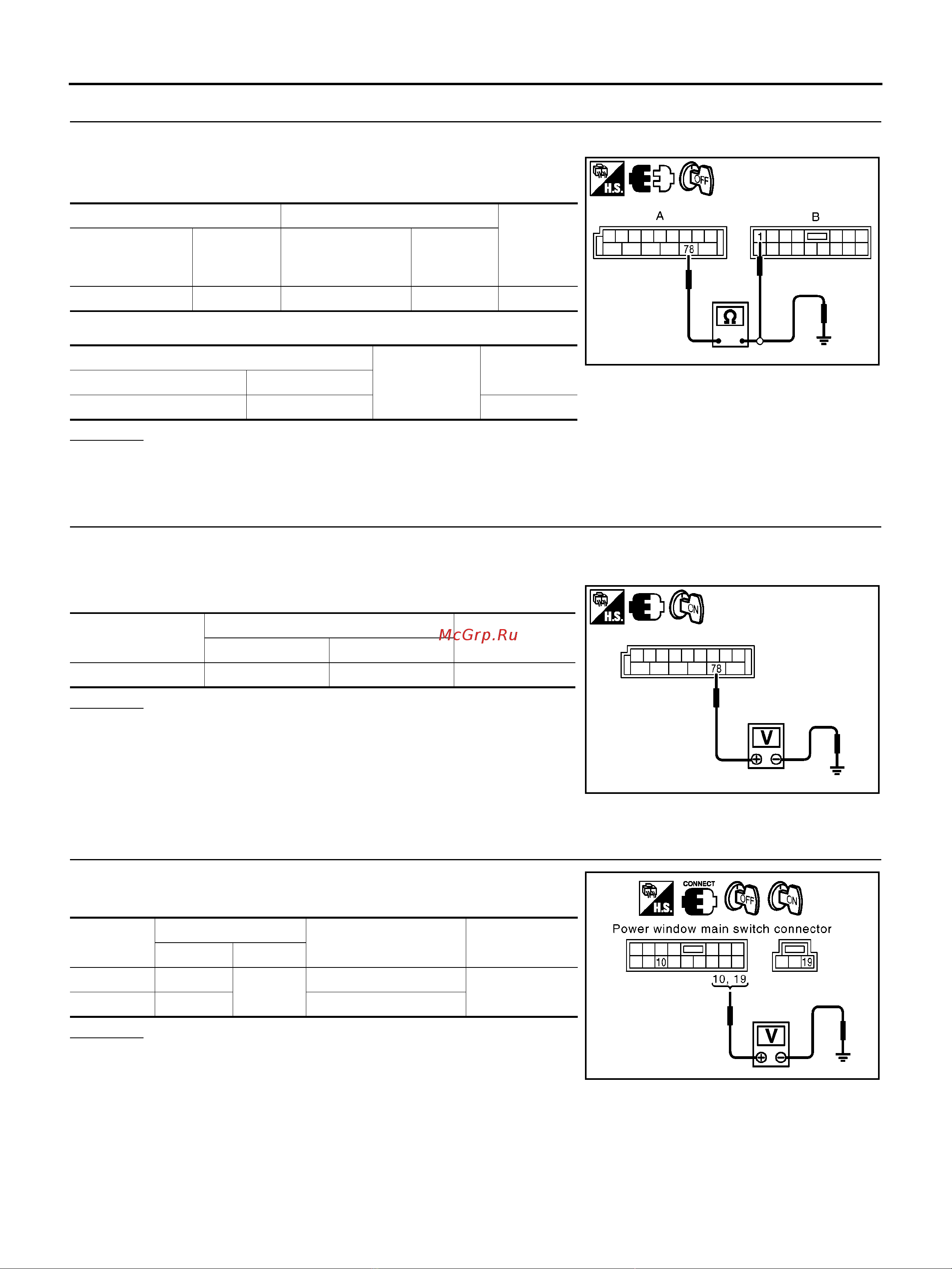

GW-56
POWER WINDOW SYSTEM
3. CHECK HARNESS CONTINUITY
1. Disconnect BCM connector.
2. Check continuity between BCM connector and power window
main switch connector.
3. Check continuity between BCM connector and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Turn ignition switch ON.
3. Check voltage between BCM connector and ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace BCM.
WITH FRONT & REAR POWER WINDOW
1. CHECK POWER SUPPLY CIRCUIT
Check voltage between power window main switch connector D8,
D9 terminal 10, 19 and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
AB
Continuity
BCM connector Terminal
Power window
main switch
connector
Terminal
M59 78 D8 1 Yes
A
Ground
Continuity
BCM connector Terminal
M59 78 No
MIIB1388E
BCM connector
Terminal
Voltage [V]
(Approx.)
(+) (–)
M59 78 Ground Battery voltage
MIIB1394E
Connector
Terminal (Wire color)
Ignition switch condition
Voltage [V]
(Approx.)
(+) (-)
D8 10
Ground
ON
Battery voltage
D9 19 OFF
PIIB1144E
