POWER WINDOW SYSTEM
GW-75
C
D
E
F
G
H
J
K
L
M
A
B
GW

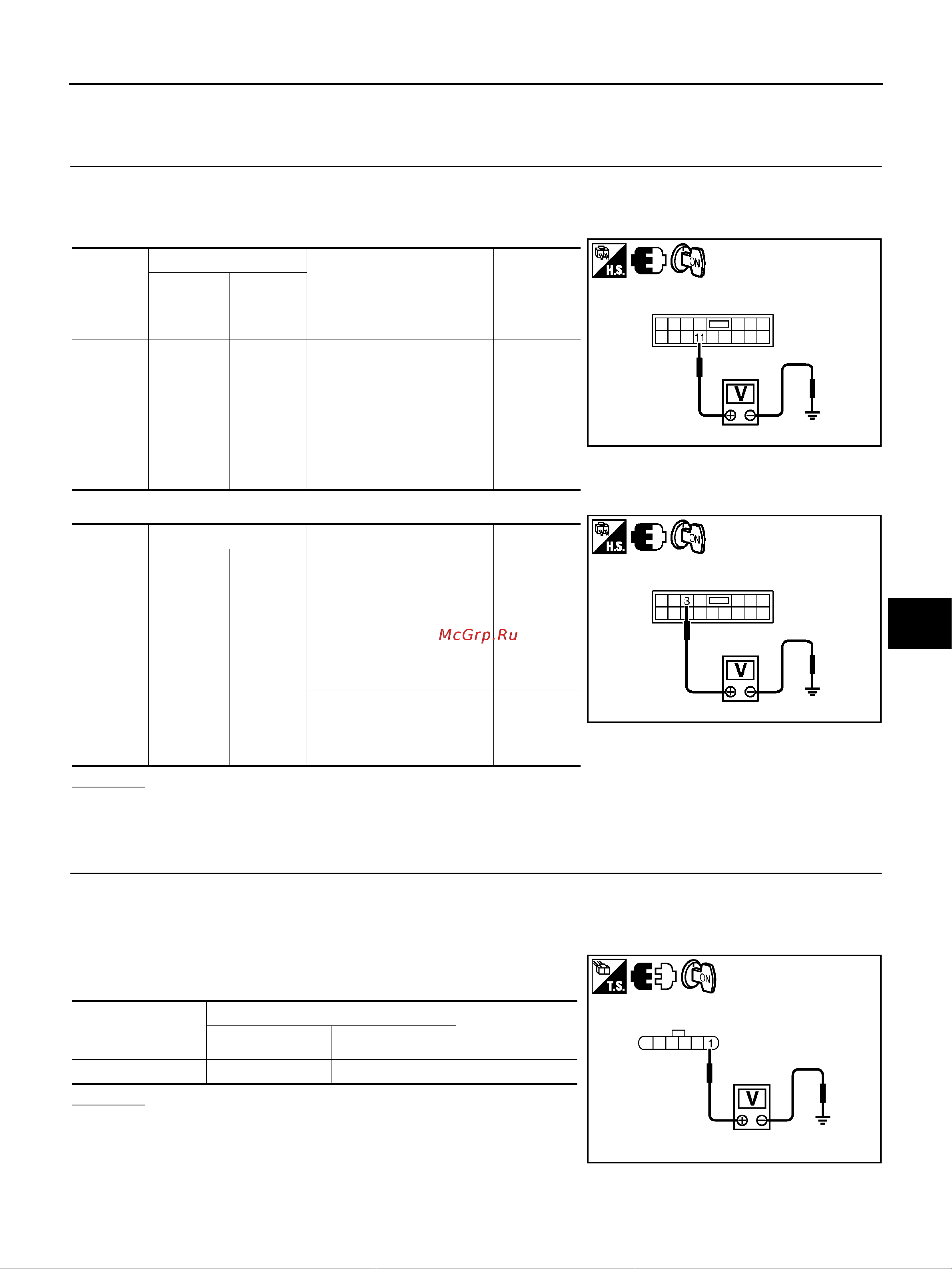

Check Limit Switch Circuit (Driver Side)
BIS000UW
WITH FRONT POWER WINDOW
1. CHECK POWER WINDOW MAIN SWITCH LIMIT SWITCH SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window main switch connector and ground.
[LHD models]
[RHD models]
OK or NG
OK >> Limit switch circuit is OK.
NG >> GO TO 2.
2. CHECK POWER WINDOW MAIN SWITCH OUTPUT VOLTAGE 1
1. Turn ignition switch OFF.
2. Disconnect front power window motor (driver side) connector.
3. Turn ignition switch ON.
4. Check voltage between front power window motor (driver side)
connector and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
Power
window
main
switch
connector
Terminal
Condition
Voltage [V]
(Approx.)
(+) (–)
D8 11 Ground
Driver side door window is
between fully-open position
and just before fully-closed
position (ON)
0
Driver side door window is
between just before fully-
closed position and fully-
closed position (OFF)
5
Power
window
main
switch
connector
Terminal
Condition
Voltage [V]
(Approx.)
(+) (–)
D8 3 Ground
Driver side door window is
between fully-open position
and just before fully-closed
position (ON)
0
Driver side door window is
between just before fully-
closed position and fully-
closed position (OFF)
5
MIIB1406E
MIIB1411E
Front power window
motor (driver side)
connector
Terminal
Voltage [V]
(Approx.)
(+) (–)
D4 1 Ground 5
MIIB1407E
