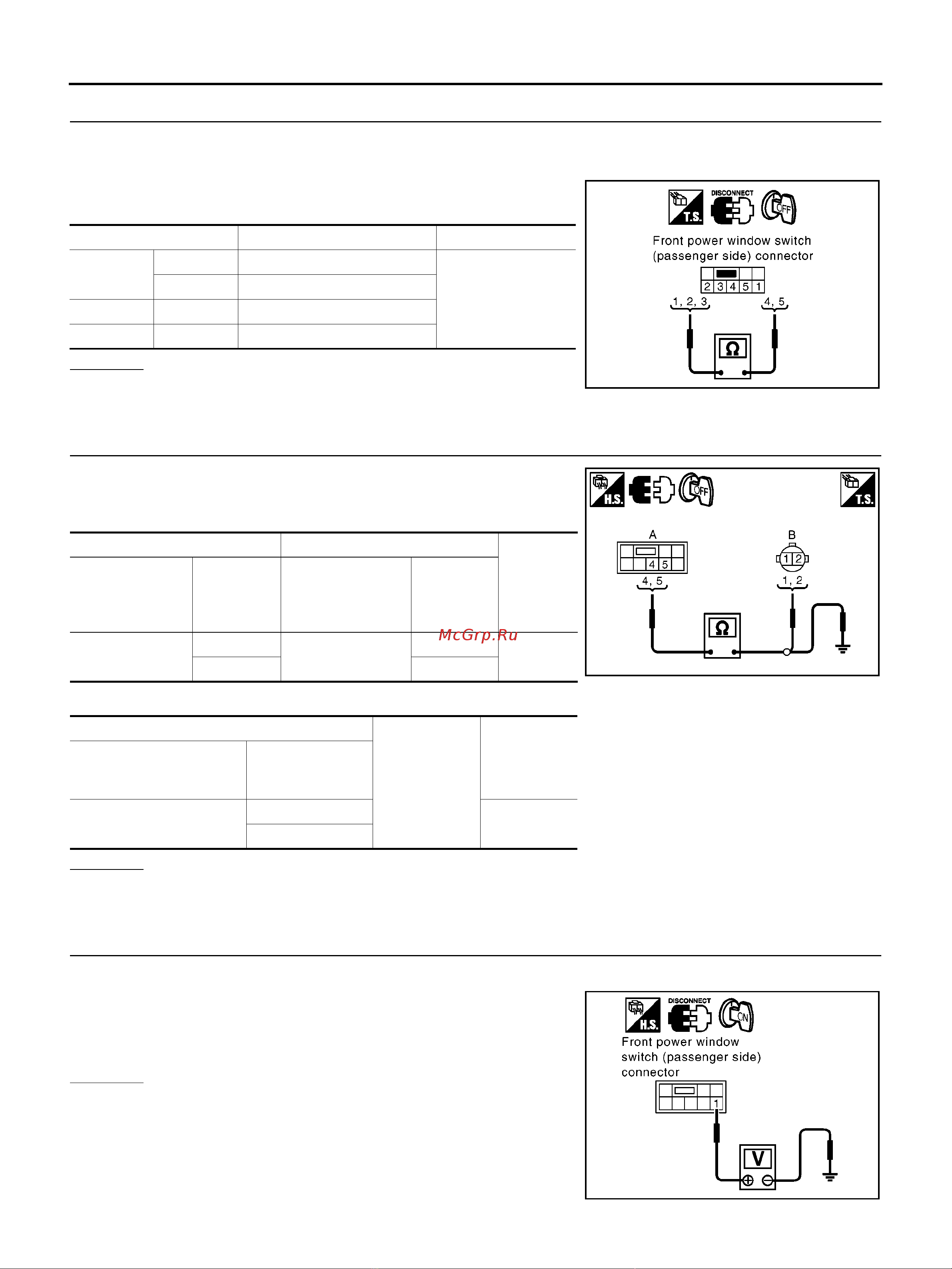

GW-66
POWER WINDOW SYSTEM
2. CHECK FRONT POWER WINDOW SWITCH
1. Turn ignition switch OFF.
2. Disconnect front power window switch (passenger side) connector.
3. Check continuity between front power window switch (passen-
ger side) terminal 1, 2, 3 and 4, 5.
OK or NG
OK >> GO TO 3.
NG >> Replace front power window switch (passenger side).
3. CHECK HARNESS CONTINUITY 1
1. Check continuity between front power window switch (passen-
ger side) connector and front power window motor (passenger
side) connector.
2. Check continuity between front power window switch (passenger side) connector and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK FRONT POWER WINDOW SWITCH POWER SUPPLY
1. Turn ignition switch ON.
2. Check voltage between front power window switch (passenger
side) connector D27 terminal 1 and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
Terminals Switch condition Continuity
1
5UP
Yes
4DOWN
2 5 No operation
3 4 No operation
PIIB0612E
AB
Continuity
Front power
window switch
(passenger side)
connector
Terminal
Front power
window motor
(passenger side)
connector
Terminal
D27
4
D23
1
Yes
52
A
Ground
Continuity
Front power window switch
(passenger side)
connector
Terminal
D27
4
No
5
MIIB1398E
1 – Ground : Battery voltage
PIIB0608E
