REAR DOOR GLASS AND REGULATOR
GW-93
C
D
E
F
G
H
J
K
L
M
A
B
GW
REAR DOOR GLASS AND REGULATOR PFP:82300
Removal and Installation
BIS000O2
DOOR GLASS
Removal
1. Fully open door glass.
2. Remove rear door finisher. Refer to EI-20, "
DOOR FINISHER" .
3. Remove pull handle bracket.
4. Remove rear speaker harness connector.
5. Remove inner corner cover.
6. Remove sealing screen.
NOTE:
If sealing screen is reused, cut butyl tape in a way that leaves it on sealing screen.
7. Remove lower sash (rear) bolts, and remove lower sash (rear).
8. While supporting door glass, operate power window switch to
raise/lower door glass until glass bolts can be seen.
9. Remove door glass bolts.
10. Pull door glass up to remove it.

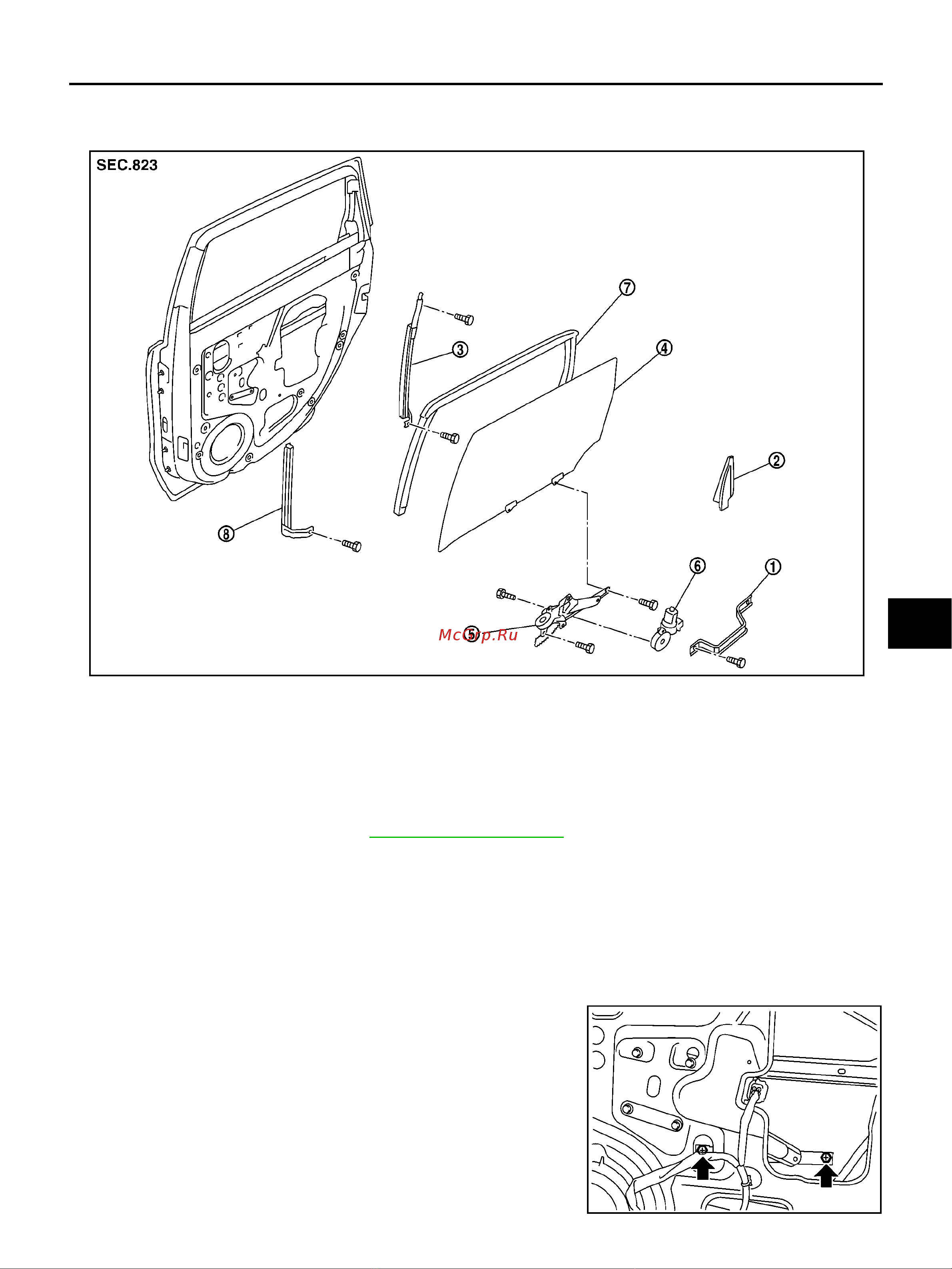

1. Pull handle bracket 2. Corner inner cover 3. Lower sash (rear)
4. Door glass 5. Regulator assembly 6. Power window motor
7. Door glass run 8. Lower sash (front)
PIIB5346J
PIIB5348J
