POWER WINDOW SYSTEM
GW-79
C
D
E
F
G
H
J
K
L
M
A
B
GW

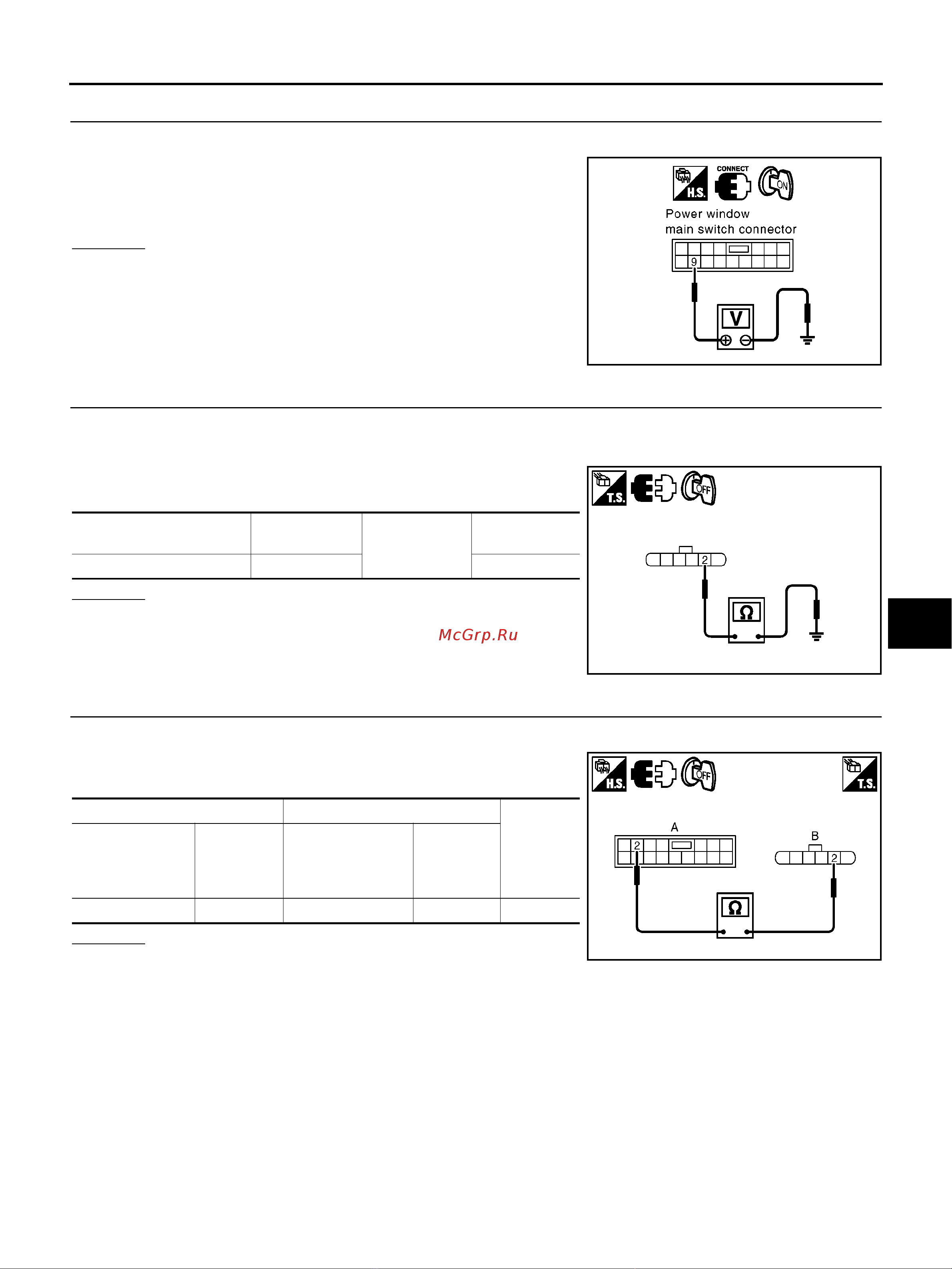

4. CHECK POWER WINDOW MAIN SWITCH OUTPUT VOLTAGE 2
1. Turn ignition switch ON.
2. Check voltage between power window main switch connector
D8 terminal 9 and ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace power window main switch.
5. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front power window motor (driver side) connector.
3. Check continuity between front power window motor (driver
side) connector and ground.
OK or NG
OK >> Replace front power window motor (driver side).
NG >> GO TO 6.
6. CHECK HARNESS CONTINUITY 2
1. Disconnect power window main switch connector.
2. Check continuity between power window main switch connector
and front power window motor (driver side) connector.
OK or NG
OK >> Replace power window main switch.
NG >> Repair or replace harness.
9 – Ground : Approx. 5V
PIIA4194E
Front power window motor
(driver side) connector
Terminal
Ground
Continuity
D4 2 Yes
MIIB1409E
AB
Continuity
Power window
main switch
connector
Terminal
Front power
window motor
(driver side)
connector
Terminal
D8 2 D4 2 Yes
MIIB1415E
