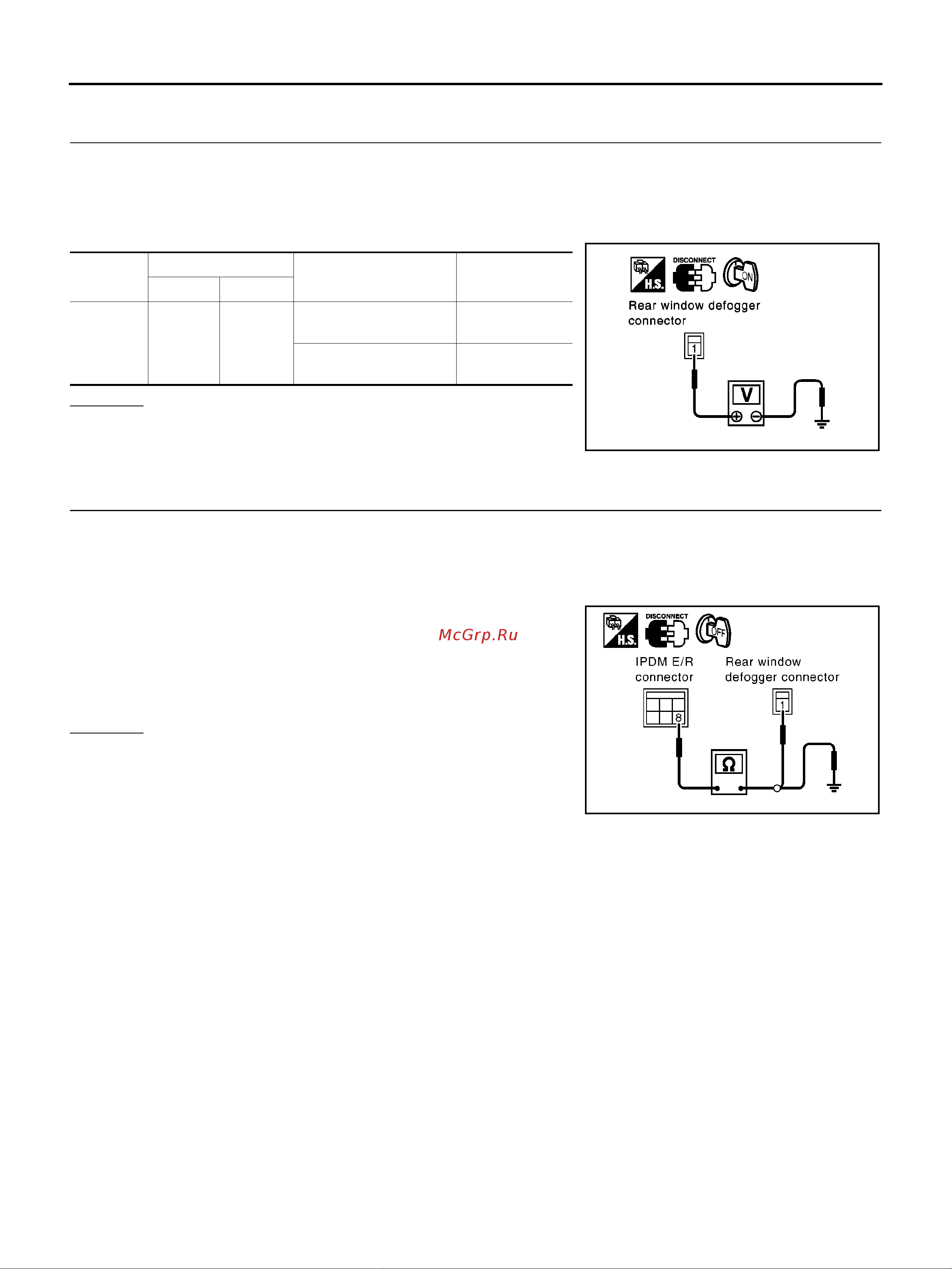

GW-26
REAR WINDOW DEFOGGER
Check Rear Window Defogger Circuit
BIS000N7
1. CHECK REAR WINDOW DEFOGGER POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear window defogger connector.
3. Turn ignition switch ON.
4. Check voltage between rear window defogger connector and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness between IPDM E/R and rear
window defogger.
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R connector E11 terminal 8 and rear window defogger connector B49
terminal 1.
4. Check continuity between IPDM E/R connector E11 terminal 8
and ground.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Repair or replace harness.
Connector
Terminal (Wire color)
Condition
Voltage (V)
(Approx.)
(+) (–)
B49 1 Ground
Rear window defogger
switch ON.
Battery voltage
Rear window defogger
switch OFF.
0
PIIA4234E
8 – 1 :Continuity should exist.
8 – Ground :Continuity should not exist.
MIIB0097E
