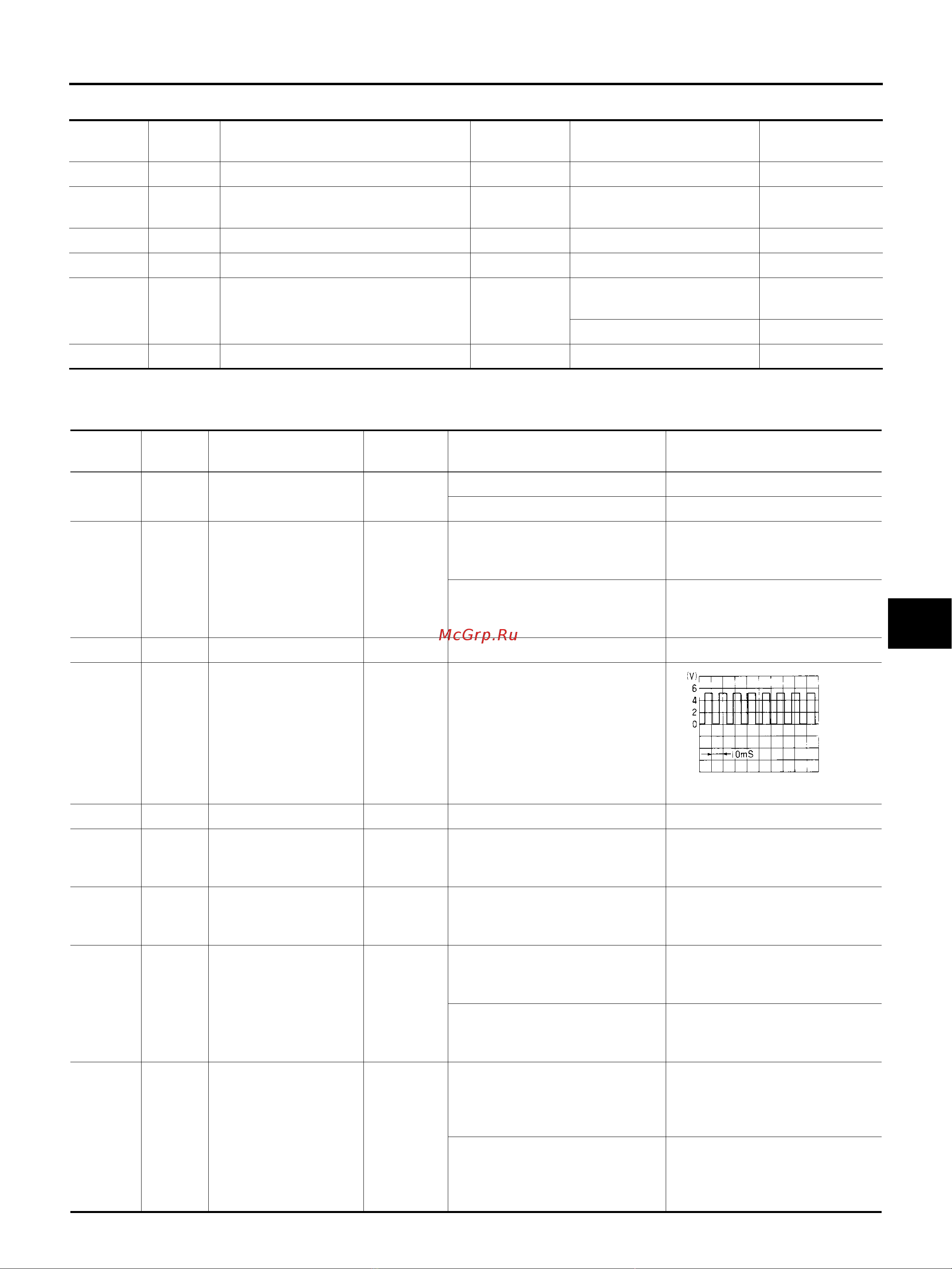

POWER WINDOW SYSTEM
GW-49
C
D
E
F
G
H
J
K
L
M
A
B
GW
Terminal and Reference Value for BCM
BIS000UM
Terminal and Reference Value for Power Window Main Switch/With Front Power
Window (For LHD Models)
BIS000V4
Terminal
Wire
color
Item
Signal
input/output
Condition
Voltage [V]
(Approx.)
2 B Ground — Ignition switch ON 0
24 O Ignition switch (ON or START) Input
Ignition switch
(ON or START position)
Battery voltage
70 B Ground (power) — Ignition switch ON 0
74 Y Battery power supply (BCM) Input — Battery voltage
78 L Power window power supply (IGN) Output
Ignition switch
(ON or START position)
Battery voltage
Other than above 0
79 Y Battery power supply (power window) Input — Battery voltage
Terminal
Wire
color
Item
Signal
input/output
Condition
Voltage [V]
(Approx.)
1 W Rap signal Input
Ignition switch ON Battery voltage
Ignition switch OFF 0
2W
Front power window
motor (passenger side)
UP signal
Output
When passenger side switch in
power window main switch is
operated in UP position.
Battery voltage
Other than above
(Power window lock switch is
unlock position.)
0
3 G Encoder power supply Output Ignition switch ON 10
4 W Encoder pulse signal Input
When power window motor
operates.
5 W Battery power supply Input — Battery voltage
6R
Front power window
motor (driver side) UP
signal
Output
When driver side switch in
power window main switch is
operated in UP position.
Battery voltage
7GR
Front power window
motor (driver side)
DOWN signal
Output
When driver side switch in
power window main switch is
operated in DOWN position.
Battery voltage
9W
Front power window
motor (passenger side)
DOWN signal
Output
When passenger side switch in
power window main switch is
operated in DOWN position.
Battery voltage
Other than above
(Power window lock switch is
unlock position.)
0
11 V Limit switch signal Input
Driver side door window is
between fully-open position and
just before fully-closed position
(ON)
0
Driver side door window is
between just before fully-closed
position and fully-closed position
(OFF)
5
