REAR WINDOW DEFOGGER
GW-29
C
D
E
F
G
H
J
K
L
M
A
B
GW

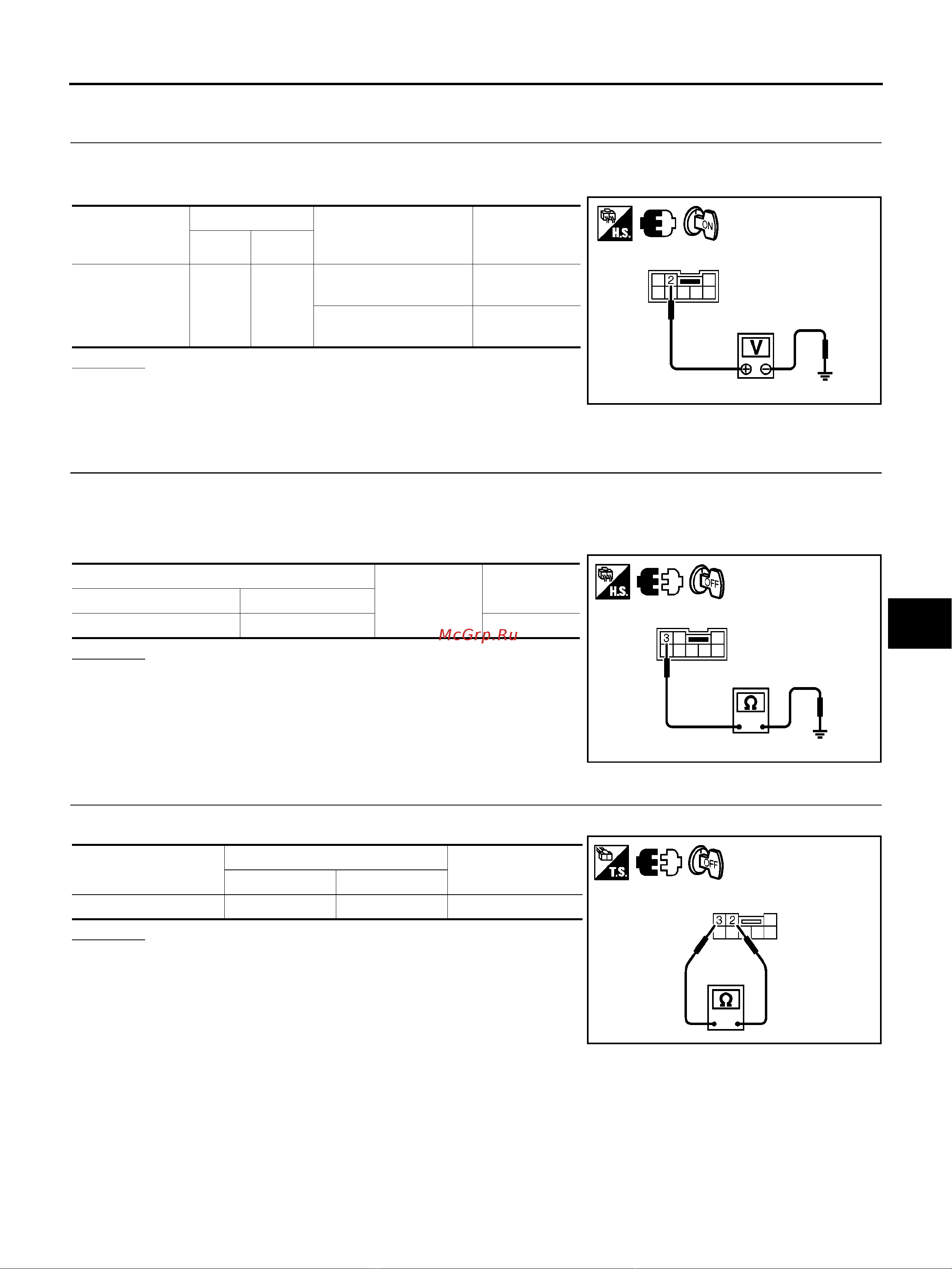

Check Passenger Side Door Mirror Defogger Circuit
BIS000NA
1. CHECK DOOR MIRROR DEFOGGER POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between door mirror (passenger side) connector and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness between fuse block (J/B) and
door mirror (passenger side).
2. CHECK DOOR MIRROR DEFOGGER GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door mirror (passenger side) connector.
3. Check continuity between door mirror (passenger side) connector and ground.
OK or NG
OK >> GO TO 3
NG >> Repair or replace harness between door mirror (passen-
ger side) and ground.
3. CHECK DOOR MIRROR DEFOGGER
Check continuity between each door mirror connector terminal.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace door mirror (passenger side).
Door mirror
(passenger side)
connector
Terminal
Condition
Voltage (V)
(Approx.)
(+) (–)
D25 2 Ground
Rear window defogger
switch ON
Battery voltage
Rear window defogger
switch OFF
0
MIIB1364E
A
Ground
Continuity
Door mirror connector Terminal
D5 (passenger side) 3 Yes
MIIB1365E
Door mirror connector
Terminal
Continuity
(+) (–)
D5 (passenger side) 2 3 Yes
MIIB1366E
