GW-68
POWER WINDOW SYSTEM
7. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Connect power window main switch connector.
2. Turn ignition switch ON.
3. Check voltage between power window main switch connector
and ground when operating passenger side switch in power win-
dow main switch.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace power window main switch.

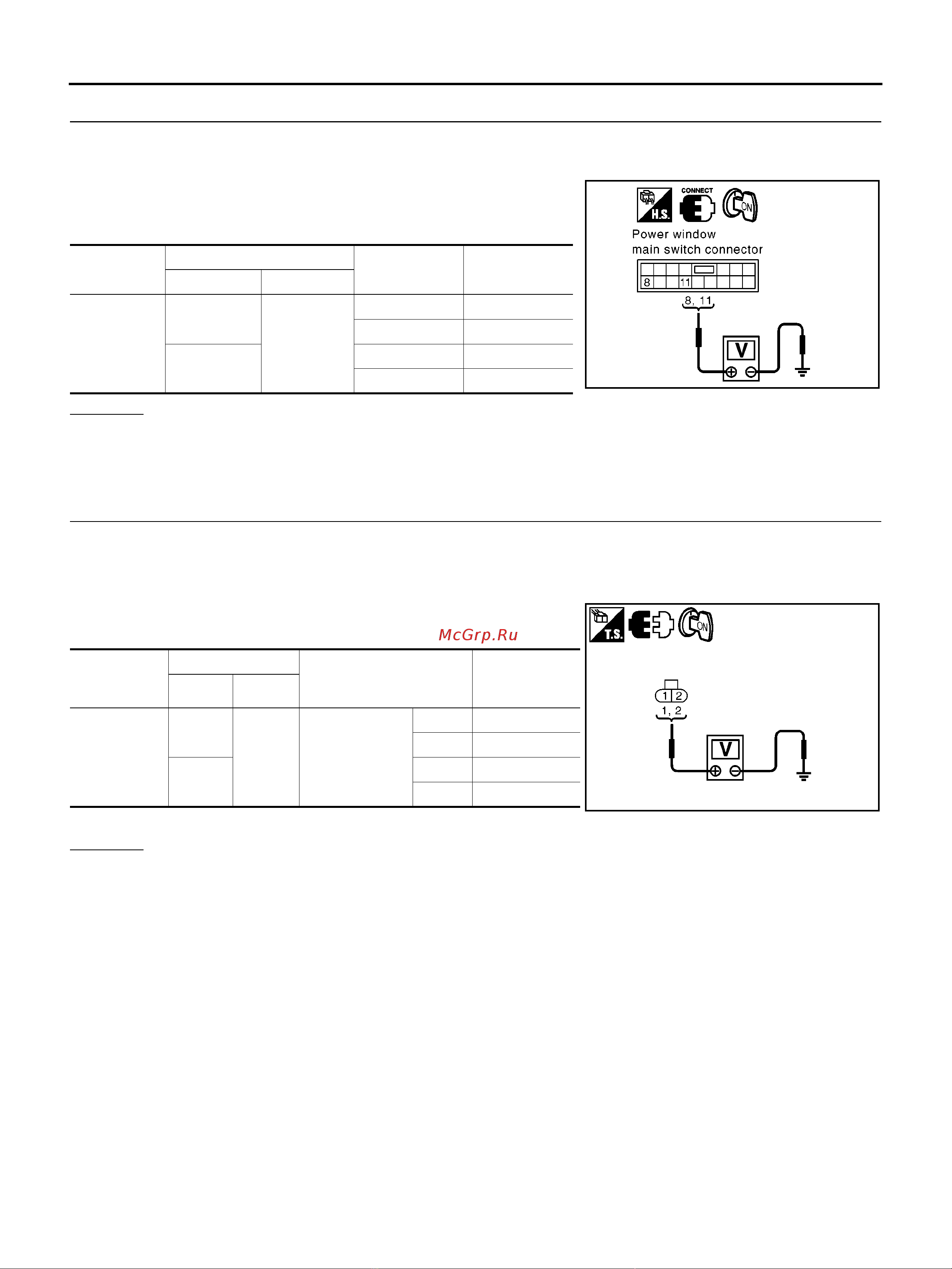

Check Rear Power Window Motor RH Circuit
BIS000UU
1. CHECK POWER WINDOW SWITCH OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect rear power window motor RH connector.
3. Turn ignition switch ON.
4. Check voltage between rear power window motor RH connector
and ground.
*: Power window main switch or rear power window switch RH.
OK or NG
OK >> Replace rear power window motor RH.
NG >> GO TO 2.
Connector
Terminals (Wire color)
Switch
condition
Voltage [V]
(Approx.)
(+) (-)
D8
8
Ground
UP Battery voltage
DOWN 0
11
UP 0
DOWN Battery voltage
PIIB0610E
Rear power
windowmotor
RH connector
Terminal
Condition
Voltage [V]
(Approx.)
(+) (–)
D64
1
Ground Switch*
UP 0
DOWN Battery voltage
2
UP Battery voltage
DOWN 0
MIIB1404E
