POWER WINDOW SYSTEM
GW-85
C
D
E
F
G
H
J
K
L
M
A
B
GW
WITH FRONT & REAR POWER WINDOW

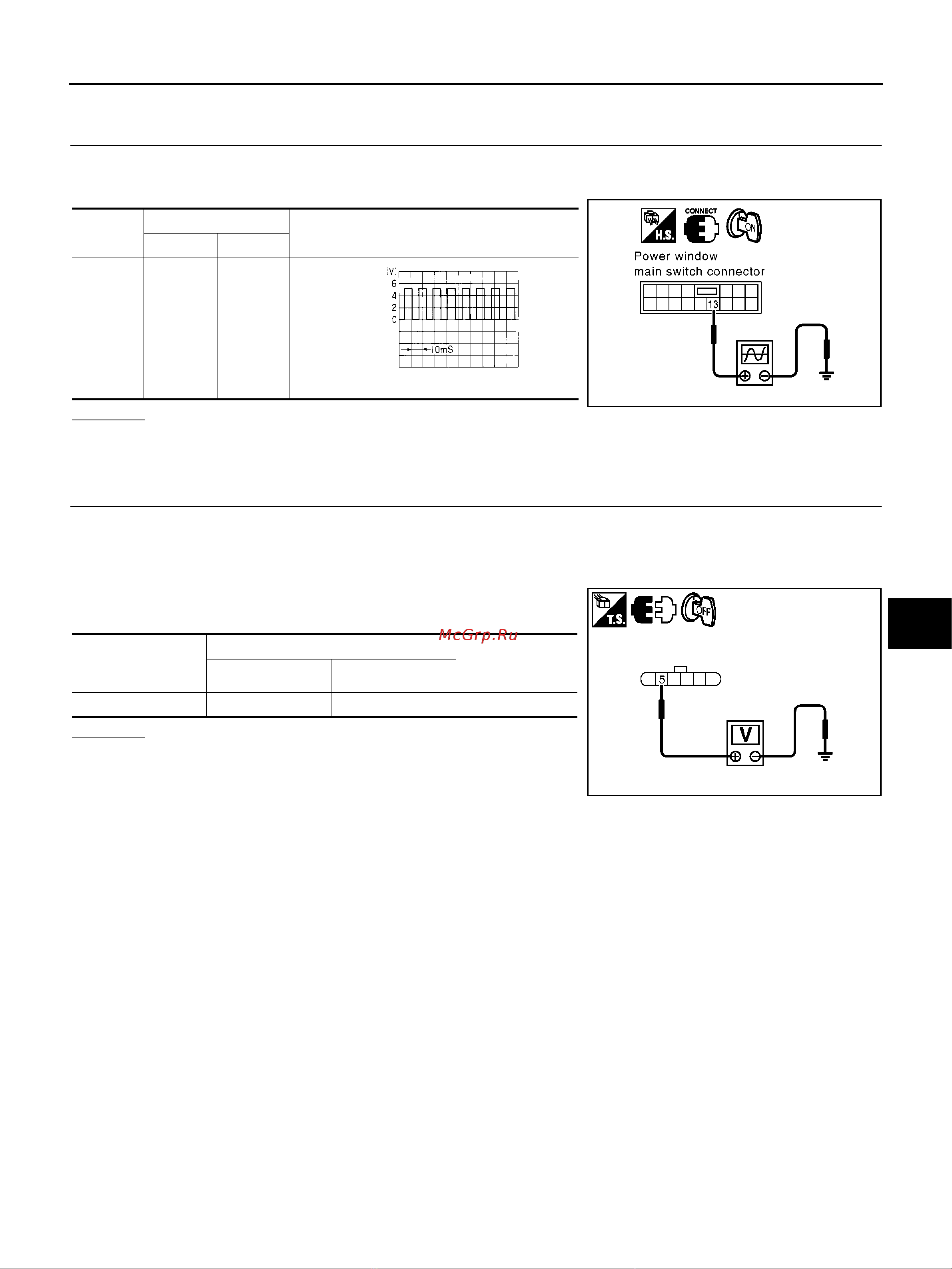

1. CHECK ENCODER SIGNAL
1. Turn ignition switch ON.
2. Check signal between power window main switch connector and ground with oscilloscope.
OK or NG
OK >> Encoder circuit is OK.
NG >> GO TO 2.
2. CHECK ENCODER POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect front power window motor (driver side) connector.
3. Turn ignition switch ON.
4. Check voltage between front power window motor (driver side)
connector and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
Connec-
tor
Terminals (Wire color)
Condition
Signal
(Reference value)
(+) (-)
D8 13 Ground opening
PIIA4205E
OCC3383D
Front power window
motor (driver side)
connector
Terminal
Voltage [V]
(Approx.)
(+) (–)
D4 5 Ground 10
MIIB1417E
