REAR WINDOW DEFOGGER
GW-27
C
D
E
F
G
H
J
K
L
M
A
B
GW

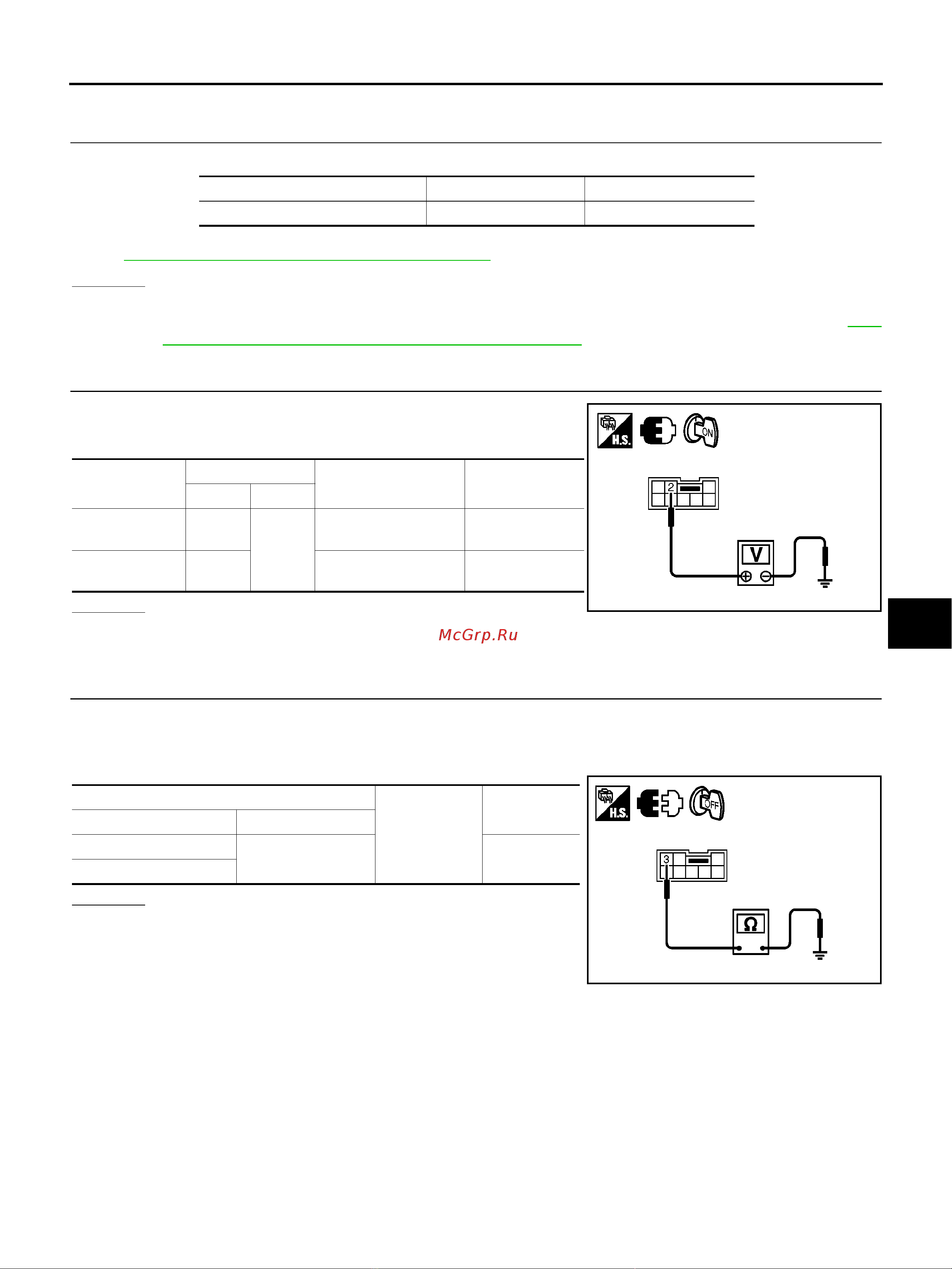

Check Door Mirror Defogger Power Supply Circuit
BIS000N8
1. CHECK FUSE
Check if any of the following fuse for Fuse block (J/B) are blown.
NOTE:
Refer to GW-12, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse, refer to GW-
12, "Component Parts and Harness Connector Location" .
2. CHECK DOOR MIRROR DEFOGGER POWER SUPPLY CIRCUIT 1
1. Turn ignition switch ON.
2. Check voltage between door mirror connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness between IPDM E/R and door mirror.
3. CHECK DOOR MIRROR DEFOGGER GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door mirror connector.
3. Check continuity between door mirror connector and ground.
OK or NG
OK >> INSPECTION END.
NG >> Repair or replace harness.
COMPONENT PARTS AMPERE FUSE NO.
Fuse block (J/B) 10A #2
Door mirror
connector
Terminal
Condition
Voltage (V)
(Approx.)
(+) (–)
D5
(driver side)
2
Ground
Rear window defogger
switch ON
Battery voltage
D25
(passenger side)
2
Rear window defogger
switch OFF
0
MIIB1364E
A
Ground
Continuity
Door mirror connector Terminal
D5 (driver side)
3Yes
D25 (passenger side)
MIIB1365E
