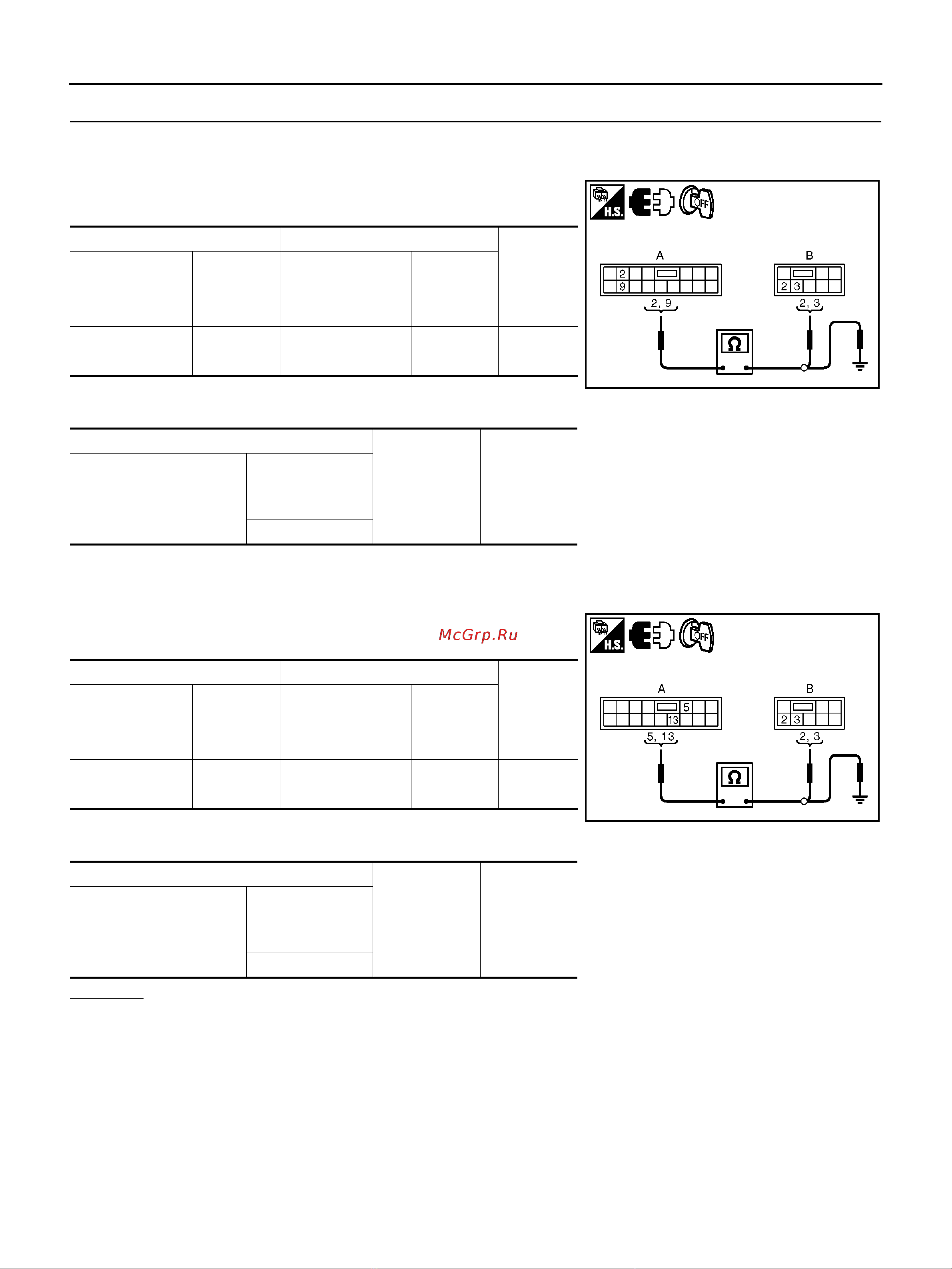

GW-64
POWER WINDOW SYSTEM
6. CHECK HARNESS CONTINUITY 3
[LHD models]
1. Disconnect power window main switch connector.
2. Check continuity between power window main switch connector
and front power window switch (passenger side) connector.
3. Check continuity between power window main switch connector
and ground.
[RHD models]
1. Disconnect power window main switch connector.
2. Check continuity between power window main switch connector
and front power window switch (passenger side) connector.
3. Check continuity between power window main switch connector
and ground.
OK or NG
OK >> GO TO 7.
NG >> Repair or replace harness.
AB
Continuity
Power window
main switch
connector
Terminal
Front power
window switch
(passenger side)
connector
Terminal
D8
2
D27
2
Yes
93
A
Ground
Continuity
Power window main
switch connector
Terminal
D8
2
No
9
MIIB1400E
AB
Continuity
Power window
main switch
connector
Terminal
Front power
window switch
(passenger side)
connector
Terminal
D8
13
D27
2
Yes
53
A
Ground
Continuity
Power window main
switch connector
Terminal
D8
13
No
5
MIIB1402E
