GW-104
INSIDE MIRROR
INSIDE MIRROR
PFP:96321

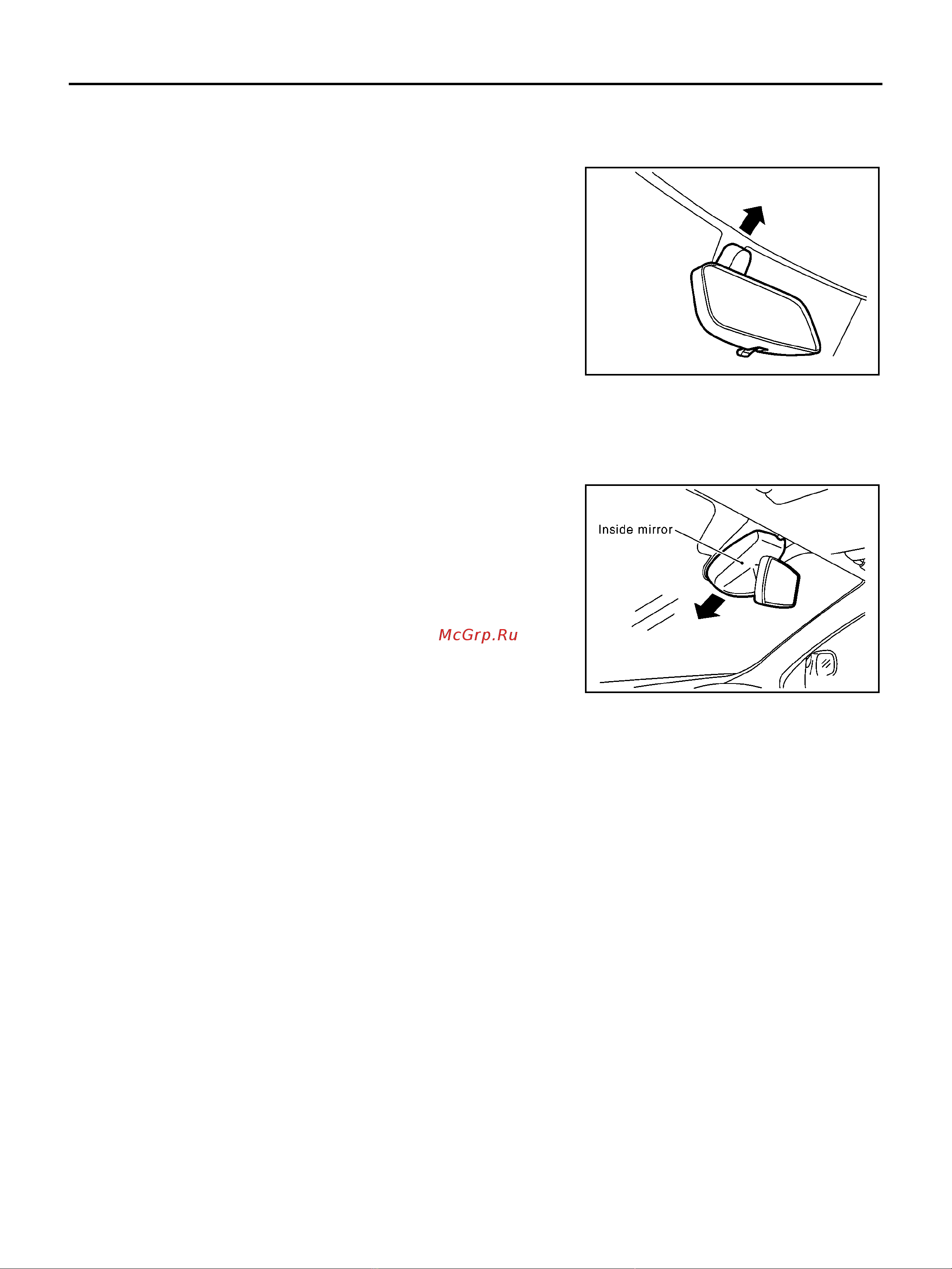

Removal and Installation
BIS000O7
REMOVAL
Pull the inside mirror upward to remove it.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation (With Rain Sensor)
BIS000O8
REMOVAL
Slide the inside mirror downward to remove.
INSTALLATION
Install in the reverse order of removal.
MIIB1057E
MIIB0991E
