VTS WING II W100 EC [27/236] Horizontal assembly with using instalation handles

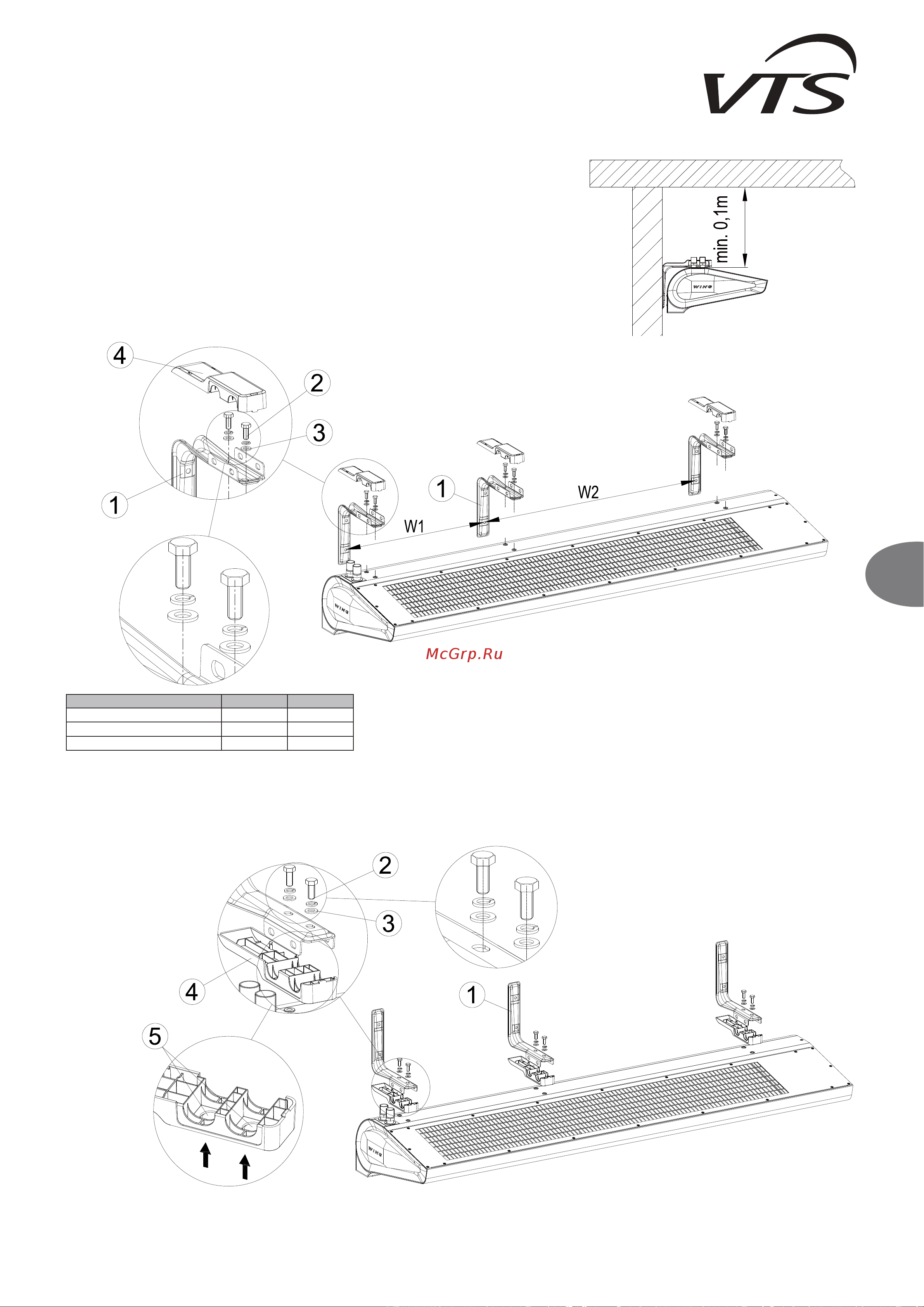

3.2.1. HORIZONTAL ASSEMBLY WITH USING INSTALATION HANDLES.

It is possible to assemble WING do the wall horizontally in two options:

OPTION I: Assembling handles with their arms faced downwards. In this option you should rst screw the installation handles to

the wall (1) with intervals W1 for a 1m curtain (there are 2 installation hanles) and W1, W2 for 1.5m and 2m curtain (there are 3

installation handles) so that the handles' arms are levelled.

Then lift the curtain and assembly with using screws (2) M8x20 and plain washers (3). Tighten the screws (2) and close the

handle's covers (4).

ATTENTION! The minimum distance between the unit and the ceiling should be 0.3m.

OPTION II: Assembling handles with their arms faced upwards.

Assembly consists in screwing brackets to the curtain (1). To mount the brackets to the curtain, with the housing upside down, punch holes (5) from the outside in the shields (4) using a hammer and a

screw. Click the shields on the brackers (1). Mount the brackets on the curtain using M8x20mm screws (2) and washers (3). This assembly option allows for mounting brackets to the curtain rst, and

then screwing the entire housing to the wall.

ATTENTION! The minimum distance between the unit and the ceiling should be 0.1m.

W1 [mm] W2 [mm]

WING W, E, C100 772 -

WING W, E, C150 507 772

WING W, E, C200 921 910
