Chapter 5. Device Management
89

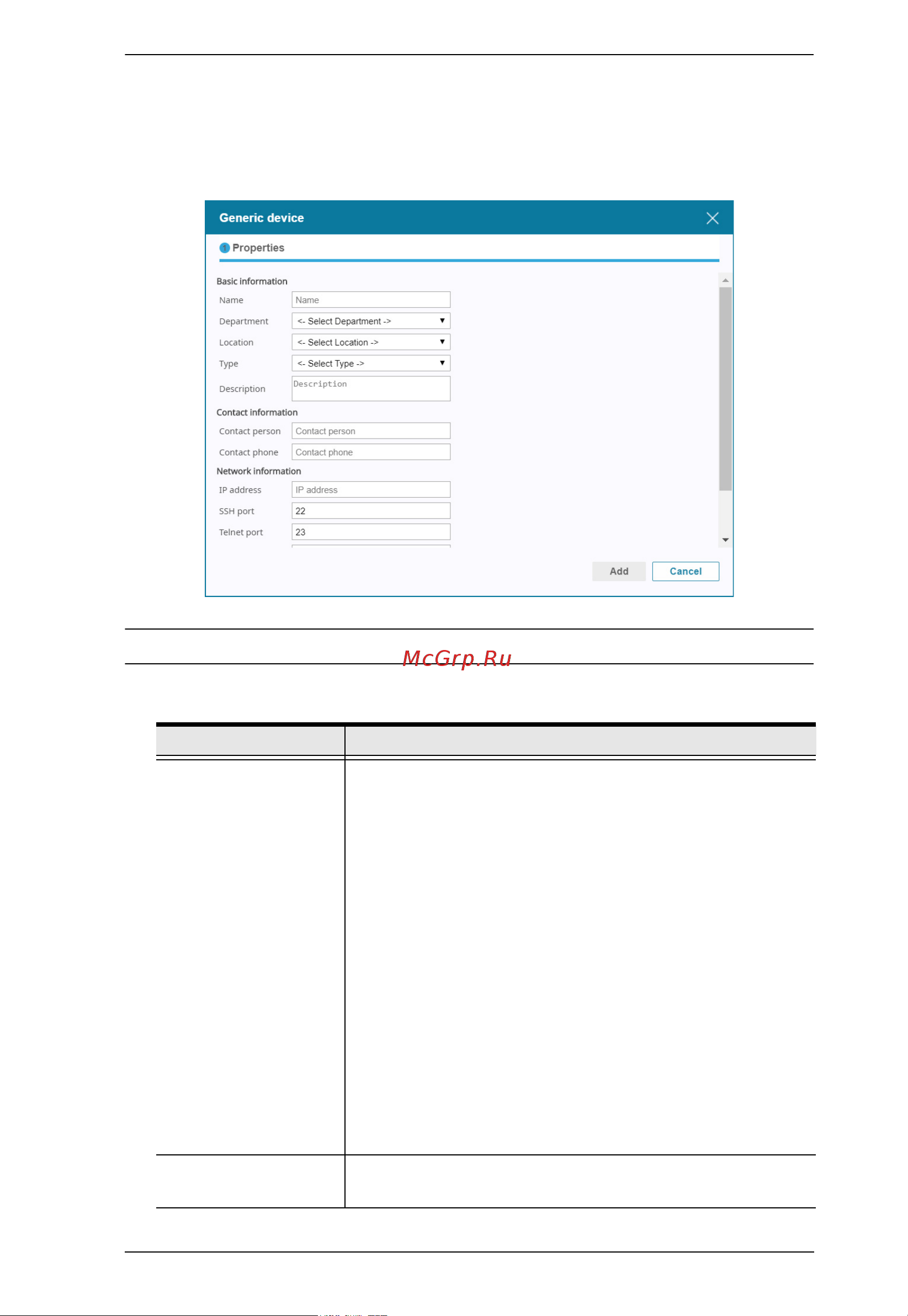

Adding a Generic Device
This item refers to adding Generic device into the CC2000 management
system:
Note: See Generic Device, page 60 for an explanation of generic devices.
1. Fill in the fields according to the information provided in the table below:
Field Information
Basic Information Name: Provide a name to identify the device.
Department: For organizational purposes, you can
establish department categories (R&D, for example), and
assign devices to them (see Category Management on
page 106). If you wish to assign this device to a
department, drop down the list of departments (you have
previously created), and click on the one you want the
device to belong to.
Location: For organizational purposes, you can establish
location categories (West Coast, for example), and assign
devices to them (see Category Management on page 106).
If you wish to assign this device to a location, drop down
the list of locations (you have previously created), and click
on the one you want the device to belong to.
Type: Use the drop-down menu to select the type of device
it is.
Description: If you wish to provide extra information to
describe the device, enter it here. This field is optional.
Contact Information The name and telephone number of the device
administrator. These fields are optional.
