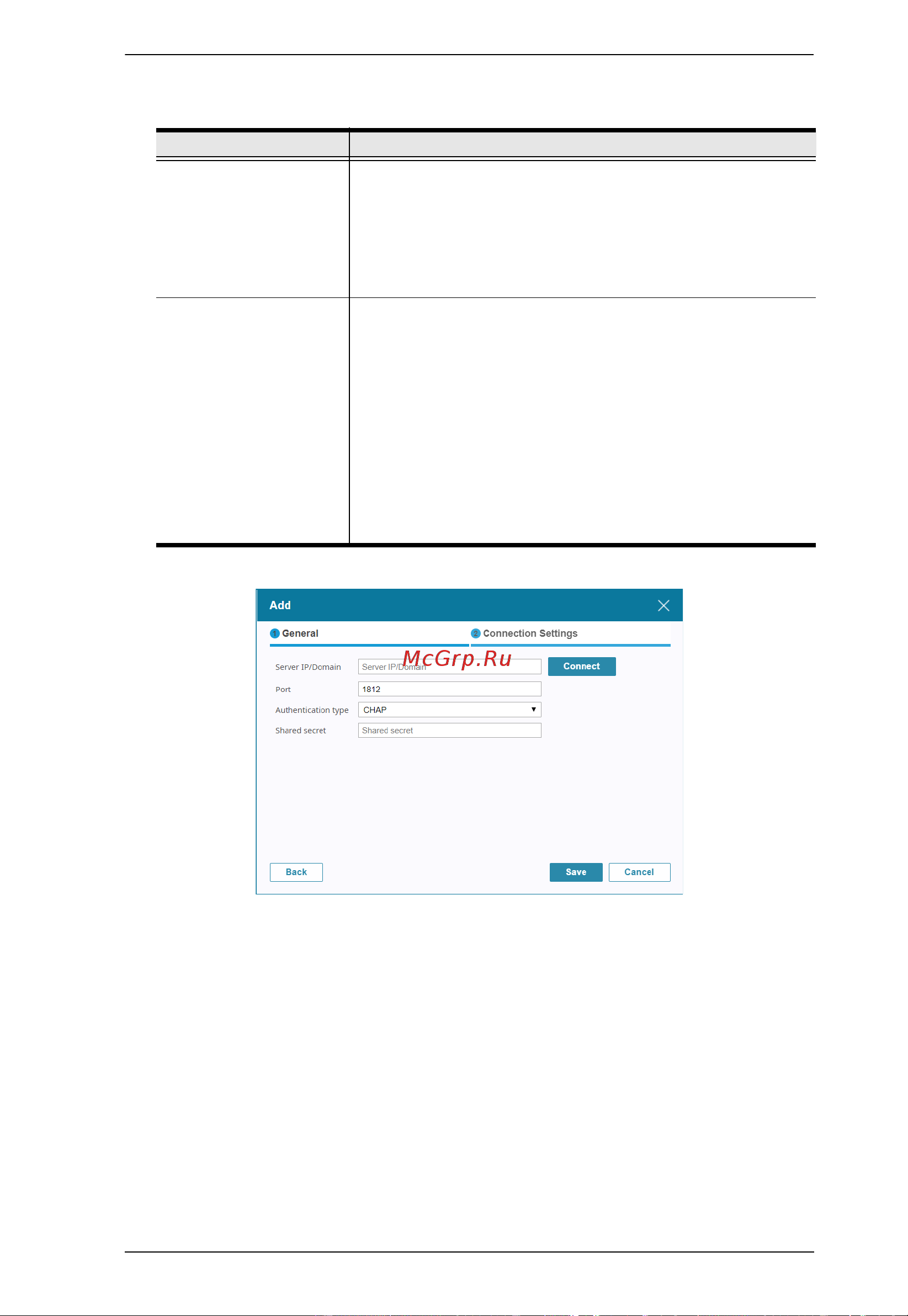

Chapter 6. User Accounts
167
4. RADIUS and TACACS+
5. Windows NT Domain
Get the information for the Domain Name from the service administrator.
For example settings see NT Domain Settings Example, page 308.
Heading Information
Connection Settings Get the information for these fields from the service admin-
istrator. The default port for RADIUS is 1812 and
TACACS+ is 49, but check with the service administrator
to see if it may be something else. For example settings
see RADIUS Settings Example, page 304 and TACACS+
Settings Example, page 306.
Authentication Settings Get the information for these fields from the service admin-
istrator. For example settings see RADIUS Settings Exam-
ple, page 304 and TACACS+ Settings Example,
page 306.
1. Use the drop-down menu to select the Authentication
type your RADIUS/TACACS+ server is configured for.
2. In the Shared Secret field, key in the character string
that you use for authentication with the RADIUS server.
3. Key the shared secret in again in the Confirm Shared
Secret field.
