Aten CC2000 3.0 [148/353] Backup configuration

CC2000 User Manual

134

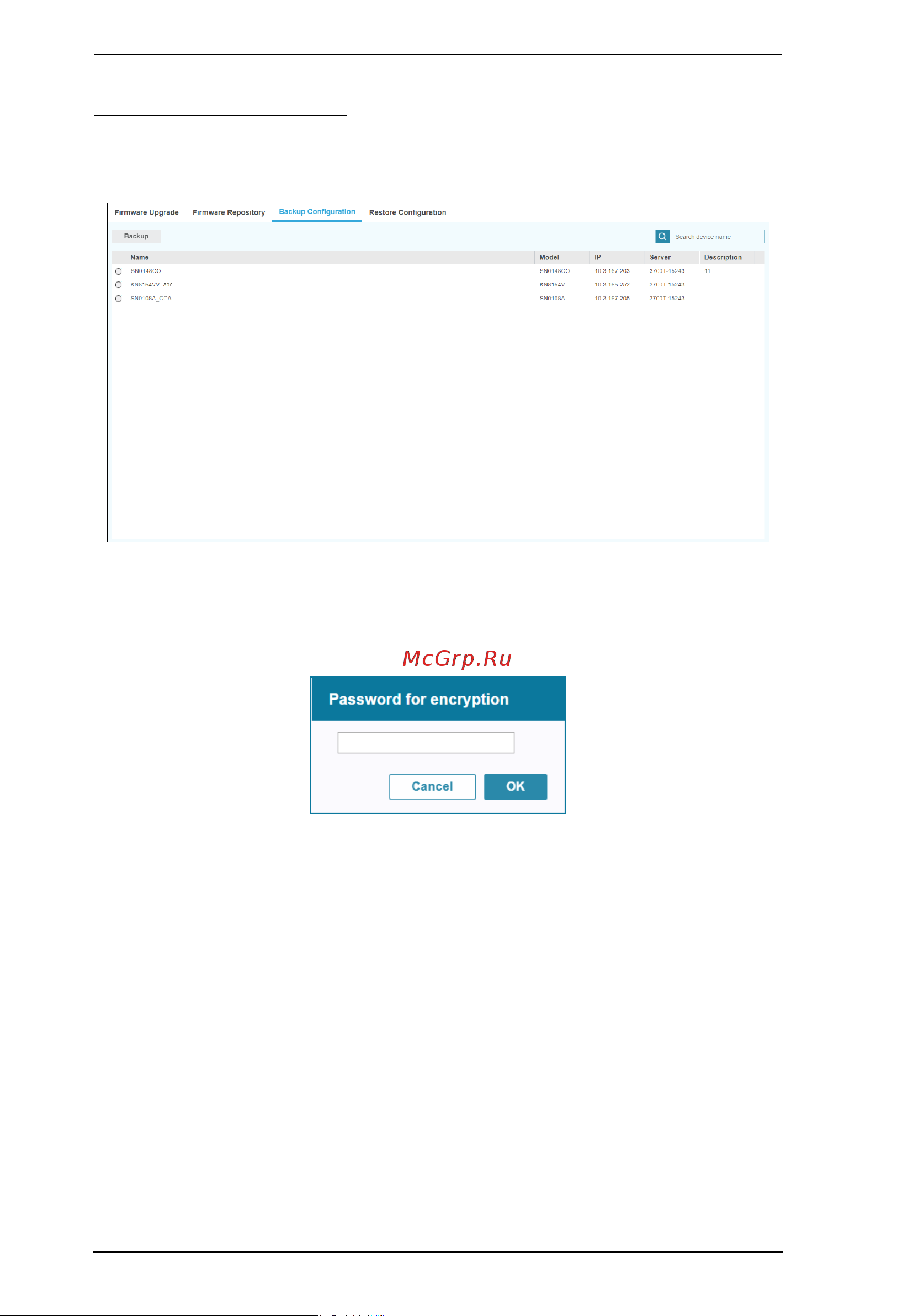

Backup Configuration

This tab will show the devices currently added to CC2000 and their

information in the table.

To backup a device’s configuration, select the device and click Backup.

The system will ask if you would like to enter a password for encryption

purpose.

Click OK to backup the configuration.
