Chapter 8. Logs
249

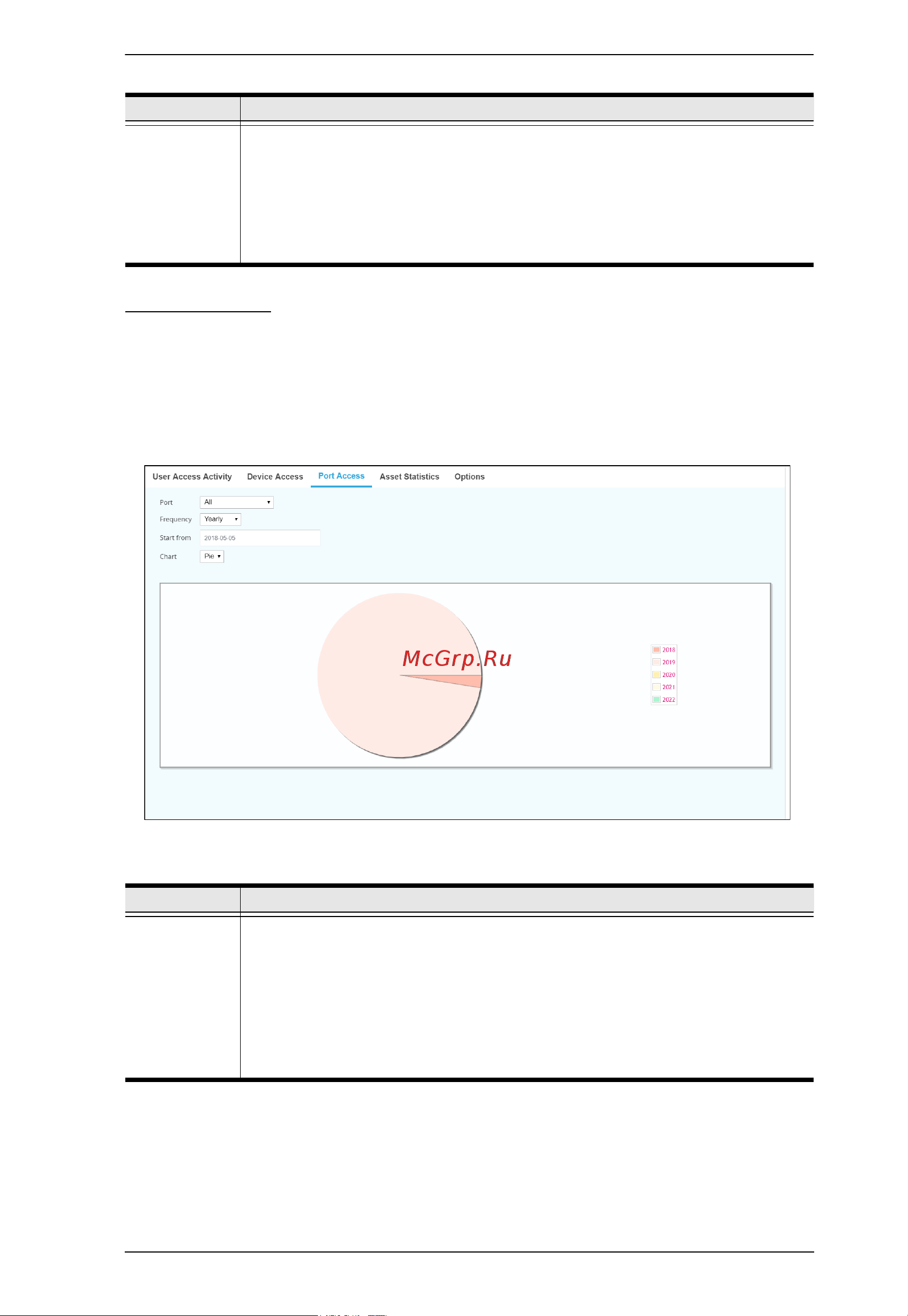

Port Access
The Port Access page provides the statistics for Port Access.
Fill in the fields from the main panel to build and display either a pie or bar
chart, or both, according to the parameters set. The Port Access page looks
similar to the one below:
The meanings of each fields are described in the table below:
Chart Select the type of chart you would like to use to display the information:
Pie: Shows a round chart divided into the time period selected.
Bar: Shows individual bars in a graph divided into the time periods
selected.
All: Displays both a pie and bar chart.
Item Description
Port Select All, Top 10 port, or a specific port that you want to display statics
for. This will display a graph with the number of times the port(s) was
accessed, according to the Frequency you select.
Top 10 port: Display the stats of the top 10 ports.
The numbers displayed with each chart color show the number of times
the port was accessed (on that day/week/month/quarter/year) and its
usage percentage.
Item Description
