Aten CC2000 3.0 [158/353] Device sync

CC2000 User Manual

144

Device Sync

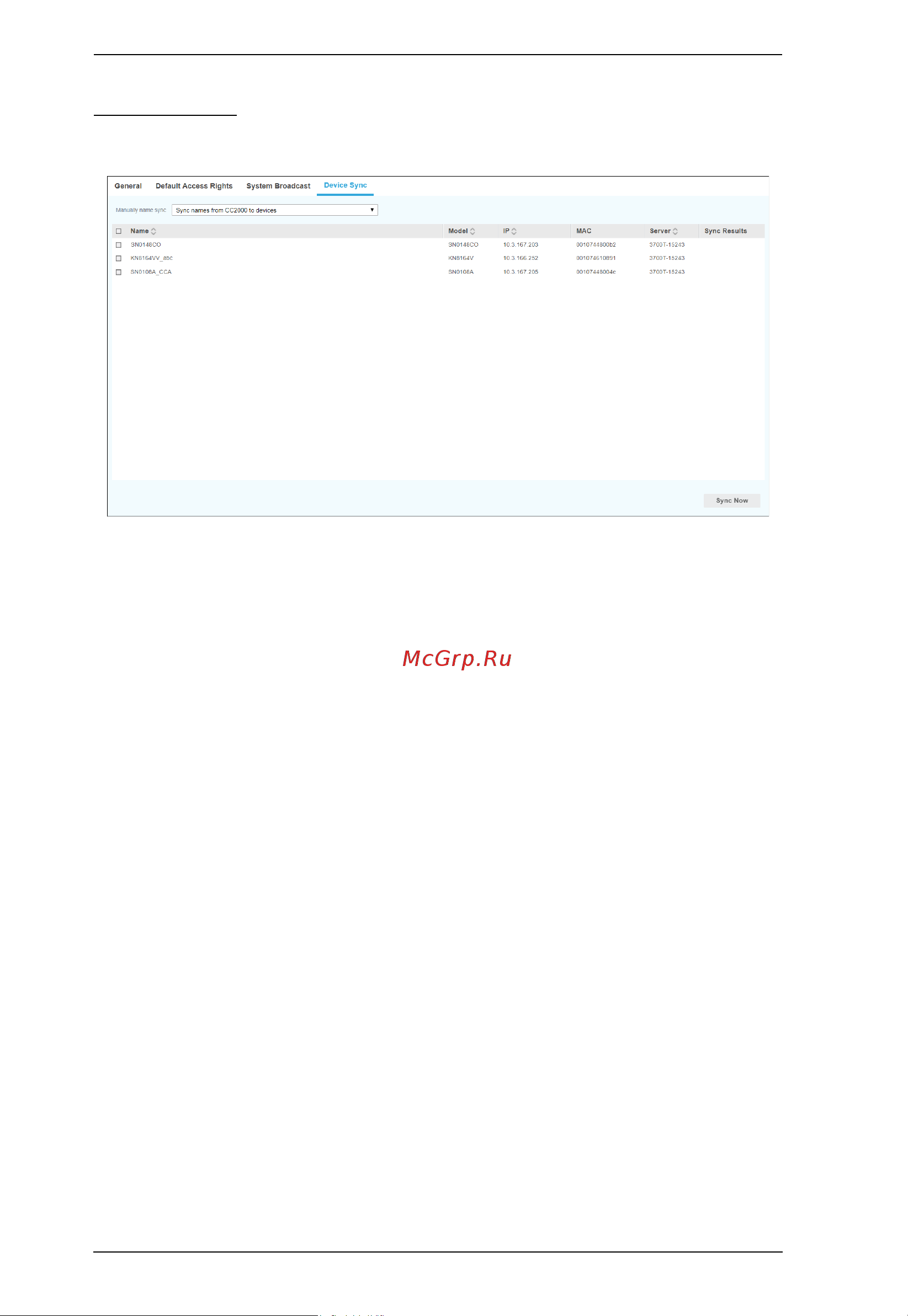

The Device Sync tab is as shown below:

For device name changes, use this tab to manually sync the names between the

devices and the CC2000.

Select Sync names from CC2000 to devices or Sync names from devices to

CC2000.

Select the device(s) you wish to sync with by checking the checkbox(es).

Click Sync Now.
