Chapter 7. System
187
Note: Make sure all the fields are filled in correctly so the system can
successfully save your configurations.
SNMP Manager

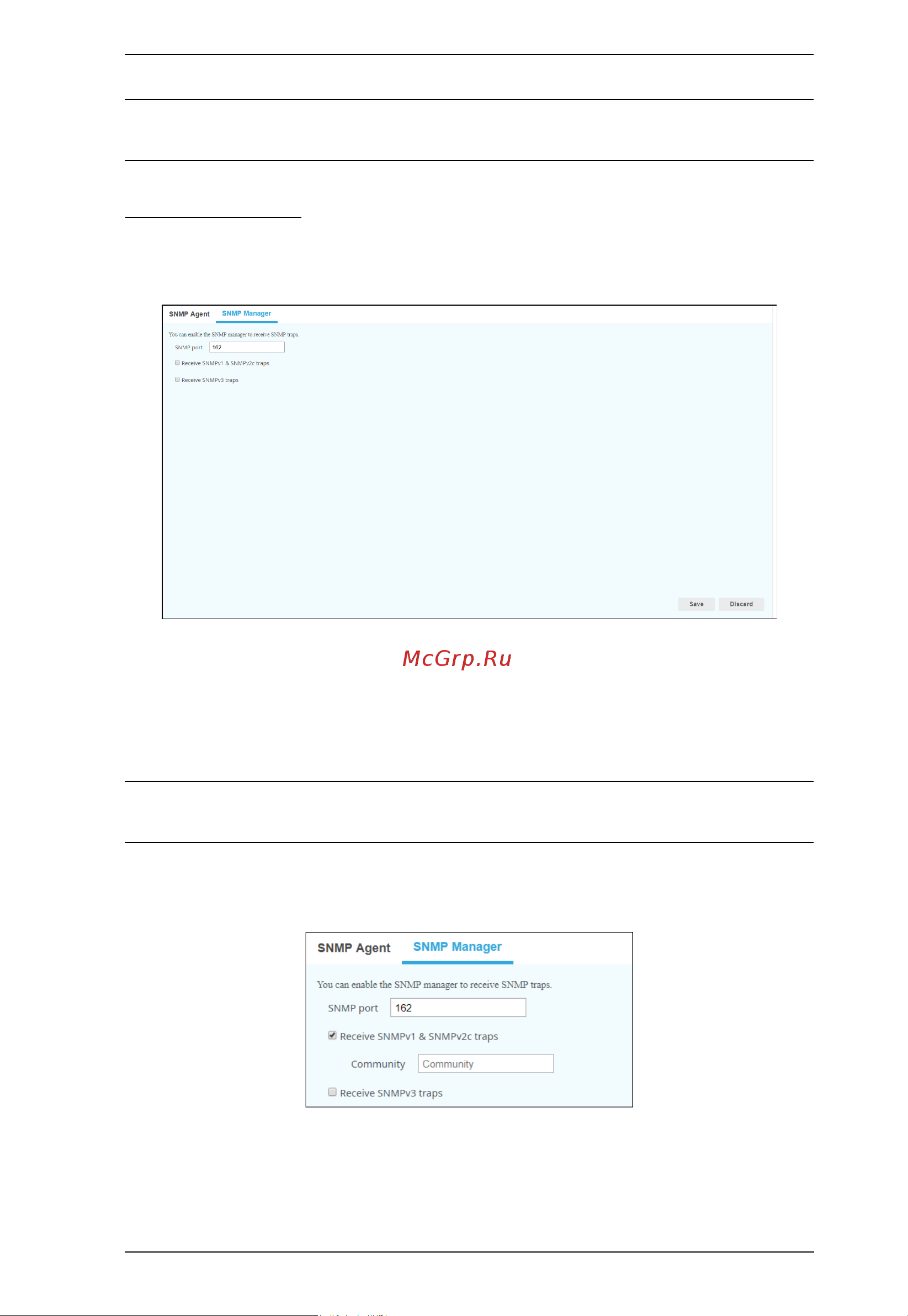

The SNMP Manager page lets you set the CC2000’s management stations to
receive notifications of SNMP trap events, as detailed below:
To set the SMNP managers, do the following:
1. In the SNMP port field, key in the service port number(s) of the
computer(s) that will receive notifications. The valid port range is 1–
65535. The default port is 162.
Note: Make sure that the port number you specify here matches the port
number used by the SNMP agent computer.
2. For SNMPv1 & SNMPv2c, check the Receive SNMPv1 & SNMPv2c
traps checkbox and a community field will appear.
3. Key in the community value(s) for the SNMP version.
