CC2000 User Manual
80

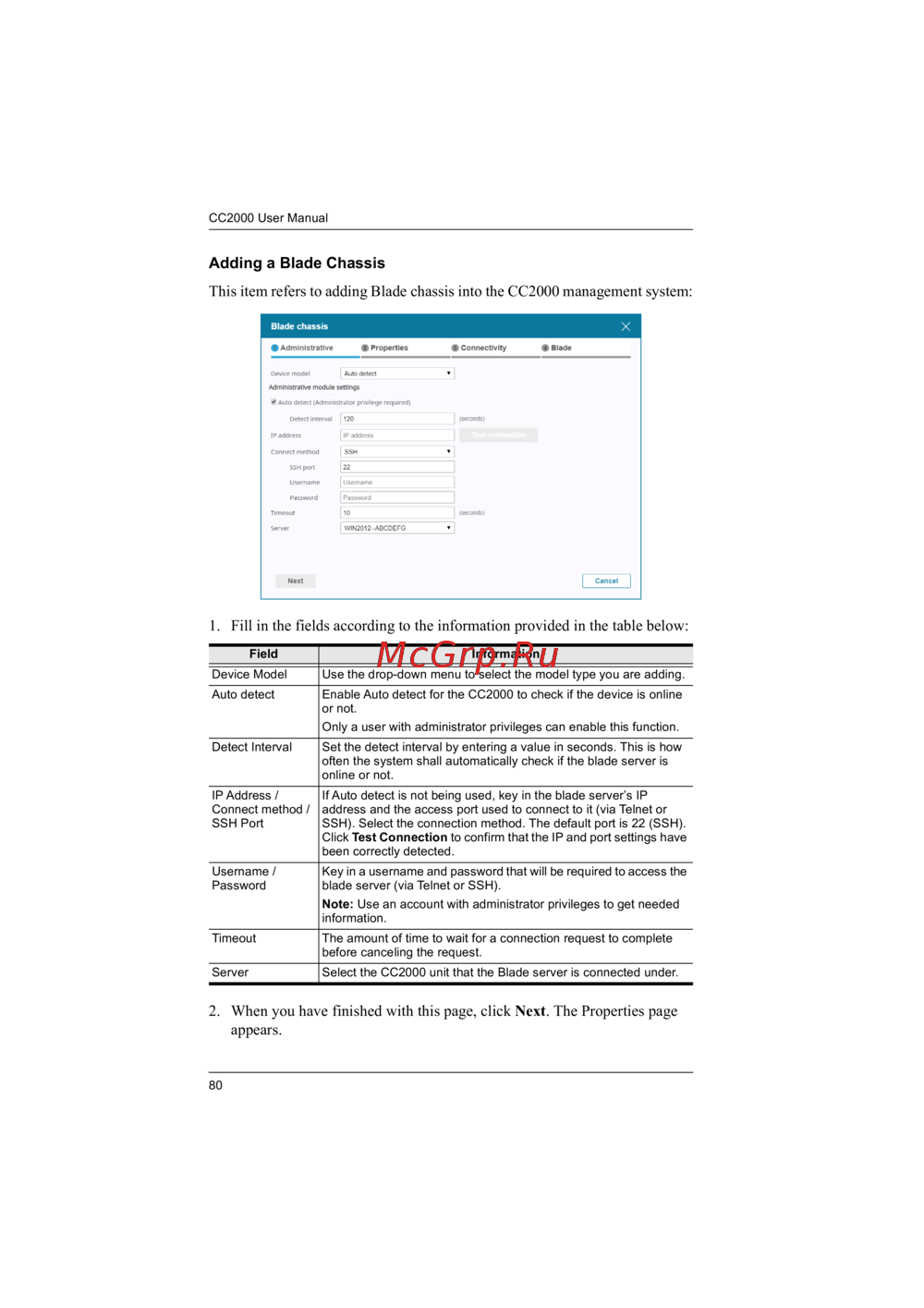

Adding a Blade Chassis
This item refers to adding Blade chassis into the CC2000 management system:
1. Fill in the fields according to the information provided in the table below:
2. When you have finished with this page, click Next. The Properties page
appears.
Field Information
Device Model Use the drop-down menu to select the model type you are adding.
Auto detect Enable Auto detect for the CC2000 to check if the device is online
or not.
Only a user with administrator privileges can enable this function.
Detect Interval Set the detect interval by entering a value in seconds. This is how
often the system shall automatically check if the blade server is
online or not.
IP Address /
Connect method /
SSH Port
If Auto detect is not being used, key in the blade server’s IP
address and the access port used to connect to it (via Telnet or
SSH). Select the connection method. The default port is 22 (SSH).
Click Test Connection to confirm that the IP and port settings have
been correctly detected.
Username /
Password
Key in a username and password that will be required to access the
blade server (via Telnet or SSH).
Note: Use an account with administrator privileges to get needed
information.
Timeout The amount of time to wait for a connection request to complete
before canceling the request.
Server Select the CC2000 unit that the Blade server is connected under.
