Aten CC2000 3.0 [174/353] Domain groups tab

CC2000 User Manual

160

Domain Groups tab

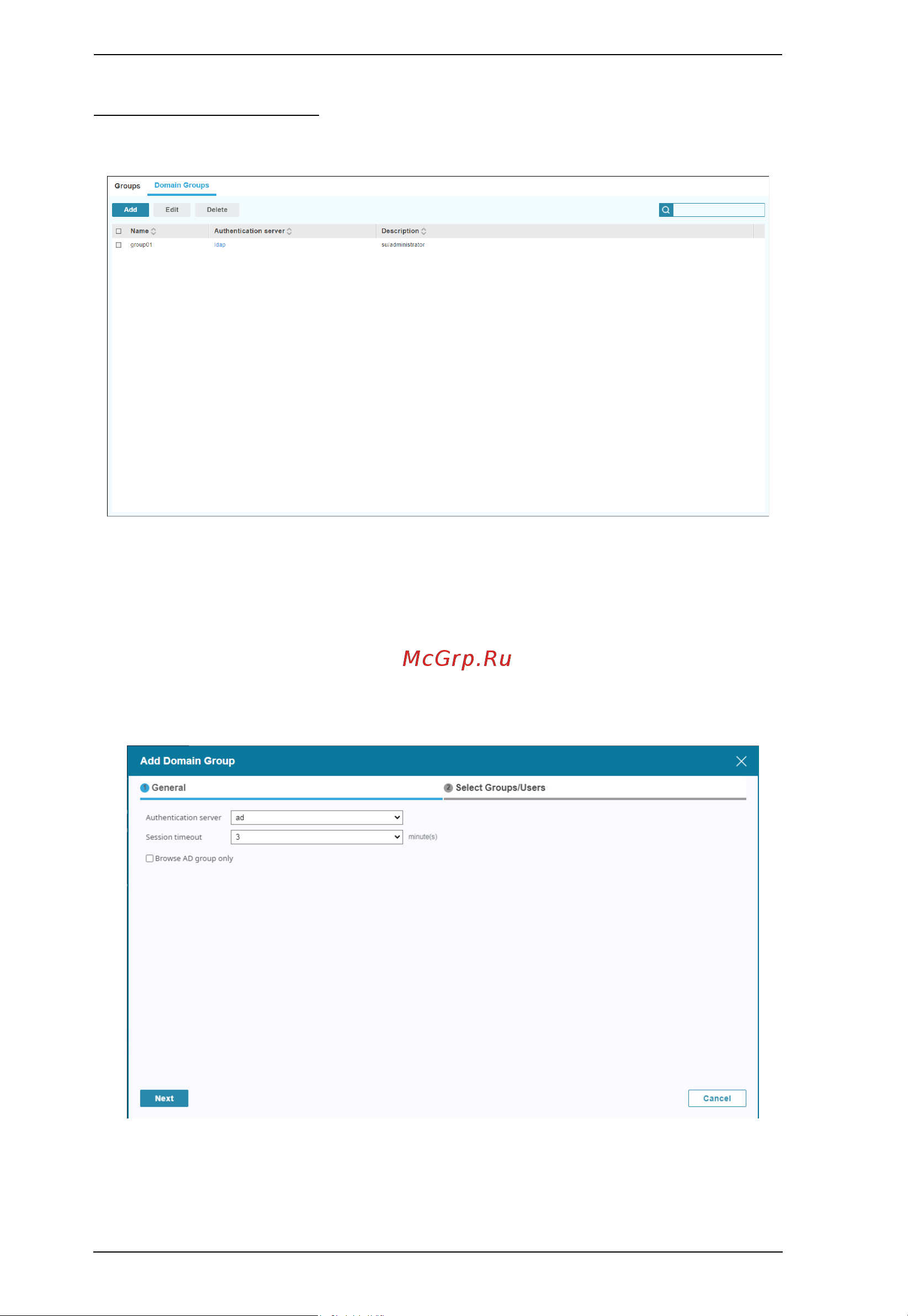

The Domain Groups tab is shown below:

You must have an external authentication service before you can configure this

page. Refer to Add Authentication Services on page 163 on how to add

authentication service.

Add Domain Group

1. Click Add for the Add domain group pop-up window:

2. Select the Authentication server and Session timeout by clicking and

selecting from their corresponding drop-down menu.
