Chapter 6. User Accounts

161

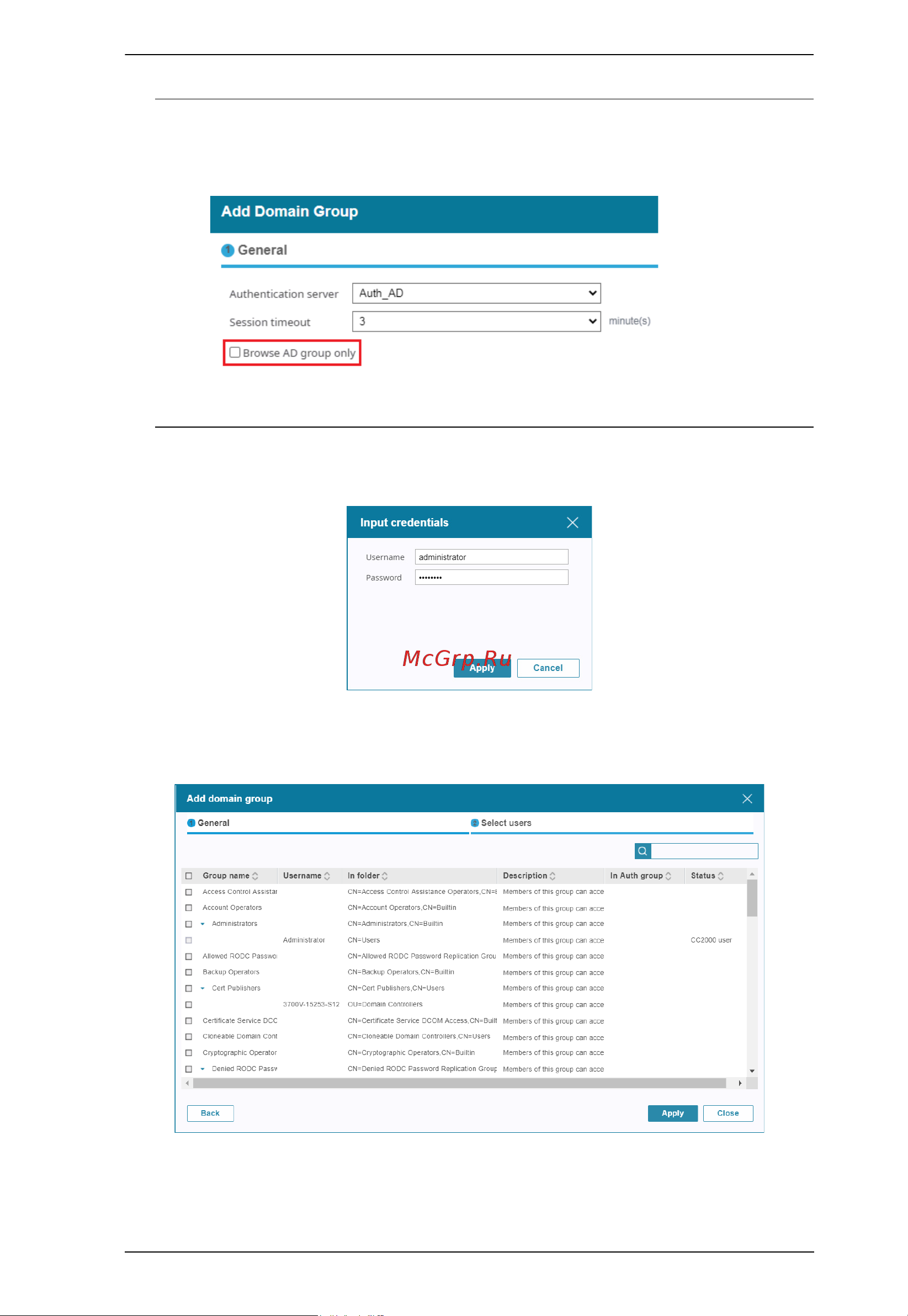

Note:When AD Server is selected as your authentication server, you can

optionally check Browse AD group only to only browse for AD

groups and omit individual AD users.

3. Click Next. Where necessary, the server may prompt you for credential

input. An example is shown:

4. After entering the credentials, click Apply. You will be taken to the Select

users page.

5. Check the group(s) and click Apply.
