Aten CC2000 3.0 [61/353] Events

Chapter 4. Dashboard and Basic Operation

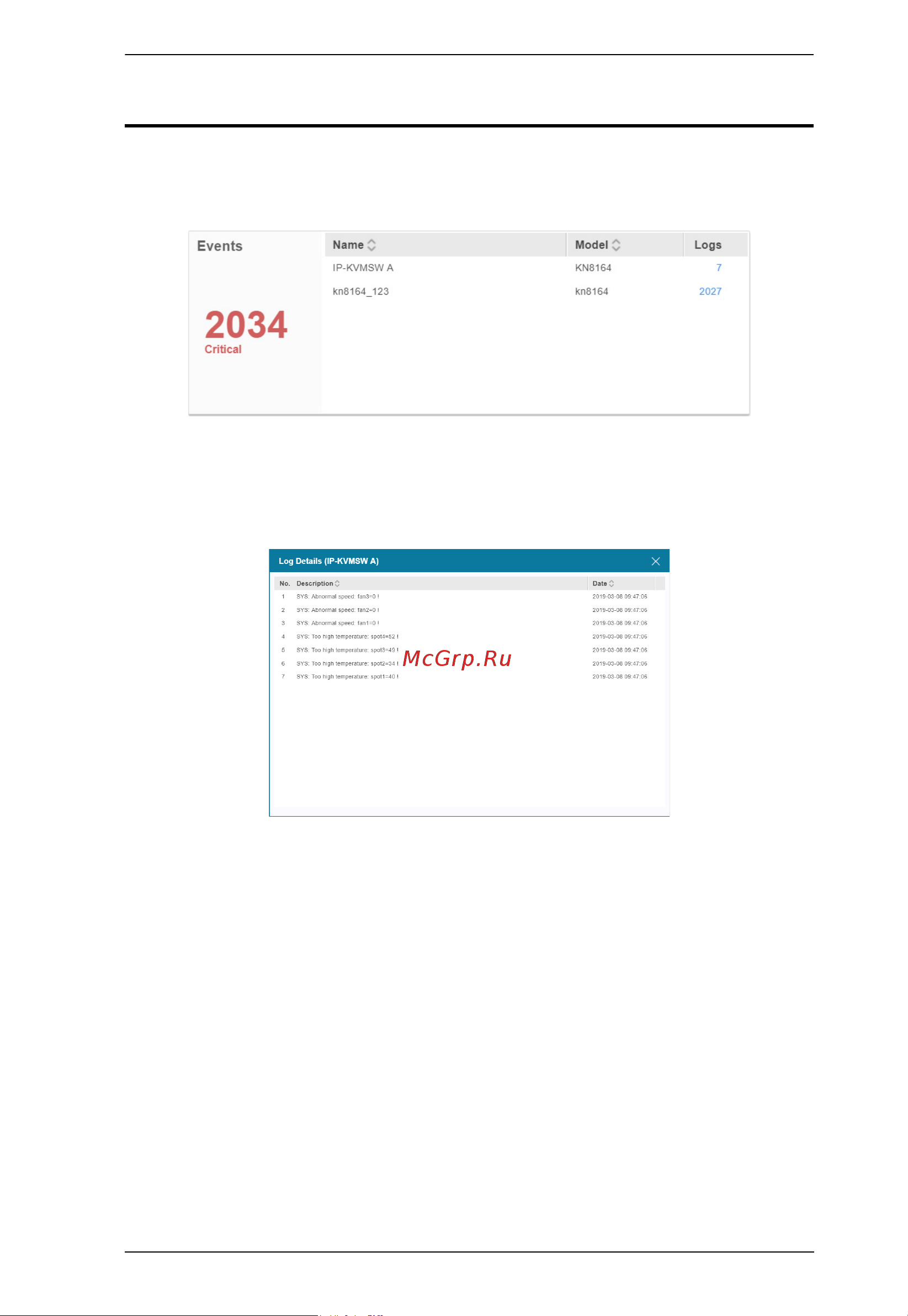

Events

The system will collect all the critical device logs of the past 3 months and

display them in this panel.

The number on the left is the total number of critical logs collected.

Click the number in the last entry column for the logs of a particular device. A

window will pop-up displaying the detailed logs. An example is shown below:
